- Page 1 User Manual DM456AI 2-phase Speed Control Stepper Driver ©2022 All Rights Reserved Address:15-4, #799 Hushan Road, Jiangning, Nanjing, China Tel: 0086-2587156578 Web: www.omc-stepperonline.com Sales:sales@stepperonline.com Support: technical@stepperonline.com...

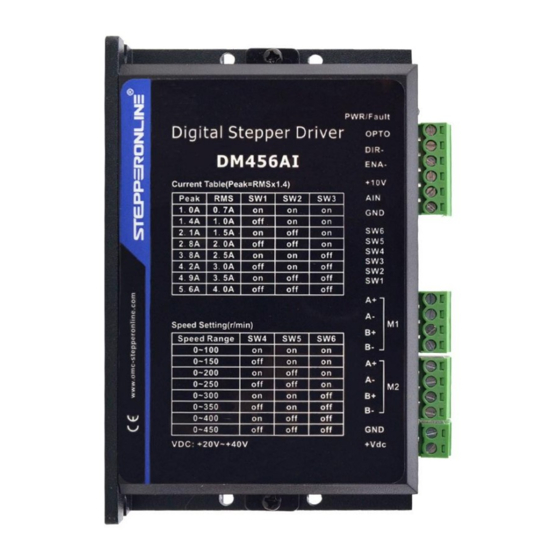

- Page 2 Stepper drive with speed control DM456AI easy manual 2-phase Speed Control Stepper Drive 20-40VDC, 1.0-5.6A peak current, 2-axis motor control,0-10V analog input DM456AI Size (unit: mm) Preparation 24VDC or 36VDC power supply Command source: Simple switch signal, or I/O signal ...
- Page 3 0 - 10V Analog Control Connection DM456AI has three wiring methods, Figure 1 is directly connected to the analog output of the controller, Figure 2 is external potentiometer speed regulation. Figure 3 indicates that if only a fixed speed is required and the drive dials exactly this speed, the AIN can be directly shorted to +10V without a potentiometer.
