Summary of Contents for BIC Z Series
- Page 1 BIC Series Z Turntables, Owner's Manual, Model 20Z.pdf/2 Exported from Wikisource on August 10, 2022...

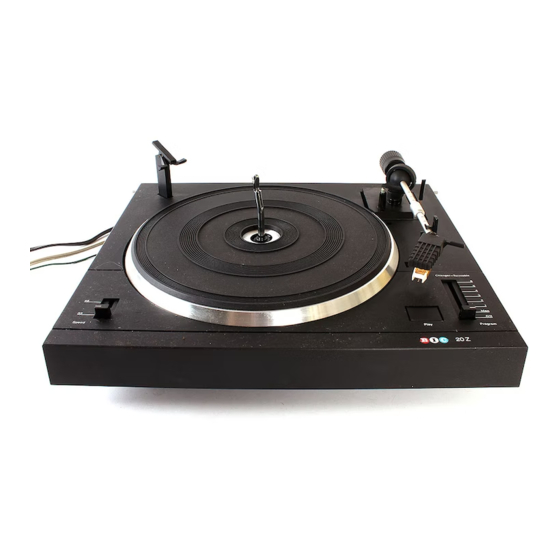

- Page 2 Features of B·I·C Model 20Z Changer Turntable...
- Page 3 1. Play button — activates all turntable functions. 2. Program — selects manual or automatic operation, shut-off and number of plays. 3. Tonearm finger lift — designed for positive, secure manual handling of tonearm. 4. Cartridge shell retaining screw — locks shell firmly in place.
- Page 4 17. Speed selector — shifts drive belt to 33 1/3 rpm or 45 rpm play. 18. Suspension mounts — correlated to the mass of the turntable assembly for maximum isolation from external shock in all planes. (Not shown) Dust Cover Installation If not factory installed, thread the hinge pin into the pilot hole located on each side, DO NOT OVER TIGHTEN.
- Page 7 About this digital edition This e-book comes from the online library Wikisource This multilingual digital library, built by volunteers, is committed to developing a free accessible collection of publications of every kind: novels, poems, magazines, letters... We distribute our books for free, starting from works not copyrighted or published under a free license.
- Page 8 ↑ https://en.wikisource.org/wiki/Wikisource:Scriptorium...
