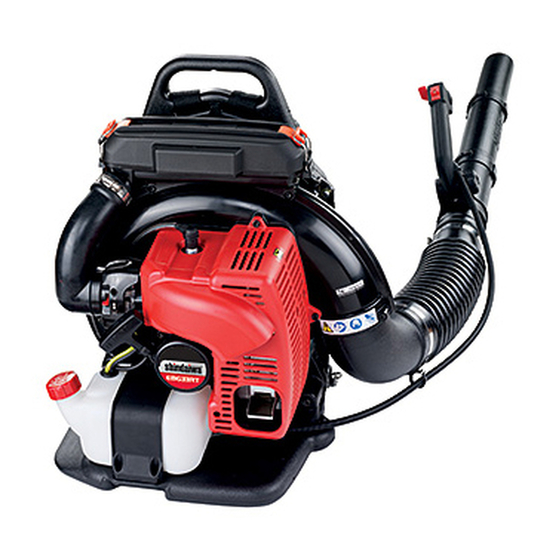

Power Blower
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
X7531124908
© 04/22 ECHO Incorporated
Operator's
Manual
EB633RT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB633RT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shindaiwa EB633RT

Summary of Contents for Shindaiwa EB633RT

  • Page 1 Operator’s Manual EB633RT Power Blower The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS EB633RT TABLE OF CONTENTS Introduction ....................3 Servicing Information .................. 3 Parts and Serial Number..............3 Service ....................4 Consumer Product Support ..............4 Product Registration ................4 Additional Literature ................4 Safety ......................5 Manual Safety Symbols and Important Information ......5 International Symbols ................

  • Page 3: Introduction

    SERVICING INFORMATION Parts and Serial Number Genuine Shindaiwa Parts and Assemblies for your Shindaiwa products are available only from an Authorized Shindaiwa Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you.

  • Page 4: Service

    Service Service of this product during the warranty period must be performed by an Authorized Shindaiwa Service Dealer. For the name and address of the Authorized Shindaiwa Service Dealer nearest you, ask your retailer or call: 1-877-986-7783. Dealer information is also available on www.shindaiwa- usa.com.

  • Page 5: Safety

    EB633RT SAFETY SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.

  • Page 6: International Symbols

    SAFETY EB633RT International Symbols Symbol Description Symbol Description Read and Carburetor Understand the Adjustment - Operator’s High Speed Manual Mixture Wear Eye, Ear Carburetor and Head Adjustment - Idle Protection Speed Carburetor Wear Hand Adjustment - Low Protection Speed Mixture...
  • Page 7 EB633RT SAFETY Symbol Description Symbol Description Choke Control Wear Slip “RUN” Position Resistant (Choke Open) Footwear Beware of Thrown Objects Keep Bystanders and Helpers Away 15 m (50 ft.). Note: Not all symbols will appear on your unit. X7531124908 © 04/22 ECHO Incorporated...

  • Page 8: Personal Condition And Safety Equipment

    SAFETY EB633RT Personal Condition and Safety Equipment Cancer and Reproductive Harm www.P65Warnings.ca.gov The muffler or catalytic muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury might occur. Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed.
  • Page 9 EB633RT SAFETY Hand Protection Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles. Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands. Hearing and Ear Protection ECHO recommends wearing personal protective equipment whenever unit is used.
  • Page 10 SAFETY EB633RT The components of this machine generate an electromagnetic field during operation, which can interfere with some pacemakers. To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine.
  • Page 11 EB633RT SAFETY Repetitive Stress Injuries (RSI) It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).

  • Page 12: Equipment

    SAFETY EB633RT Read the Manual • Provide all users of this equipment with literature for instructions on safe operation. Clear the Work Area • Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 15 m (50 ft.) radius; outside the 15 m (50 ft.) zone, there is still a risk of injury from thrown objects.
  • Page 13 EB633RT SAFETY Check unit for loose/missing nuts, bolts, and screws. ◆ Tighten and/or replace as needed. Do not use blower if any part is missing or damaged. ◆ Have repairs done only by an authorized service dealer. ◆ Moving parts can amputate fingers or cause severe injuries.

  • Page 14: Emission Control (Exhaust & Evaporative)

    EMISSION CONTROL EB633RT EMISSION CONTROL (EXHAUST & EVAPORATIVE) CARB and EPA Emissions Control Information The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is “B”, “C”, “K”, or “T”, the emission...

  • Page 15: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your Shindaiwa dealer. The safety decal is for example only. Your label may appear slightly different.

  • Page 16: Contents

    Throttle Handle Choke Purge Bulb CONTENTS After opening the carton, check for damage. Immediately notify your retailer or Shindaiwa Dealer of damaged or missing parts. Use the contents list to check for missing parts. Power Head Flex Pipe Pipe with Swivel...

  • Page 17: Assembly

    EB633RT ASSEMBLY ASSEMBLY Never perform maintenance or assembly procedures with engine running or serious personal injury may result. Install Blower Pipes Assemble clamps (A) and (G) onto both ends of flexible pipe (B). Note: Clamp with cable guide loop (G) fits elbow end of flexible pipe.

  • Page 18: Operation

    OPERATION EB633RT Assemble straight pipe (K) onto swivel pipe, until you feel light resistance. Do not force connection. Hold swivel pipe and turn straight pipe clockwise, engaging positive locking channels, until connection is firm. Do not force connection. Assemble straight pipe with decal (J) to straight pipe as in step 7.

  • Page 19: Fuel

    Fuel Diesel fuels and alternative fuels, such as E15 (15% ethanol), E85 (85% ethanol) or any fuels not meeting Shindaiwa requirements are NOT approved for use in Shindaiwa 2-stroke or Hybrid 4-stroke gasoline engines. Use of diesel or alternative...
  • Page 20 NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A 2-stroke engine oil, such as Shindaiwa branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used.
  • Page 21 EB633RT OPERATION Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. Use an approved fuel container. ◆ DO NOT smoke near fuel. ◆ DO NOT allow flames or sparks near fuel.

  • Page 22: Starting Cold Engine

    OPERATION EB633RT Spilled fuel is a leading cause of hydrocarbon emissions. Some states may require the use of automatic fuel shut-off containers to reduce fuel spillage. After use • Empty the fuel tank prior to storing the unit. Return unused fuel to an approved fuel storage container.

  • Page 23: Starting Warm Engine

    EB633RT OPERATION Choke Move choke (C) up to COLD START ( ) position. Purge Bulb Pump purge bulb (D) until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an additional 4 or 5 times.

  • Page 24: Stopping Engine

    If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your Shindaiwa dealer repair stop switch before using unit again. Operating Blower Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas.
  • Page 25 EB633RT OPERATION Use reduced speed only when performing light-duty tasks or to comply with local noise regulations. Continuous low speed operation may allow fuel/oil residue to build-up on the piston and cause rapid build-up of carbon on the spark arrester screen, resulting in overheating and engine damage.

  • Page 26: Maintenance

    MAINTENANCE EB633RT MAINTENANCE Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.

  • Page 27: Maintenance Intervals

    EB633RT MAINTENANCE Maintenance Intervals REQUIRED MAINTENANCE COMPONENT/SYSTEM SKILL PROCEDURE LEVEL Daily or Before Use Air Filter Inspect/Clean* Choke Shutter Inspect/Clean* Fuel System Inspect Cooling System Inspect/Clean Recoil Starter Rope Inspect/Clean* Screws/Nuts/Bolts Inspect/Tighten/Replace* Every Refuel Fuel System Inspect 3 Months Air Filter...

  • Page 28: Air Filter

    MAINTENANCE EB633RT Air Filter Level 1. Parts required: Tune-Up Kit. Close choke (COLD START ] position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area. Remove air filter cover (A).

  • Page 29: Spark Plug

    EB633RT MAINTENANCE Pull the fuel filter from the tank. Do not remove the wire coil clamp to remove the fuel filter. Pinch the fuel filter with the fingers on one hand and the fuel line with the other hand. Pull and twist slightly to separate.

  • Page 30: Cooling System

    MAINTENANCE EB633RT Cooling System Level 2. To maintain proper engine operating temperatures, cooling air must pass freely through the cylinder fin area. This flow of air carries combustion heat away from the engine. Overheating and engine seizure can occur when: •...

  • Page 31: Exhaust System

    EB633RT MAINTENANCE Exhaust System Spark Arrester Screen Level 2. Parts required: Spark Arrester Screen, Gasket. Carbon deposits in muffler will cause a drop in engine output and overheating. Spark arrester screen must be checked periodically. Remove spark plug lead from spark plug, and remove engine cover.

  • Page 32: Carburetor Adjustment

    MAINTENANCE EB633RT Use a wood or plastic scraping tool to clean deposits from cylinder exhaust port. Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when cleaning the exhaust port. Do not allow carbon particles to enter the cylinder.
  • Page 33 Note: Every unit is run at the factory and the carburetor is set in compliance with emission regulations. Carburetor adjustments, other than idle speed, must be performed by an authorized Shindaiwa dealer. Before adjustment make sure that: • Air filter is clean and properly installed.

  • Page 34: Troubleshooting

    TROUBLESHOOTING EB633RT TROUBLESHOOTING Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result. ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status...

  • Page 35: Storage

    EB633RT STORAGE ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy Air filter Air filter dirty Normal wear Clean or replace Contaminants Fuel filter Replace filter or Fuel filter or residue in dirty replace fuel fuel Engine runs, but Fuel vent...

  • Page 36: Specifications

    SPECIFICATIONS EB633RT Store unit in a dry, dust free place, out of the reach of children. Place the stop switch or lever in the “OFF” position. Remove accumulation of grease, oil, dirt and debris from exterior of unit. Perform all periodic lubrication and services that are required.
  • Page 37 EB633RT SPECIFICATIONS MODEL EB633RT Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% Gasoline MTBE. Do not use alternative fuels such as E-15 or E-85. ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345- FD, two-stroke, air-cooled engine oil.

  • Page 38: Product Registration

    PRODUCT REGISTRATION Thank you for choosing Shindaiwa Power Equipment Please go to http://www.shindaiwa-usa.com to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 39 EB633RT PRODUCT REGISTRATION X7531124908 © 04/22 ECHO Incorporated...
  • Page 40 P39213001327 - P39213999999 P54213001001 - P54213999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 -usa www.shindaiwa .com...
