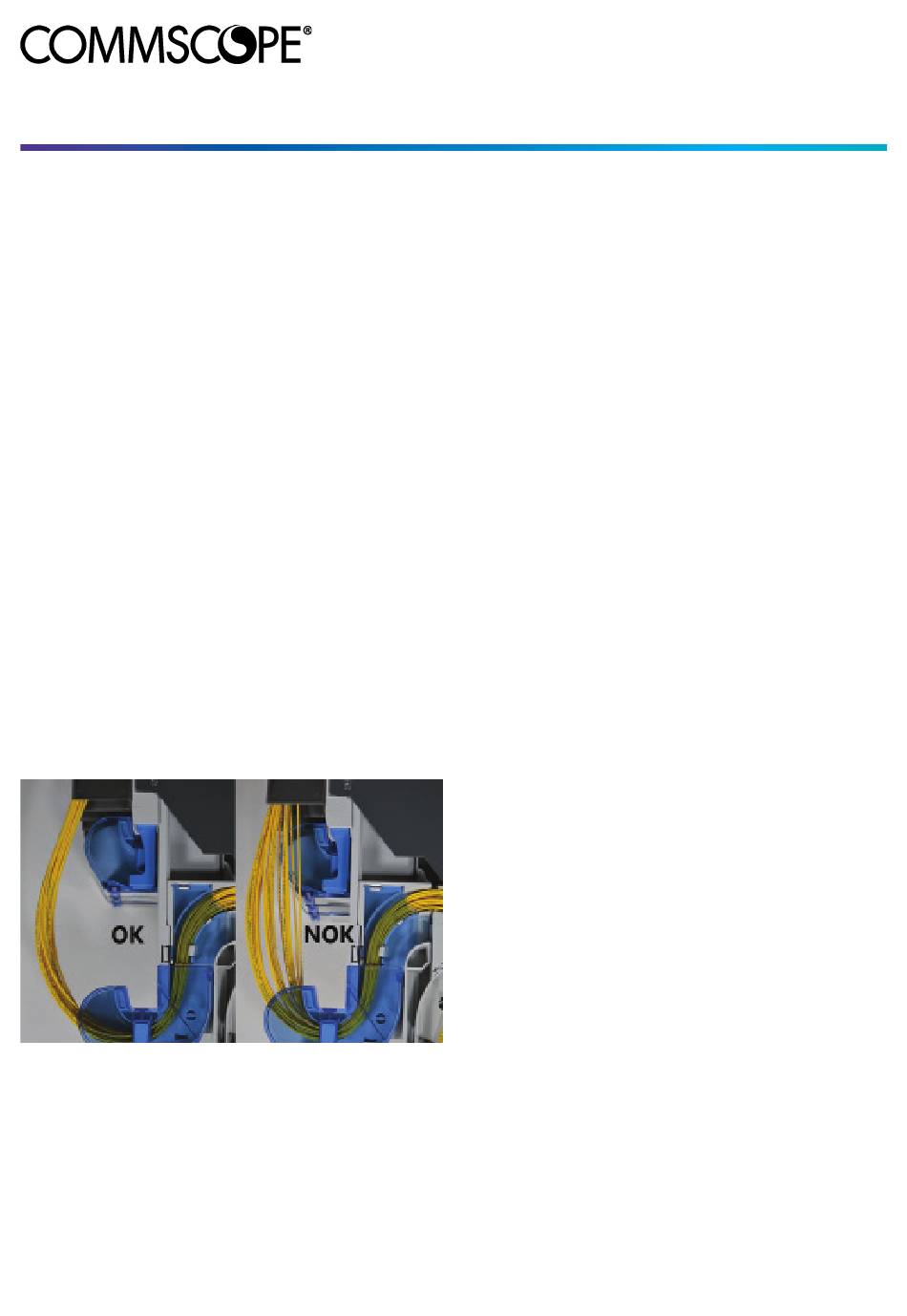

TC-40161-IP-EN
Rev A, March 2019
www.commscope.com
FACT NG4 CHASSIS FOR MODULES & ADAPTER PACKS
Contents
1.
General product information ................................................ 1
2.
Warnings and caution ............................................................ 1
3.
Product image......................................................................... 2
4.
Kit content ............................................................................... 2
5.
Mounting FACT chassis in rack ............................................. 2
5.1.
Mounting FACT chassis ............................................................................. 2
5.2.
Dismounting FACT chassis ........................................................................ 2
1.
General product information
The universal FACT NG4 chassis (FACT-xENG4) for modules & adapter packs supports the NG4-access connectivity
packs and modules that easily snap in the chassis. It accommodates SC, LC and MPO adapter packs, MPO-modules
(MPO to LC, or MPO to SC), Cabled modules (CMOD) and Value-added modules (VAM).
2.
Warnings and caution
•
Fiber optic cables may be damaged if bent or curved to a radius that is less than the recommended minimum
bend radius. Always observe the recommended bend radius limit when installing fiber optic cables and patch
cords.
•
Exposure to laser radiation can seriously damage the retina of the eye. Do not look into the ends of any optical
fiber. Do not assume the laser power is turned off or that the fiber is disconnected at the other end.
•
Pay attention to the routing of the patch cords. These should move/hang freely, where they leave the bend control.
If you see that there is tension occuring on the patch cords, please reroute these.
860648849
Rev. A
Installation Instructions
6.
Installation of the modules ................................................... 3
7.
Routing the patch cords (modules) ..................................... 5
8.
Installation of the adapter packs...........................................7
9.
Routing the patch cords (adapter packs) ............................ 9
10.
Trademarks............................................................................11
11.
Contact Information..............................................................11
© 2018 CommScope, Inc. All Rights Reserved
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for CommScope FACT NG4
Summary of Contents for CommScope FACT NG4
-
Page 1: Table Of Contents
Dismounting FACT chassis ................ 2 General product information The universal FACT NG4 chassis (FACT-xENG4) for modules & adapter packs supports the NG4-access connectivity packs and modules that easily snap in the chassis. It accommodates SC, LC and MPO adapter packs, MPO-modules (MPO to LC, or MPO to SC), Cabled modules (CMOD) and Value-added modules (VAM). -
Page 2: Product Image
FACT chassis (by sliding them in ). 5.2.2. Pull the blue puller locks (make sure both sides -left & right- are in the unlocked position). Page 2 of 11 © 2018 CommScope, Inc. All Rights Reserved... -
Page 3: Installation Of The Modules
Align the module in on the side where the insert rotate the top tray to a 90° position. was removed, by placing it on top. 6.6. Align the module as illustrated. Don’t push it in yet. Page 3 of 11 © 2018 CommScope, Inc. All Rights Reserved... - Page 4 Align the module as illustrated. Don’t push it in yet. 6.11. Push in snapping feature number 4. 6.8. Push in snapping feature number 1. 6.12. Push in snapping feature number 5. 6.9. Push in snapping feature number 2. Page 4 of 11 © 2018 CommScope, Inc. All Rights Reserved...
-
Page 5: Routing The Patch Cords (Modules)
(on the backside of the bend control) as shown. 6.15. LC-MPO Module installed 7.2. The retaining feature can be opened (hinged back) if additional space is needed (optional). Page 5 of 11 © 2018 CommScope, Inc. All Rights Reserved... - Page 6 Use 6 patch cords per bend control for the VA Module. Clean the connectors before installing! 7.8. Route the patch cords to the back side of the FACT element. Page 6 of 11 © 2018 CommScope, Inc. All Rights Reserved...
-
Page 7: Installation Of The Adapter Packs
Installation of the Adapter Packs 7.11. Close the bend control cover (retaining feature down). 8.1. FACT element is provided with 2 trays (2 apapter packs per tray) per drawer. Page 7 of 11 © 2018 CommScope, Inc. All Rights Reserved... - Page 8 Align snapping feature number 2 and push it in. 8.3. Align the Adapter Packs. 8.7. Align snapping feature number 3 and push it in. 8.4. Make sure that features 1, 2 & 3 are aligned correct. Page 8 of 11 © 2018 CommScope, Inc. All Rights Reserved...
-
Page 9: Routing The Patch Cords (Adapter Packs)
The retaining feature can be opened (hinged back) if additional space is needed (optional). 8.10. MPO-MPO Adapter Packs installed. 9.3. Open the back lid by pushing the snap feature to the inside and then lifting the lid. Page 9 of 11 © 2018 CommScope, Inc. All Rights Reserved... - Page 10 9.6. Route the patch cords through the first bend as illustrated. Use 2 patch cords per bend control for the MPO- MPO Adapter Packs. Clean the connectors before installing! Page 10 of 11 © 2018 CommScope, Inc. All Rights Reserved...
-
Page 11: Trademarks
Contact information Visit our website or contact your local CommScope representative for more information. For technical assistance, customer service, or to report any missing/damaged parts, visit us at: http://www.commscope.com/SupportCenter This product may be covered by one or more U.S. patents or their foreign equivalents.
