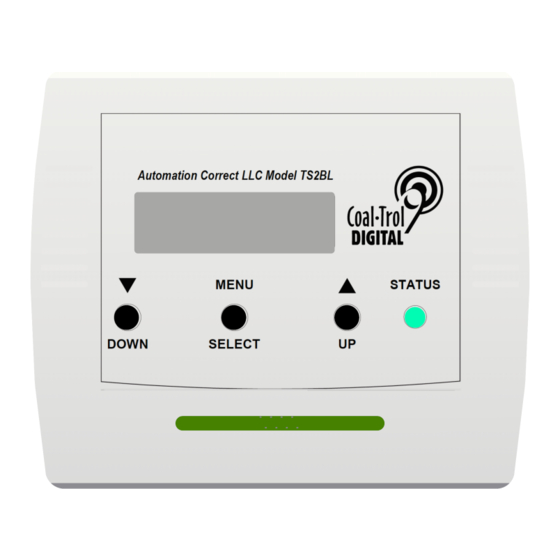

Coal-trol Digital™ TS2BL Thermostat
User Manual
© 2022 Automation Correct, LLC
The Coal-trol Digital™ system has
been specifically developed to
improve the performance and
convenience of your anthracite coal
stove. The TS2BL thermostat and
solid-state control module make this
possible.
An investment of a small amount of
time to review this manual will ensure
the proper performance of your
Coal-trol Digital™ system.
Features, compatibility and benefits of the TS2BL Thermostat:
● Fully compatible with Coal-trol TS2 Thermostat. Must be used with CM2-OEM, CM2-4,
and CM2-4-XX Control Modules.
● Custom backlit display for easy use and setup.
● Single Setpoint Mode (default, super easy to use), TS2 Mode (two setbacks), TS2ES
Mode (formerly Energy Star - 4 setbacks Weekdays, 4 setbacks Weekends). You
choose.
● New - power loss timer recovers fire or prevents fuel feed when fire is out after power
interruption.
● Variable speed convection fan speed - Automatic or manual control.
● New - two RJ45 connectors - choose behind wall or surface wiring.
● Standard on appliances by Leisure Line Stove and Hitzer Stoves.
● Use to upgrade control systems on Alaska, Keystoker, Reading, Harman (Magnum),
Triburn and other anthracite stoker stoves and furnaces.
MADE IN USA Automation Correct LLC • Syracuse NY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automation Correct Coal-trol Digital TS2BL
Summary of Contents for Automation Correct Coal-trol Digital TS2BL
- Page 1 ● Standard on appliances by Leisure Line Stove and Hitzer Stoves. ● Use to upgrade control systems on Alaska, Keystoker, Reading, Harman (Magnum), Triburn and other anthracite stoker stoves and furnaces. MADE IN USA Automation Correct LLC • Syracuse NY...
-
Page 2: Table Of Contents
Tri-burner Stoves Manual Fan Safe Threshold and Time Settings Where did HLF go? The Temperature Keeps Overshooting Way Above Setpoint Generator and Off-Grid Power Boiler, Biomass, Gasifier, and Other Heating Appliance Types Specifications TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 3: Welcome
Any switch integrated in your CM-OEM or CM2 control module only controls power to the motor outputs, not to the connected thermostat. TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 4: Safety And Warnings
WARNING: BYPASS OF MECHANICAL VENT SPILLAGE SWITCH (FUME SWITCH) OR BONNET TEMPERATURE LIMIT, IF INSTALLED IS DANGEROUS. OPERATION MAY CAUSE SERIOUS INJURY OR DEATH, DUE TO CO POISONING OR FIRE. FOR INDOOR USE ONLY TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 5: For Service Or Repair
If a defect is found within three years from the date of original installation of the product (whether or not actual use begins on that date) Automation Correct LLC will provide a new or remanufactured part, at our sole option, to replace any defective part, without charge for the part itself. -
Page 6: Locating And Mounting The Thermostat
The TS2BL connects to the Control Module on the appliance with a RJ45 wire. Choose either behind the wall wiring method or wall surface wiring method. Use the template included with your thermostat to assist in mounting. TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 7: Quickstart
This will prevent the Coal-trol system from dumping a hopper of coal into the ash pan after a power outage event that lasted long enough for the fire to have gone out. TS2BL: User Manual © 2022 Automation Correct, LLC... - Page 8 Coal-trol Digital system or other customized configuration; or if you wish to learn more about the capabilities and features of your new Coal-trol Digital TS2BL thermostat, please read on. TS2BL: User Manual...
-
Page 9: Recommended Settings By Stove Brand
Setpoint Modes and TS2 & TS2ES Compatibility As mentioned in the QuickStart section above, the Coal-trol Digital TS2BL thermostat comes with the Single Setpoint, or SSP, mode of operation pre-loaded from the factory. In this mode there is only one setpoint and it is adjustable directly from the round-robin screens by using the UP/DOWN buttons. -
Page 10: Power Outages
IDLE feed rate. Normal temperature control will not happen until you acknowledge the warning. Time is kept during the outage and will be adjusted automatically when power is restored, if using TS2 or ES mode. TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 11: Test Mode
While in the TEST mode cycle, the display will show what stage of the test is being run. These stages will auto-advance in a continuous cycle, changing every 10 seconds. TS2BL: User Manual © 2022 Automation Correct, LLC... - Page 12 Dual Stoker features in the TS2BL thermostat and to find out how TEST mode and its cycle stages when Dual Stoker mode is set. TS2BL: User Manual © 2022 Automation Correct, LLC...
-
Page 13: Menus
Displays the current stoker feed rate. That’s the end of the round-robin screens. If you use the UP/DOWN buttons while in the round-robin screens, you will be brought to the Change Setpoint screen. TS2BL: User Manual © 2022 Automation Correct, LLC... - Page 14 MENU button to acknowledge the condition and allow the control to start operating normally again. The round-robin screens will look like this when you’re in “SSP” (Single Setpoint) mode (default): These screens will look like this in “TS2” mode: And in “ES” mode: TS2BL: User Manual © 2022 Automation Correct, LLC...
-
Page 15: Quick Menu
To reach the menus described in the sections below you need to press and hold the MENU button. As you press and hold the menus will show up in sequence at roughly the number of TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 16: Feed
Entry point for setpoint programming sub-menu. Tap UP or Sub-menu DOWN to enter this sub-menu. See below for details on the items inside this sub-menu. Only shows in SPM mode “TS2” or “ES”, not in “SSP” (see ADVANCED menu section). TS2BL: User Manual © 2022 Automation Correct, LLC... - Page 17 CMT advanced menu setting is set to “D” (see ADVANCED menu section). “TEST” Test Mode This is the action item to enter the control module output TS2BL: User Manual © 2022 Automation Correct, LLC...
-
Page 18: Setpoint Programming
“TS2” SPM Mode If your control is in the “TS2” SPM mode, you will see these options: Screen Example Name Description “DAY Day Setpoint Use to set the day setpoint time. 6:00AM” TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 19: "Es" Spm Mode
Day Setpoint Use to set the day setpoint temperature. Temperature “EVE Evening Setpoint Use to set the evening setpoint time. 6:00AM” Time “EVE 75℉” Evening Setpoint Use to set the evening setpoint temperature. TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 20: Advanced
By default, it is shipped in Single Setpoint Mode (SSP). In this mode, there is only one setpoint and it is used all the time. Changes to it carry TS2BL: User Manual © 2022 Automation Correct, LLC... - Page 21 Likewise, if you have a very easy-to-turn convection blower, you may find you can lower this setting to get an even slower minimum fan speed. In general you should not adjust this setting unless there TS2BL: User Manual © 2022 Automation Correct, LLC...
- Page 22 All the same warning apply about modifying the setting. It is used to overcome “sticky” vent motors to ensure reliable fan turning at minimum speed. TS2BL: User Manual © 2022 Automation Correct, LLC...
-
Page 23: Reset
Automation Correct factory settings. This is useful if you get into a configuration that isn’t working and you don’t know how to fix it. This should be a last resort step. Please contact Automation Correct customer support before taking this action. -
Page 24: Advanced Topics
Control modules of this type are only available to stove OEMs and only on specific models of dual stoker furnaces. Selecting this will make the “FDR” setting in the SETUP menu available. It will also modify the TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 25: Dual Stoker
CMT setting. However, if you were using your original thermostat still, not an upgrade to the TS2 or TS2ES, you should contact Automation Correct customer support. Particularly if you hear a buzzing or chattering sound from the control module while running it with the TS2BL. -
Page 26: Manual Fan Safe Threshold And Time Settings
Unfortunately, the Coal-Trol Digital control system is not designed to work with this style of stoker system, at least not without modifications. If you have one of these stoker systems, please contact Automation Correct for support. -
Page 27: Where Did Hlf Go
If it is in an alcove or otherwise insulated from registering temperature changes in the dwelling, it will be slower than normal to react. You can also try adjusting your MAX setting TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 28: Generator And Off-Grid Power
If you’re interested in such a control to retro-fit to your heating appliance, please let us know. If there’s enough interest to support making a product it may just happen. TS2BL: User Manual © 2022 Automation Correct, LLC... -
Page 29: Specifications
Specifications Automation Correct LLC is constantly working to improve our products. For this reason, all specifications are subject to change without notice. Not all versions include all control options. TS2BL Thermostat: For Indoor Use Only Temperature: Displayed Precision 1°F/1°C Accuracy ±2°F/±1.8°C @ 68°F/20°C...
