ACER KG251Q

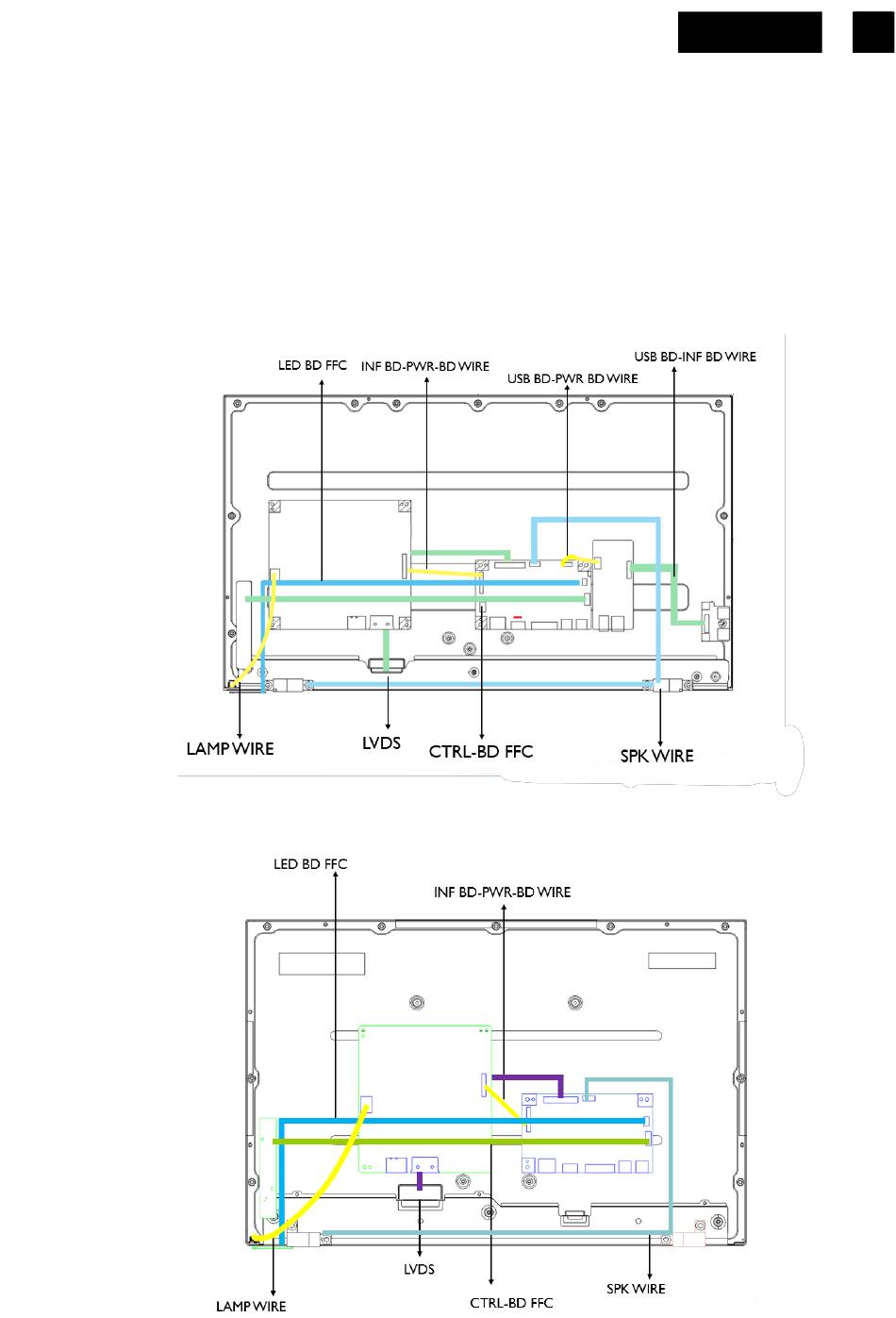

2. Wiring connectivity diagram
There are two types of wiring diagrams for model KG251Q. The wiring connectivity position will be
different according to the ACTUAL PCBA connector position. Please base on different SKU refer to
below diagram.
NOTE: INF BD= Interface Board, PWR BD=Power Board, CTRL BD= Control Board
1. SKU with USB.
2. SKU without USB.
