Acer KG251Q Lifecycle Extension Manual page 10

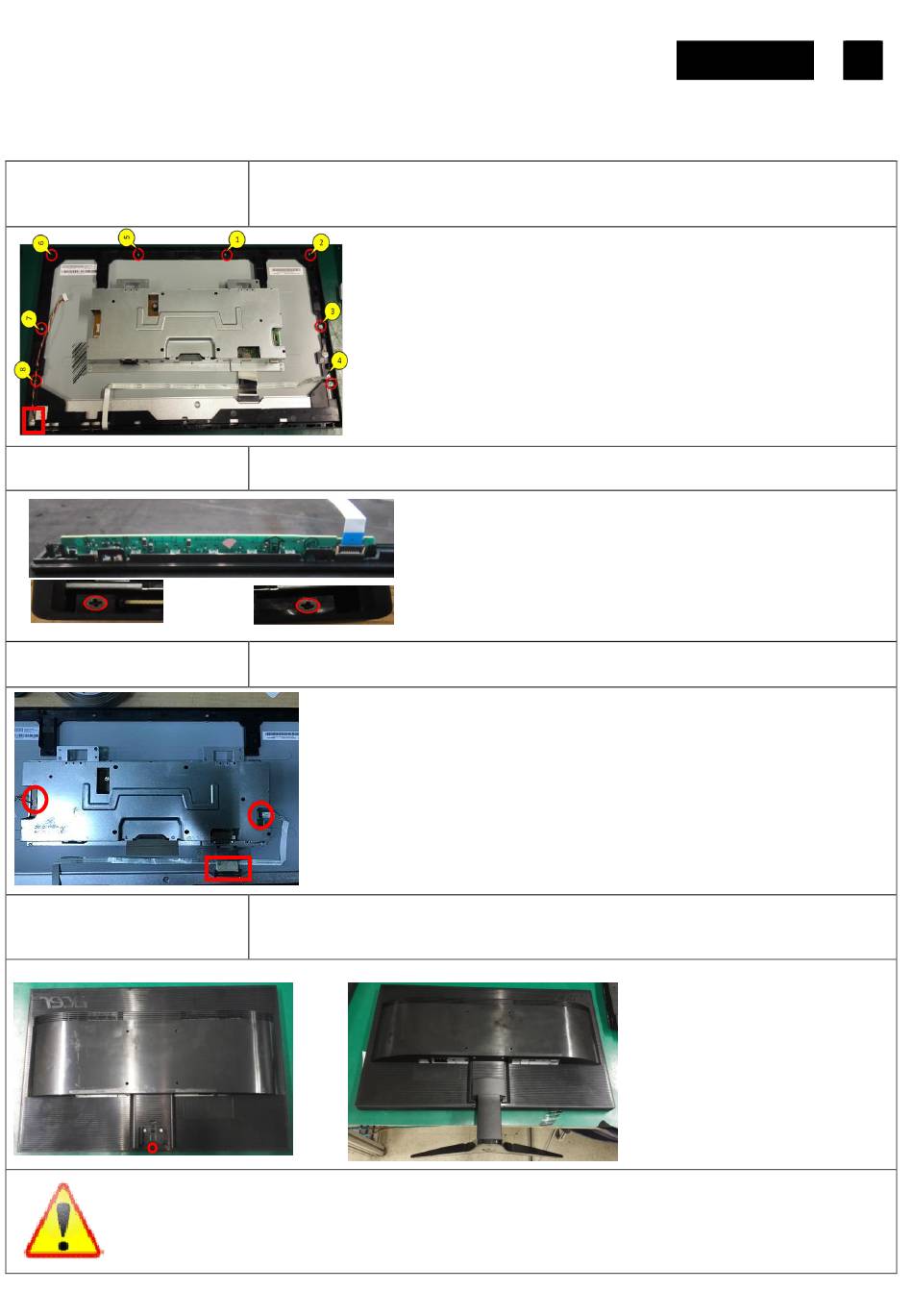

S3
Assemble Panel to MF
S4
Assemble CTRL BD
S5
Assemble SHD
S7
Assemble the RC, stand
and base
PICTURE 1
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Take the Panel, insert lamp wire to panel marked as red frame.
Assemble the MF to the panel ,and lock 8 screws to the MF as the picture
Assemble Crel FFC to Ctrl BD and put them into trim, then lock 2 trim screws
Locate the SHD, insert lamp wire to P/BD.
Insert FFC Ctrl to PCBA and insert LVDS to Panel
Assemble the RC to the MF and Lock 1 screw as picture 1.
Assemble the column and base on the RC as picture 2.
PICTURE 2
ACER KG251Q
10
