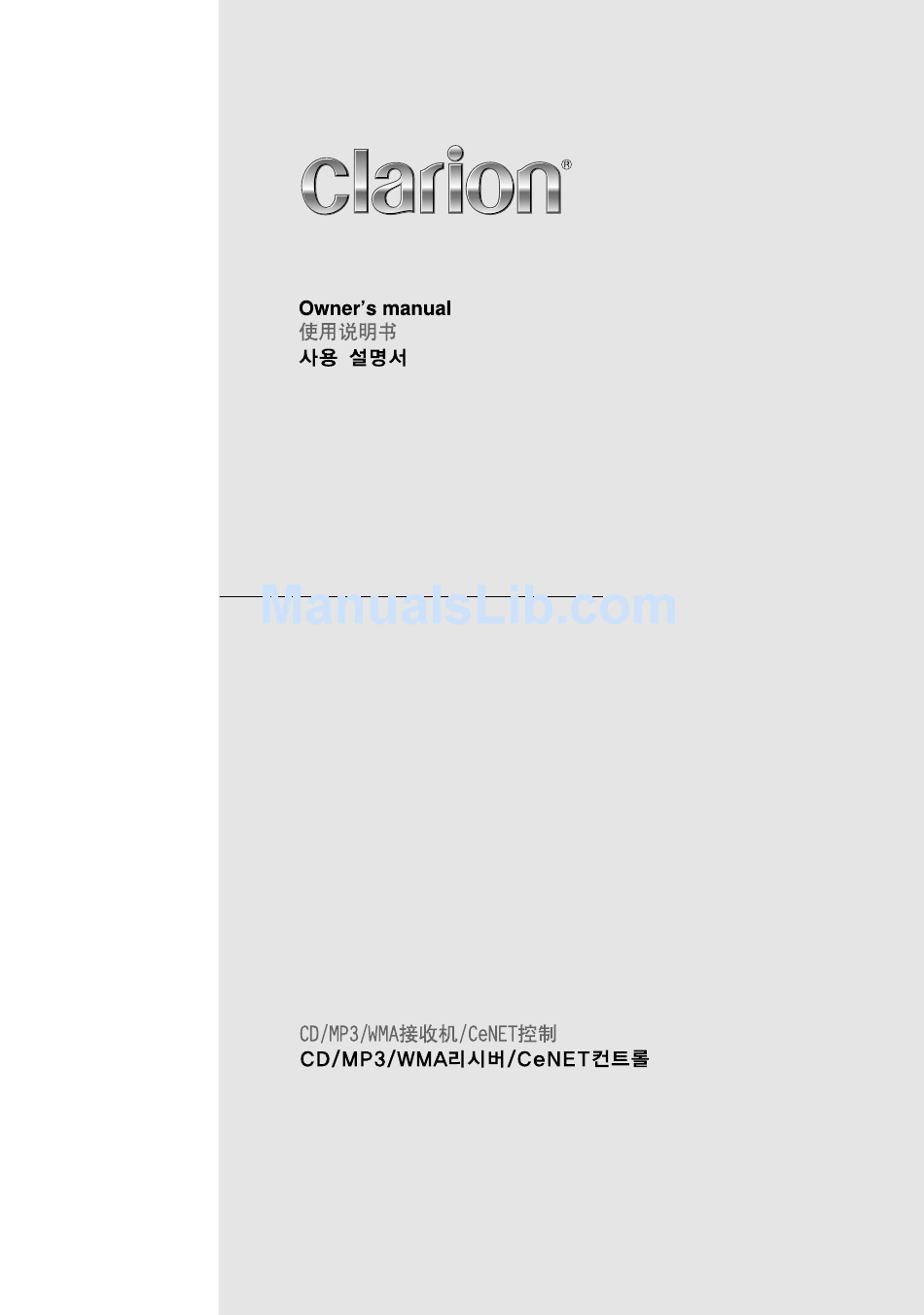

- Page 1 DXZ766MP CD/MP3/WMA RECEIVER/CeNET CONTROL...
-
Page 2: Table Of Contents
Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual. -
Page 3: Precautions
3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. Bottom View of Source Unit DXZ766MP... -
Page 4: Motorized Face
• Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean compact discs. • After using special compact disc cleaner, let the compact disc dry off well before playing it. Be sure to unfold and read the next page. DXZ766MP... -
Page 5: Controls
[ SCN] [ RPT] With the MOTORIZED FACE opened / Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. DXZ766MP [ DIRECT ] [ RDM] [ T ] [ D ]... -
Page 6: Nomenclature
WMA mode. • Press and hold for 1 second or longer to switch the track type to play in the CD/MP3/WMA mode. DXZ766MP • Press the button to change the character. [UP], [DN] buttons • Selects the folder. (MP3/WMA disc only) [DIRECT] buttons •... -
Page 7: Major Button Operations When External Equipment Is Connected To This Unit
[å, ∂] lever • Select a track when listening to a disc. • Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode. DXZ766MP... - Page 8 [BND] button • Switch the band. • When the button is pressed and held, switch seek tuning or manual mode. [DIRECT] buttons • Store a station into memory or recall it directly. [å, ∂] lever • Select a station. DXZ766MP...
-
Page 9: Display Items
• Motion image (3 patterns), wallpaper (5 patterns)(Page 21) • Demo mode with screen saver (Page 21) MAGNA BASS EXTEND indication Z-ENHANCER 1, 2, 3 ST (radio only), MP3, WMA indication MANU : Manual indication Channel indication Source indication DXZ766MP... - Page 10 : DVD title repeat • F.SCAN (FOLDER SCN) : Folder scan • F.RPT (FOLDER RPT) : Folder repeat • F.RDM (FOLDER RDM) : Folder random DXZ766MP Displays icon corresponding to playback or selection. Source indication Receiving frequency or channel / play time indication...
-
Page 11: Dcp
• The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ766MP... -
Page 12: Remote Control
• Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. DXZ766MP Signal transmitter [ BND ] ], [ [ DISP ]... -
Page 13: Functions Of Remote Control Unit Buttons
Folder random play Disc random play. (MP3/WMA mode). Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. Switches between TV and VTR. DXZ766MP... -
Page 14: Operations
➜ AUX mode ➜ Radio mode... ∗ External equipment not connected through CeNET will not be displayed. DXZ766MP Note:Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold). Adjusting the volume 1. -
Page 15: Adjusting The Balance
2. Turn the [ROTARY] knob to adjust the balance of the front and rear speakers. ∗ The factory default setting is “0”. (Adjustment range: F12 to R12) 3. When the adjustment is complete, press the [A-M] button several times until the function mode is reached. DXZ766MP... -
Page 16: Radio Operations
GStep tuning: Press the [å, ∂] lever upward or downward to perform manual tuning. DXZ766MP Recalling a preset station A total of 24 preset positions (6-FM1, 6-FM2, 6- FM3, 6-AM) exists to store individual radio stations in memory. -
Page 17: Cd/Mp3/Wma Operations
1. Always add a file extension “.MP3” or “.WMA” to MP3 or WMA file by using single byte letters. If you add a file extension other than specified or forget to add the file extension, the file cannot be played. DXZ766MP... - Page 18 Play MP3/WMA 2. After making these settings, remove the disc and then reinsert it. DXZ766MP 3. When a mixed mode CD is loaded and CD is set, the track to be played first is MP3/WMA file data and no sound is heard.
-
Page 19: Selecting A Track
1. Press the [DN] or the [UP] button. Press the [DN] button to move the previous folder. Press the [UP] button to move the next folder. Album TAG Artist TAG Folder Track ” appears in the display. ” appears DXZ766MP... -
Page 20: Top Function
“F.SCAN” appears in the display. ∗ Folder scan play starts from the next track after the track currently being played. DXZ766MP G Repeat play This function allows you to play the current track repeatedly. -
Page 21: Operations Common To Each Mode
When “MESSAGE” is selected for the screen saver setting, you can change the contents of the message. ∗ Up to 30 characters can be entered. ∗ The factory default setting is “Welcome to Clarion”. 2-1. Select “ MSG INPUT”. 2-2. Press the [ ] button. -
Page 22: Setting The Subwoofer
“desired setting item”. ∗ ∗ ∗ ∗ ∗ After completing settings, press the [ADJ] button to return to the previous mode. DXZ766MP G Anti-theft indicator The red Anti-theft indicator is a function for preventing theft. When the DCP is removed from the unit, this indicator blinks. -
Page 23: Other Operations
4. Press and hold the [T] button for 1 second or longer to switch to the title input display. 5. Press the [å, ∂] lever upward or downward to move the cursor. 50 titles 20 titles 30 titles 100 titles 100 titles DXZ766MP... -
Page 24: Clearing Titles
This unit requires special wiring to mute the audio signal automatically when a cellular telephone rings in the car. ∗ This function is not compatible with all cellular telephones. Contact your local authorized Clarion dealer for information on proper installation and compatibility. AUX function... -
Page 25: Operations Of Accessories
∗ Disc scan play is useful when you want to select a desired CD. 1. Press and hold the [SCN] button for 1 second or longer. ” appears in the display. ” appears in the display. DXZ766MP... -
Page 26: Tv Operations
VTR. 2. To return to the TV broadcast, press and hold the [ADJ] button for 1 second or longer. DXZ766MP G Disc random play The disc random play selects and plays individual tracks or discs automatically in no particular order. -
Page 27: In Case Of Difficulty
1. Check the speaker connection. 2. Turn down sound volume. Function can also be restored by turning the power off and on again. 3. If the sound is muted again, consult Clarion dealer. With the MOTORIZED FACE open, press and hold the [Q] button for 3 seconds or longer. - Page 28 Wrong filename File system is not correct. DXZ766MP Cause Use MP3/WMA files encoded properly. Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system.
-
Page 29: Error Displays
Region code error If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult Clarion dealer. Cause This is a failure of CD deck’s mechanism and consult Clarion dealer. -
Page 30: Specifications
Dynamic Range (1 kHz): 95 dB Harmonic Distortion: 0.01% Note: • Specifications and design are subject to change without notice for further improvement. DXZ766MP Audio Maximum Power Output: 212 W (53 W ✕ 4 ch) Continuous Average Power Output: 19 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD Bass Control Action (80 Hz): +14 dB, –12 dB... - Page 31 Clarion Co., Ltd. PE-2826K All Rights Reserved. Copyright © 2006: Clarion Co., Ltd. 2006/1 280-8371-00...
