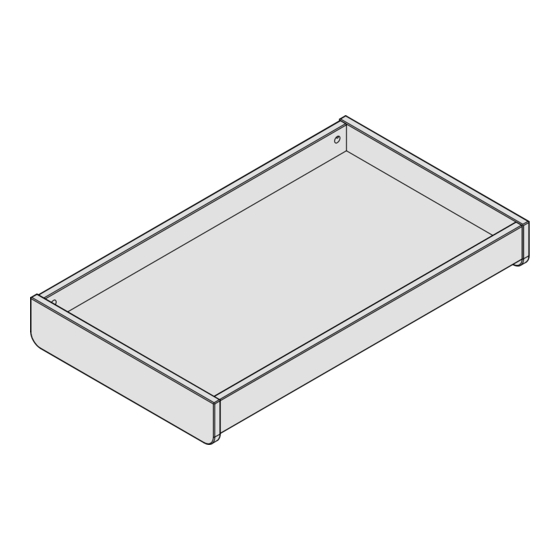

ALIX CHANGING UNIT CONVERTER
A27742
Assembly instructions
Need Help ?
With: Assembly instruction
Missing or damaged parts
CALL: 0333 777 8999
Advertisement
Related Manuals for Next ALIX A27742
Summary of Contents for Next ALIX A27742
- Page 1 Assembly instructions Actual product size H11 x W87.5 x D51cm Need Help ? IMPORTANT - With: Assembly instruction RETAIN FOR FUTURE REFERENCE - Missing or damaged parts READ CAREFULLY. CALL: 0333 777 8999 Produced in China for Next Retail Ltd. A27742-2022-V1.
- Page 2 Do not place your changer or dresser in the close proximity of an open fire and the sources of heat, such as radiators, electric or gas fires Do not place your changer or dresser in the close proximity of windows Produced in China for Next Retail Ltd. A27742-2022-V1.
-
Page 3: Getting To Know Your Product
ALIX CHANGING UNIT CONVERTER A27742 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in China for Next Retail Ltd. A27742-2022-V1. - Page 4 ALIX CHANGING UNIT CONVERTER A27742 Assembly instructions Components supplied. Please use this guide if you require replacement parts. Visual Ref Dimensions 47 x 84cm 8 x 84cm 11x 51cm Produced in China for Next Retail Ltd. A27742-2022-V1.
- Page 5 ALIX CHANGING UNIT CONVERTER A27742 Assembly instructions Fixtures and fittings supplied (actual size) Dimensions Spare Qty Ø15 x 12mm Ø7.5 x 33mm Ø8 x 30mm Produced in China for Next Retail Ltd. A27742-2022-V1.
- Page 6 ALIX CHANGING UNIT CONVERTER A27742 Assembly instructions CAM BOLT Tighten until shoulder is flush with panel. Do not overtighten Shoulder or undertighten (see example below) NO GAP Panel Panel Ø7.5 x 33mm Produced in China for Next Retail Ltd. A27742-2022-V1.
- Page 7 TURN CLOCKWISE UNTIL SECURE CORREC T WRON G Ø15 x 12mm WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORREC T WRON G Ø15 x 12mm Produced in China for Next Retail Ltd. A27742-2022-V1.
- Page 8 ALIX CHANGING UNIT CONVERTER A27742 Assembly instructions WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORREC T WRON G Ø15 x 12mm Produced in China for Next Retail Ltd. A27742-2022-V1.

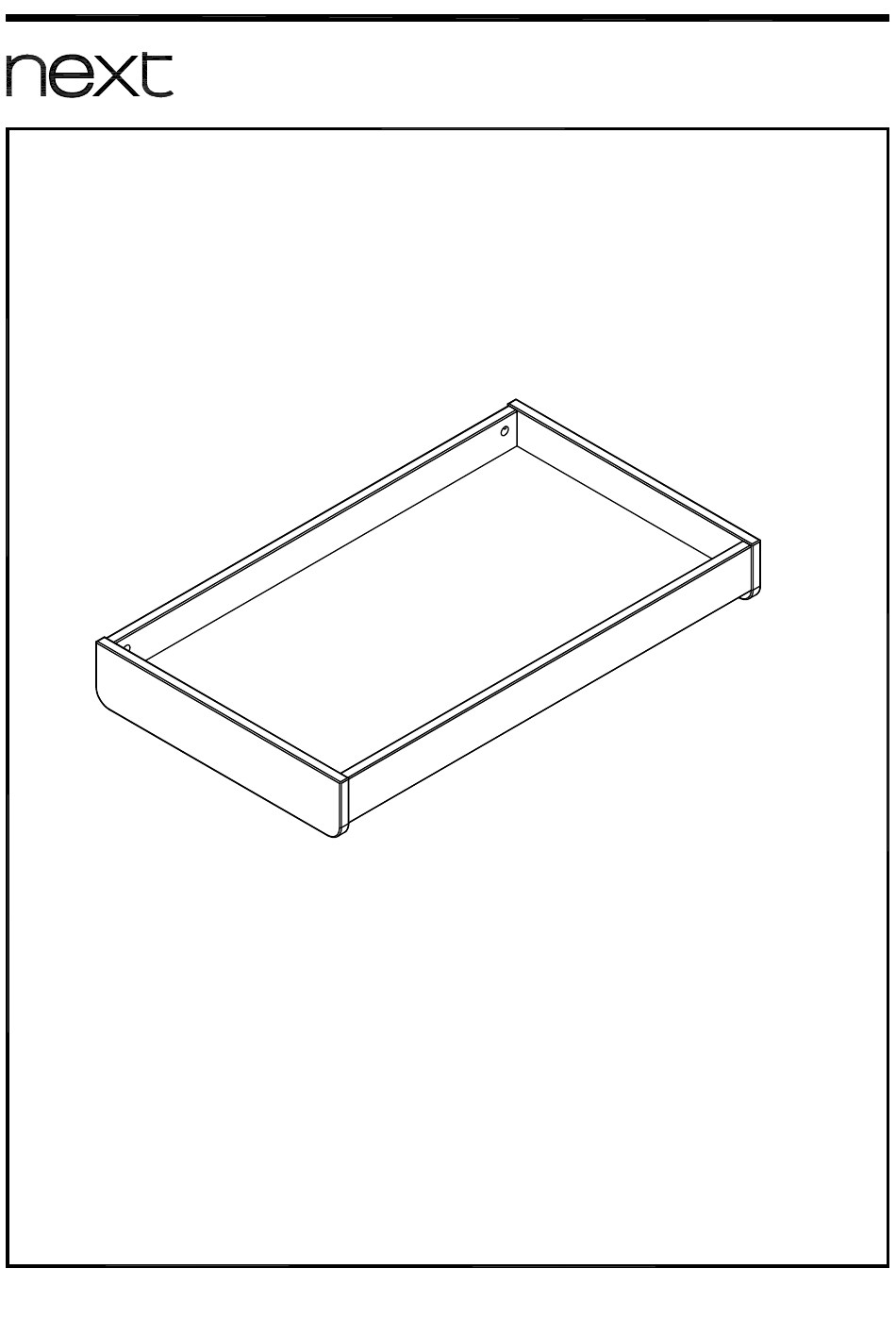

- Page 9 ALIX CHANGING UNIT CONVERTER A27742 Actual product size H11 x W87.5 x D51cm Produced in China for Next Retail Ltd. A27742-2022-V1.
-
Page 10: Missing Parts
You can write to us at Home Customer Services Next Retail Ltd. Desford Road, Leicester, LE19 4AT To view our full furniture range please visit www.next.co.uk This product conforms to BS EN 12221-1&2:2018+A1:2013. Produced in China for Next Retail Ltd. A27742-2022-V1.
