OPERATING INSTRUCTIONS
Visit our website for detailed video instructions
WWW.STINGERGOLF.COM.AU
03 5924 6056
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-5E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stinger SG-5E

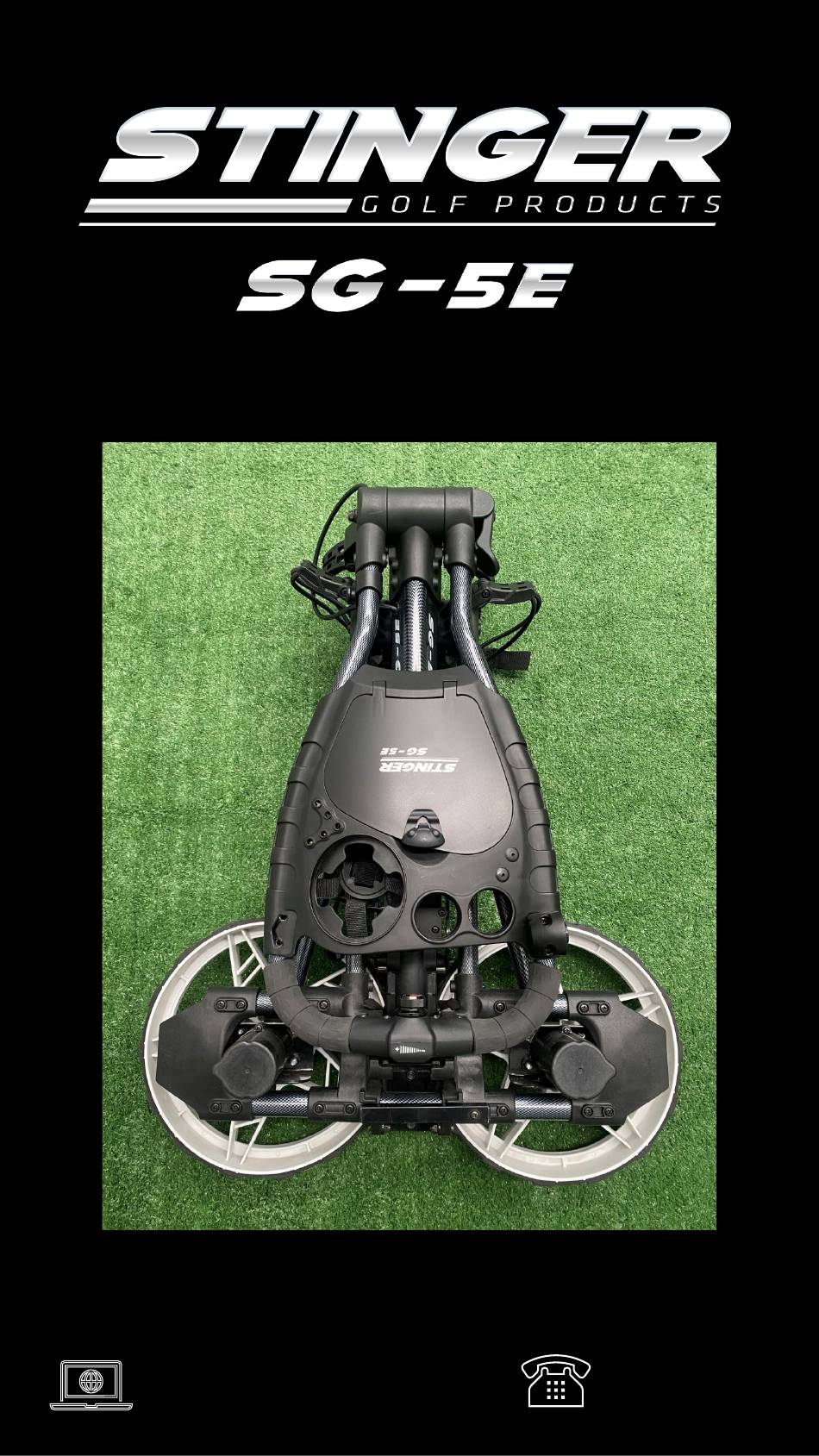

  • Page 1 OPERATING INSTRUCTIONS Visit our website for detailed video instructions WWW.STINGERGOLF.COM.AU 03 5924 6056...
  • Page 2: Table Of Contents

    CONTENTS CHARGING THE BATTERY……………………………….Page 3 IMPORTANT: BATTERY INFORMATION…………...Page 4 SETTING UP THE BUGGY………………………………..Page 5 FITTING & REMOVING ANTI-TIP WHEEL……..Page 10 FITTING THE ACCESSORIES……………………………Page 11 CONNECTING THE BATTERY………………………….Page 12 OPERATING THE BUGGY……………………………….Page 15 BATTERY LEVEL INDICATOR…………………………..Page 16 USB CHARGING PORT…………………………………..Page 17 PACKING DOWN THE BUGGY………………………..Page 18 DEPLOYING THE BUGGY STAND……………..….Page 23 Visit our website for detailed video instructions...
  • Page 3: Charging The Battery

    CHARGING THE BATTERY STEP 1: • Before connecting the charger to the 240 volt wall power outlet, connect the red & black connectors to the battery as indicated by the arrow in FIGURE 1 figure 1. STEP 2: • Now connect the power lead to the power outlet and switch on at wall.
  • Page 4: Important: Battery Information

    IMPORTANT: BATTERY INFORMATION LITHIUM BATTERY INFORMATION • Lithium Batteries come with an electronic management system built in, (BMS) which protects the lithium battery from any sort of abuse or misuse. • In the unlikely event that your BMS shuts down the power, disconnect the battery from the buggy, wait 30 seconds, and re-connect.
  • Page 5: Setting Up The Buggy

    SETTING UP THE BUGGY STEP 1: • Unlock the top handle of the buggy as per figure 1. FIGURE 1 STEP 2: • Raise the handle until it is 90 degrees to the frame of the buggy as FIGURE 2 per figure 2.
  • Page 6 STEP 3: • Lock the top handle of the buggy as per figure 3. FIGURE 3 STEP 4: • You are now able to open the buggy by pushing back on the top bag support and pushing down on the front of the buggy as per figure 4 until the buggy is...
  • Page 7 STEP 5: • You are now ready to unfold the front wheel. FIGURE 5 FIGURE 6 STEP 6: • Tilt the buggy backwards as per figure 6.
  • Page 8 Lever FIGURE 7 STEP 7: • Push down on the lever and then front wheel at the same time, until the front wheel releases from its locked position as per figure 8. FIGURE 8 STEP 8: • Continue to push down on the lever until the front wheel fully locks into the open position as per figure 9.
  • Page 9 FIGURE 9 STEP 9: • The front wheel is now fully locked and the buggy is ready for the battery to be connected for play. FIGURE 10 STEP 10: • Please refer to connecting the battery section.
  • Page 10: Fitting & Removing Anti-Tip Wheel

    FITTING AND REMOVING THE ANTI-TIP WHEEL STEP 1: • Slide the anti-tip wheel into mounting point until it clicks into place as per figure 2. FIGURE 1 STEP 2: • To remove the anti-tip wheel from the buggy, press the button under the buggy &...
  • Page 11: Fitting The Accessories

    FITTING THE ACCESSORIES Umbrella Holder: • Screw the umbrella holder into umbrella mount as per figure 1. FIGURE 1 Sand Bottle: • To attach sand bottle, clip bottle onto fitting provided on the buggy as per figure 2. FIGURE 2...
  • Page 12: Connecting The Battery

    CONNECTING THE BATTERY STEP 1: • Ensure the battery is turned off before connecting to the buggy as per figure 1. FIGURE 1 FIGURE 2 STEP 2: • Ensure the two round lugs on the battery and the three electrical connectors indicated by the yellow arrows as per figure 2 are all lined up.
  • Page 13 STEP 3: • Push down on the battery until the two battery round lugs lock into place as per figure 3. FIGURE 3 FIGURE 5 FIGURE 4 STEP 4: • Connect the electrical lead from the buggy to the battery as indicated by the yellows arrow in both figures 4 &...
  • Page 14 Battery Indicator Light FIGURE 5 STEP 5: • Turn on the battery and the battery indicator light will illuminate as per figure 6. You are now ready to operate the buggy.
  • Page 15: Operating The Buggy

    OPERATING THE BUGGY STEP 1: • When the battery is switched on, the top handle display will flash ‘0’ in green as per figure 1. FIGURE 1 STEP 2: • To start the buggy, push in the speed dial in the direction of the arrow as per figure 2.
  • Page 16: Battery Level Indicator

    BATTERY LEVEL INDICATOR Display Screen Battery Level FIGURE 1 • Press and hold the speed dial for 3 seconds, and the digits 1, 2, 3 or 4 will illuminate on the display screen. • 1 = 25% charge • 2 = 50% charge •...
  • Page 17: Usb Charging Port

    USB CHARGING PORT STEP 1: • The USB charging port is located under the display screen as indicated by the arrow in figure 1. FIGURE 1 STEP 2: • You can now connect the USB charging device to your phone or GPS unit as per figure 2.
  • Page 18: Packing Down The Buggy

    PACKING DOWN THE BUGGY IMPORTANT NOTICE: Battery MUST be removed before attempting to pack down the buggy STEP 1: • Turn the battery off as indicated in figure 1. FIGURE 1 STEP 2: • Disconnect the electrical lead from the battery by gently pulling out the lead as indicated in future 2.
  • Page 19 STEP 4: • Tilt buggy back & lift up on front wheel release lever as indicated by yellow arrow in figure 4. FIGURE 4 STEP 5: • Fold front wheel up towards the frame until it is in the locked position as per figure 6.
  • Page 20 STEP 7: • Unlock the top handle by pushing down on the lever as indicated by the yellow arrow in figure 4 until the handle is in the fully closed position as per figure 5. FIGURE 7 STEP 8: • Push down on the handle assembly in the direction of the yellow arrow...
  • Page 21 FIGURE 9 STEP 9: • The buggy is now in the fully closed position. FIGURE 10 STEP 10: • Push down on upper bag support until it is tucked up under the handle assembly as per figure 11.
  • Page 22 FIGURE 11 STEP 11: • Lock the top handle to complete the pack down procedure. FIGURE 12 STEP 12: • You have now successfully completed the pack down procedure.
  • Page 23: Deploying The Buggy Stand

    DEPLOYING THE BUGGY STAND FIGURE 10 STEP 10: • Rotate the black stand to enable the buggy to stand upright. FIGURE 11 STEP 11: • The buggy is now standing in the correct position.
  • Page 24 11/6 Thomson Terrace, INFO@STINGERGOLF.COM.AU Dromana VIC 3936 WWW.STINGERGOLF.COM.AU 03 5924 6056...
