Summary of Contents for DeltaTRAK FlashLink 20932

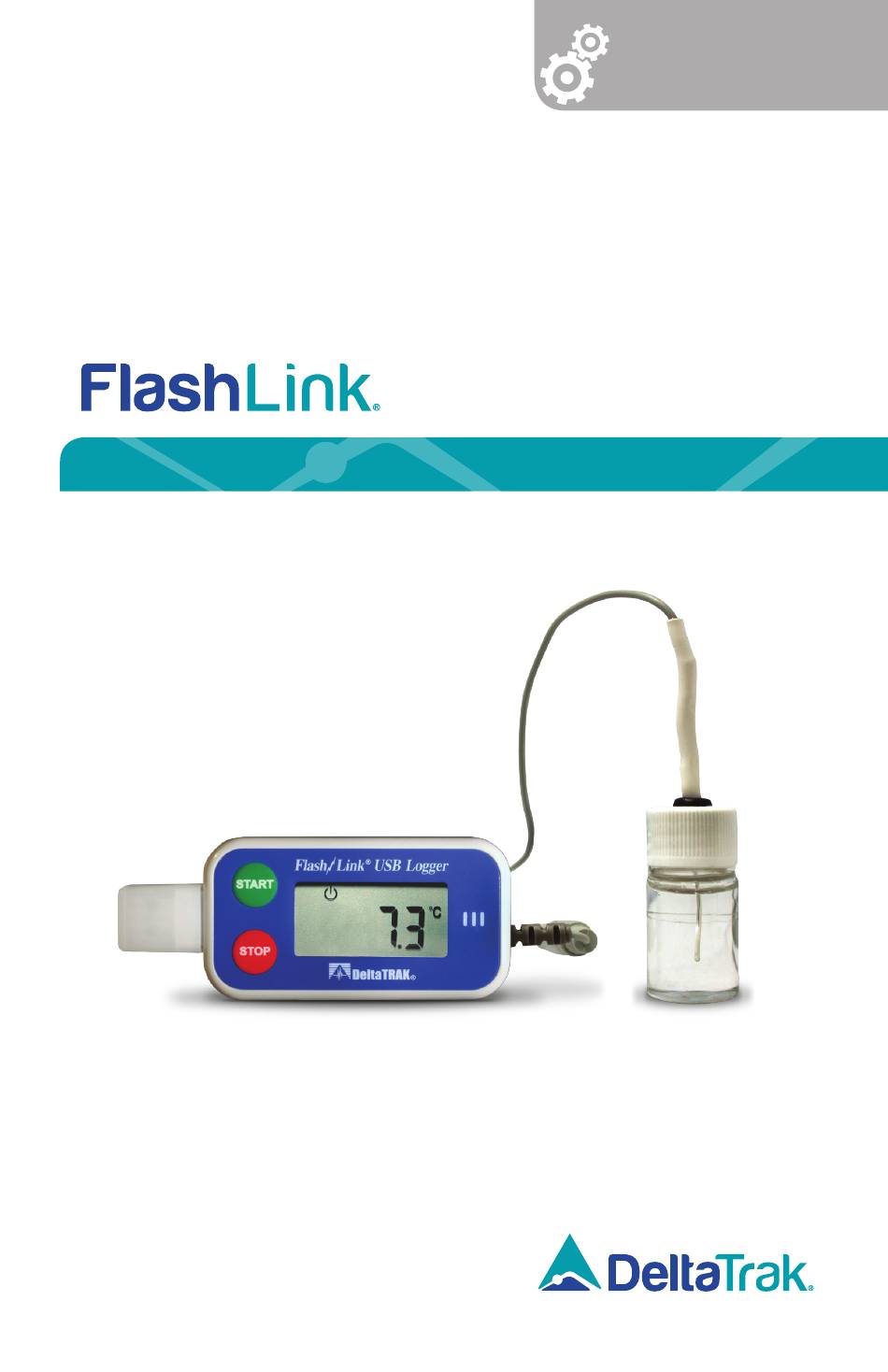

- Page 1 Quick Start Guide Model 20932 Certified Vaccine Data Logger with Glycol Bottle...
-
Page 2: Software Download And Installation
Software Download and Installation 1. Open a web browser and go to www.deltatrak.com website. 2. Locate the main menu at the top of the web page under the DeltaTrak company logo and then select Support in the menu. 3. Scroll down to ‘Software and Drivers’ in the menu and Click this selection. - Page 3 Connect the logger to any available USB port on your computer. Locate the FlashPDF Program Manager Icon in the system tray and single right click on it. Click Setup in the menu to open the configuration screen. (The Configuration View dialog box will appear) www.deltatrak.com...
- Page 4 Screen shows logger current configuration. Note: Click on arrow on the lower right to get to second Configuration View page. www.deltatrak.com...
-
Page 5: Logging Options
Click Next. Logging Options See FlashPDF Help File for more information about configuration options. Suggested Settings: Set Start Options to manual Set Period to 30 days Minimum Logging interval = Every 15 minutes After setting the Logging Options, click Next. www.deltatrak.com... -
Page 6: Alarm Options
Set the highs and lows for the alarm temperature limits Suggested Settings: High = 8° C / Low = 2° C After setting the Alarm option, click Next. Data Tags The optional information on this screen is intended for shipping the logger with products. Click Next to continue. www.deltatrak.com... -
Page 7: Configuration Summary
To make changes, click the Back button. Click Next to go forward. Click OK NOTE: Clicking OK on the Configuration Summary dialog box will start logger configuration and will write the information to the logger memory. Click OK to continue configuration. www.deltatrak.com... - Page 8 Logger is being configured. To configure another logger select yes and click next. To close programming, select no and click finish. Remove the data logger from computer. www.deltatrak.com...
- Page 9 Downloading Logger Data and Generating Reports Detach the logger from the probe and connect it to the USB port on the computer. FlashPDF will automatically access the data logger and download any information that has been recorded. www.deltatrak.com...
- Page 10 A temperature graph will display the entire data logging sequence. The Date and Time readings are listed on the graph. The second page will display the Data Table information, listing all data points that were recorded. www.deltatrak.com...
- Page 11 Disconnect the logger from computer, reconnect the sensor in the glycol bottle in the refrigerator. Resetting the logger for next use Once the logger information has been downloaded, Locate the FlashPDF Program Manager Icon and single right click on it. Click setup in menu to open the configuration screen. www.deltatrak.com...
-
Page 12: Troubleshooting
Press START button to restart the logger. Troubleshooting Call Tech Support at: Phone: 925-249-2250 Toll Free 800-962-6776 US & Canada Email: techsupport@deltatrak.com P.O. Box 398 Pleasanton, CA 94566 USA p (925) 249-2250 (800) 962-6776 f (925) 249-2251 www.deltatrak.com 3103 14A1...
