  • Page 1 Lite S Quick Start Guide...
  • Page 2 Thanks for using the GOOVIS To begin using the GOOVIS Lite S as quickly as possible, please carefully read this GOOVIS Lite S Quick Start Guide. All pictures here are for general reference only. All procedures should be based on the actual product received. Shenzhen NED Optics Co., Ltd.

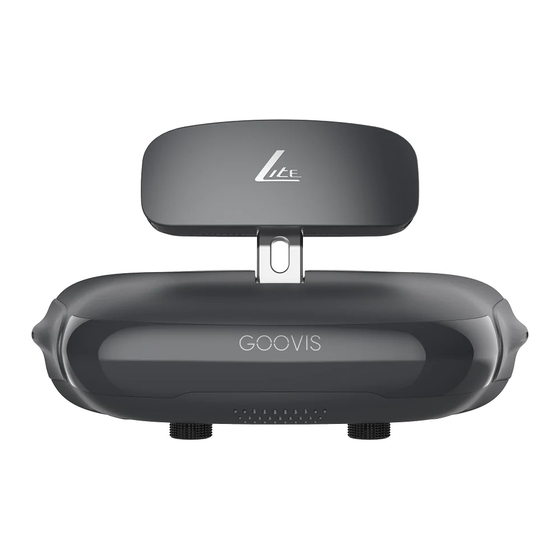

  • Page 3 1. Getting to Know Your GOOVIS Lite S Headset Headband Lens Cleaning Cloth GOOVIS HDMI Adapter (Free gift)
  • Page 4 • Headset Functions and User Interface Headband Interface Head Support Replaceable Face Cushion HDMI Cable Earphone Jack IPD Adjustment Range 3D/2D Switch Brightness Adjustment Diopter Adjustment Knob...
  • Page 5 2. Fitting and Adjustment 1) Pull up the support of the headset gently to the position shown in the figure below.
  • Page 6 2) Connect the ends on both sides of the head strap to the support shown in the figure below by sliding the ends of the straps in to the slots from below. The Headband connection is completed as shown below：...

  • Page 7: External Device Connection

    3. External Device Connection You can connect GOOVIS Lite S via HDMI adapter cable and/or GOOVIS Cast to GOOVIS portable media player, mobile phones/tablets/laptops, desktop computers/drones/PS4, SWITCH, Xbox and other game consoles/TV set-top-boxes etc., which with HDMI video output device, and enjoy the wonderful vision of high-definition large screen.
  • Page 8 • Performing Initial Vision Adjustment The GOOVIS Lite S accommodates a vision range from +2D hyperopia to -7D myopia, and an IPD (Interpupillary Distance) from 56mm to 72mm, and separate adjustment of each of the left and right eyes. For easy vision adjustment, we suggest that, before putting on the headset, you can initially rotate the vision adjustment knob to a hyperopia/myopia scale that corresponds somewhat to your eye sight.
  • Page 9 You can also adjust the headset itself by tilting it slightly up or down. Flippable Tip: Before putting on the headset, make sure that the lenses on the Lite S display windows are clean.
  • Page 10 • Performing Accurate Visual Adjustment When the headset sits comfortably on your head, rotate the diopter adjustment knobs to the clockwise or counterclockwise to bring the image into sharp focus. Please close your right eye when adjusting your left eye, and vice versa. It is suggested that, when adjusting the vision, you begin from the blurry state until the image is sharpest, without any overlaps or shadows in the field of view.

  • Page 11: Specifications

    4. Specifications Display: 2x0.49 inch AMOLED display Resolution: 1920×1080 * 2 Optical modules: 14 optical lenses Virtual screen size: Equivalent to a giant 600-inch diagonal screen when viewed from a distance of 66 feet (20 meters) Distortion: < 1.5% FOV: 42° Diopter adjustment: Ranging from +2D hyperopia to -7D myopia;...

  • Page 12: Warranty Policy

    GOOVIS after-sales service center, you may have your device repaired or replaced without charge (except for shipping). The decision to replace or repair the device will be determined by the GOOVIS repair center depending upon the issue that is encountered.

  • Page 13: Manufacturing Information

    Email: goovishw@nedoptics.com.cn Made in China 9. Customers Supporting Thanks for your ordering GOOVIS, If you do not understand the instructions or have any concerns or questions, please contact customer service at goovishw@nedoptics.com.cn or Scan the QR code to get in touch.
  • Page 14 https://www.goovislife.com...
