Summary of Contents for Teknoloji Ekibi Delta Pulse 3S Plus

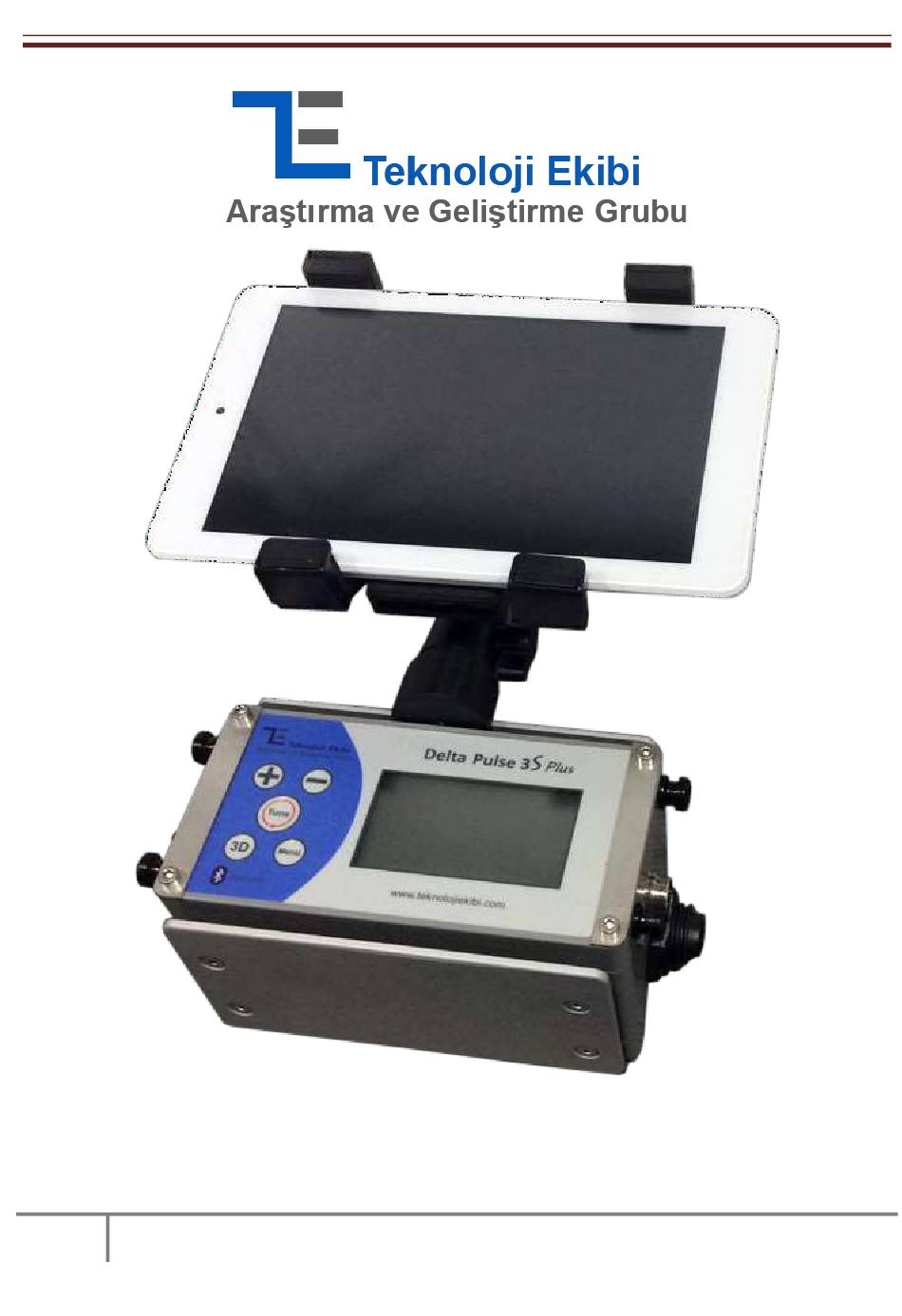

- Page 1 User Manuel...
- Page 2 FOR EACH PERSON 6 WORKİNG MODE Delta pulse 3s Plus chosen the appropriate structure to use each style has 6 working modes. From this mode 1:Standart Pulse Metal Detector, 2 :İron Off mode, 3:Mineral elimination mode without ground balance, 4:Ground Mode, 5:Ground mode with manuel , 6:3D İmaging mode.

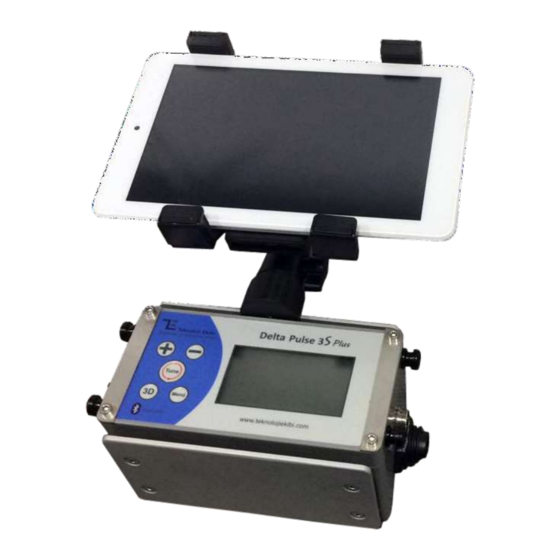

- Page 3 Ergonomic Structure Mounted on a Delta pulse 3s Plus Tablet, a kite that do not make the clutter of cables with the title of a very ergonomic design and structure. Delta pulse 3s plus high-quality materials and thoughtful engineering of these materials is very compatible with that structure.
- Page 4 USING TECHNOLOGY WITHOUT SETTING Delta pulse 3S Plus is a product that can be used without the need for setting any land. Mode 1 Open is used only for use when the detector is sufficient. In no way can be used without adjustment.
- Page 5 2 - Delta pulse 3S plus parts Delta pulse 3s plus 15 cm up to 60 cm suitable for use with single from the title can be used. Search deep with 1x1m, title, or 1.5x1.5m kite can be used in the title.
- Page 6 8- Gradiometer 9- Tablet PC Figure 1...
- Page 7 3 – The meaning of the buttons and icons on the screen of the detector 1 - metal with Part numbers this is to enable a distinction to be made. The precious metal are likely to be higher than the figures contained in this section. There is no way to represent each figure of another metal. In general, the value of the figures if it is below 30, the metal iron and its derivatives, staying on if it is non-ferrous in the form of can be classified.
- Page 8 We would like this part in order to explain what is the use of: Sens: adjust the sensitivity of the detector is the part that is used to. The sensitivity of the parameter value will be so high. With the rise of precision that should be considered is the possibility that interference can bring. Attention! High sensitivity also increases the probability of detection of mineral.
- Page 9 6 - finding mode this mode of operation the patented tried-and-space at the same time, underground imaging modes. When this mode is selected on the screen after the setting is made of the soil in a straight line is observed. The shapes of metal detection on this line upwards, downward shapes how we perceive space.
- Page 10 4 – Preparation For Use Of The Detector Detector equipment should be made ready for combined use. For this the following steps should be followed. 1 - as shown in Picture 2 and picture 3 should be first made ready for use to be used as a coil. The coil the larger coil to be used in the form of a square with the pipes to each other should be reviewed and should be compressed.
- Page 11 In a search to be made with a small coil that the detector is ready to use the tune button must be held pressed to open. Delta pulse 3s Plus Tune button on the screen with the look of the logo should be left. During this time, the detector's search coil must be kept in position.
-
Page 12: Usage Details
The soil remained to be made after the setting is completed settings to the user's request. The setting of the soil after it is done, is seen as an exclamation mark on the battery indicator if the setting has been done on soil as it should. - Page 13 Use should be considered during - Slow in the manner it should be moved during use of the detector coil. - The detector will automatically tune when it is set in a manner that should not be waiting on the metal too. - To-earth setting is made 4.
- Page 14 Figure 5 5. TE icons with the help of 3D viewer program as shown in Figure 6 to be made to the display settings window should open. Figure 6 6. The part with the metal detector part Figure 7 in the window that opens should be selected. Figure 7...
- Page 15 7. The capture will be performed in the same window the length and width of the field where information must be entered. 8. Must be entered step size at the same window. Program will calculate sample periods and sample ways with using size of the area and step size.
- Page 16 Figure 9 The following steps are what should be applied in the order in shots with a gradiometer. Gradiometer with three very important points to be considered before we start shooting during shooting. The first of these is the direction of the sensor. Sensor and should not be changed in any way during the shooting of gone this direction should be North or South.
- Page 17 3. Bluetooth connection icon must be chosen on TE 3D Viewer program and bluetooth connection must be provided. Figure 11 4. Icon to seen in Figure 12 with the help of 3D viewer program to be made to the display settings window should open.
- Page 18 Figure 13 7. The capture will be performed in the same window the length and width of the field where information must be entered. 8. Must be entered step size at the same window. Program will calculate sample periods and sample ways with using size of the area and step size.
-
Page 19: Data Interpretation
8 – The Program's Main Screen The icons in the main screen of the program shown in Figure 8. 9 – Data Interpretation To interpret the data, the first image on the screen are the logic of how should know. The largest one of the received data to the right of the color Valence color scale is assigned. - Page 20 Gradiometer opened and closed ares Metal Detector Small Metal Gradiometre iron...
- Page 21 Gradiometer Tunnel Attention! The colors in the color scale can be adjusted as desired. Attention! By opening the customer's data and all of the pictures above are seen. Data is not imaginary.
- Page 22 ...
