TECHNICALINSTRUCTIONS - FILTRATION UNIT GR.I 181
Revision 1.0 of 19/01/18
INSTALLATION AND OPERATING GUIDE

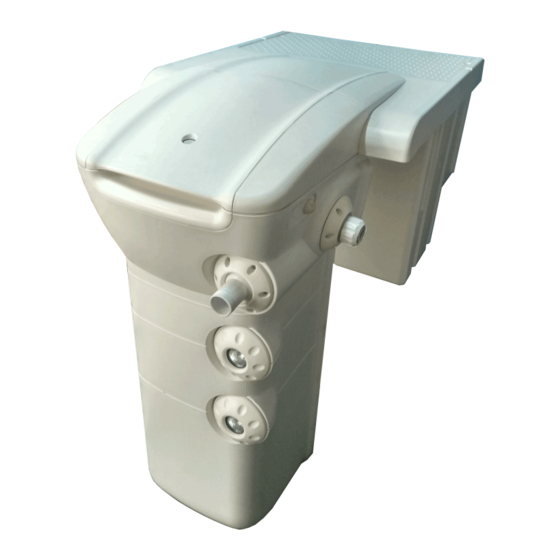

FILTRATION UNIT GR.I 181
JANUARY 2018
Translation of the original instructions
PISCINES DESJOYAUX - 42 Avenue Benoît Fourneyron CS 50280 - 42484 La Fouillouse cedex (France)
Tél. 04.77.36.12.12
www.desjoyaux.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR.I 181 and is the answer not in the manual?

Questions and answers

Paul Temple
May 17, 2025

Cannot remove the GRI 181 filtration unit for pool liner renewal as Desjoyaux have cemented the unit to the support walls. What do you suggest I do to get round this problem?

0
1 comments:
Mr. Anderson
May 22, 2025

To remove the Desjoyaux GR.I 181 filtration unit for pool liner renewal, follow these steps:

1. Build a form (e.g., using rigid cardboard) around the technical compartment during installation to allow space for removing the unit later.
2. Ensure that this formwork remains in place until the pool deck is laid.
3. When it's time to replace the liner, remove the filtration unit from the pool wall as it must be taken out before installing the liner.
4. Carefully detach the unit, avoiding damage to the liner or surrounding structures.

This process allows safe removal of the unit even if it is cemented in place, provided proper space was left during installation.

This answer is automatically generated

0

Summary of Contents for Desjoyaux GR.I 181

  • Page 1 TECHNICALINSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 INSTALLATION AND OPERATING GUIDE FILTRATION UNIT GR.I 181 JANUARY 2018 Translation of the original instructions PISCINES DESJOYAUX - 42 Avenue Benoît Fourneyron CS 50280 - 42484 La Fouillouse cedex (France) Tél. 04.77.36.12.12 www.desjoyaux.com...
  • Page 2 TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 This guide contains the instructions required to install and use your GR.I 181 filtration unit for private domestic pools. We recommend that you carefully read the various sections of this guide and file this document in a safe place for future reference.

  • Page 3: Table Of Contents

    1. Presentation of the GR.I 181 filtration unit 2. General views 3. Technical specifications and instructions prior to the installation and operation of the GR.I 181 filtration unit 4. List of tools required for assembly. 5. GR.I 181 installation and operating instructions 5.1 - Support masonry...

  • Page 4: Presentation Of The Gr.i 181 Filtration Unit

    1. Presentation of the GR.I 181 filtration unit There are several standard version of this filtration system: ► GR.I 181 P18 version: GR.I 181 unit equipped with a P18 pump: - Single-speed pump, motor: power consumption 450W (50 or 60Hz) - Total assigned power with the spotlights: 595W ►...

  • Page 5: General Views

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 2. General views LEFT SIDE VIEW FRONT VIEW RIGHT SIDE VIEW TOP VIEW...

  • Page 6: Technical Specifications And Instructions Prior To The Installation And Operation Of The Gr.i 181 Filtration Unit

    - If your installation is equipped with an electric heater, order the piping that is specially adapted to the GR.I 181. - The standard discharge piping must be modified if the salt electrolyser system is installed.

  • Page 7: List Of Tools Required For Assembly

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 4. List of tools required for assembly. Not supplied Phillips screwdriver Flathead screwdriver Builder’s rule Spirit level Adjustable wrench Cement Sand Solid breeze blocks D50 red sheath for electric cables...

  • Page 8: Positioning The Filtration Unit

    Finish backfilling around the filtration unit, and finalise the pool masonry work (installation of the coping stones and pool deck area). 5.3 - Liner installation CAUTION: The GR.I 181 filtration unit must be removed in order to install the liner. The installation of the liner requires no special commentary.

  • Page 9: Gr.i 181 Filtration Unit Winter Shut-Down Operations

    Remove the GR.I 181 filtration unit from its masonry housing and store it in a location which is protected from inclement weather. Place the power supply cable in the connection box. Fit the winter storage covers on the box in order to seal the unused openings.

  • Page 10: Detailed Views

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 6. Detailed views 6.1 - GR.I 181 filtration unit - Standard version 6.2 - GR.I 181 filtration unit - By-pass option...

  • Page 11: Gr.i 181 Filtration Unit - Salt Electrolyser Option

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 6.3 - GR.I 181 filtration unit - Salt electrolyser option 6.4 - GR.I 181 filtration unit - Electric heater option...

  • Page 12: General Electrical Instructions

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 7. General electrical instructions 7.1 - Electrical connections Electrical connection must be made by a qualified electrician and must comply with standards and/or regulations in force in the country where the unit is being installed.

  • Page 13: Connection Diagram

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 7.4 - Connection diagram Important: The maximum allowable breaking capacity at 230V is 4.5kA (for domestic applications). The installer must modify the breaking capacity of the protective devices if the installation requires this.

  • Page 14: Electric Heater Connection Diagrams

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 7.5 - Electric heater connection diagrams CAUTION: the electric heater requires that a second power cable be installed, in addition to the multiconductor cable required for the filtration and lighting system (see cable size below).

  • Page 15: Spotlight Lamp Change Procedure On The Gr.i 181 Filtration Unit

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 8. Spotlight lamp change procedure on the GR.I 181 filtration unit Only the 12-volt, 50-watt BT D.50 60° halogen lamps can be installed. Disconnect from the transformer to the electrical panel.

  • Page 16: Installation Of Filtration Accessories

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 9. Installation of filtration accessories Identification of filter bags: Refer to the labels on the filter bags. INSTALLATION FILTRATION POOL BOTTOM CLEANING POOL DRAINAGE OPERATION...

  • Page 17: Technical Burst

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 10. Technical Burst Révision 0.5 of 12/01/2018 [07/06 -> ] OPTIONAL PIPINGS...

  • Page 18: Nomenclature

    TECHNICAL INSTRUCTIONS - FILTRATION UNIT GR.I 181 Revision 1.0 of 19/01/18 11. Nomenclature Révision 0.5 of 12/01/2018 [07/06 -> ] I t e m D e s c r i p t i o n Q t y C o d e...
