Summary of Contents for CameXtreme CXTEEG52S6G7T

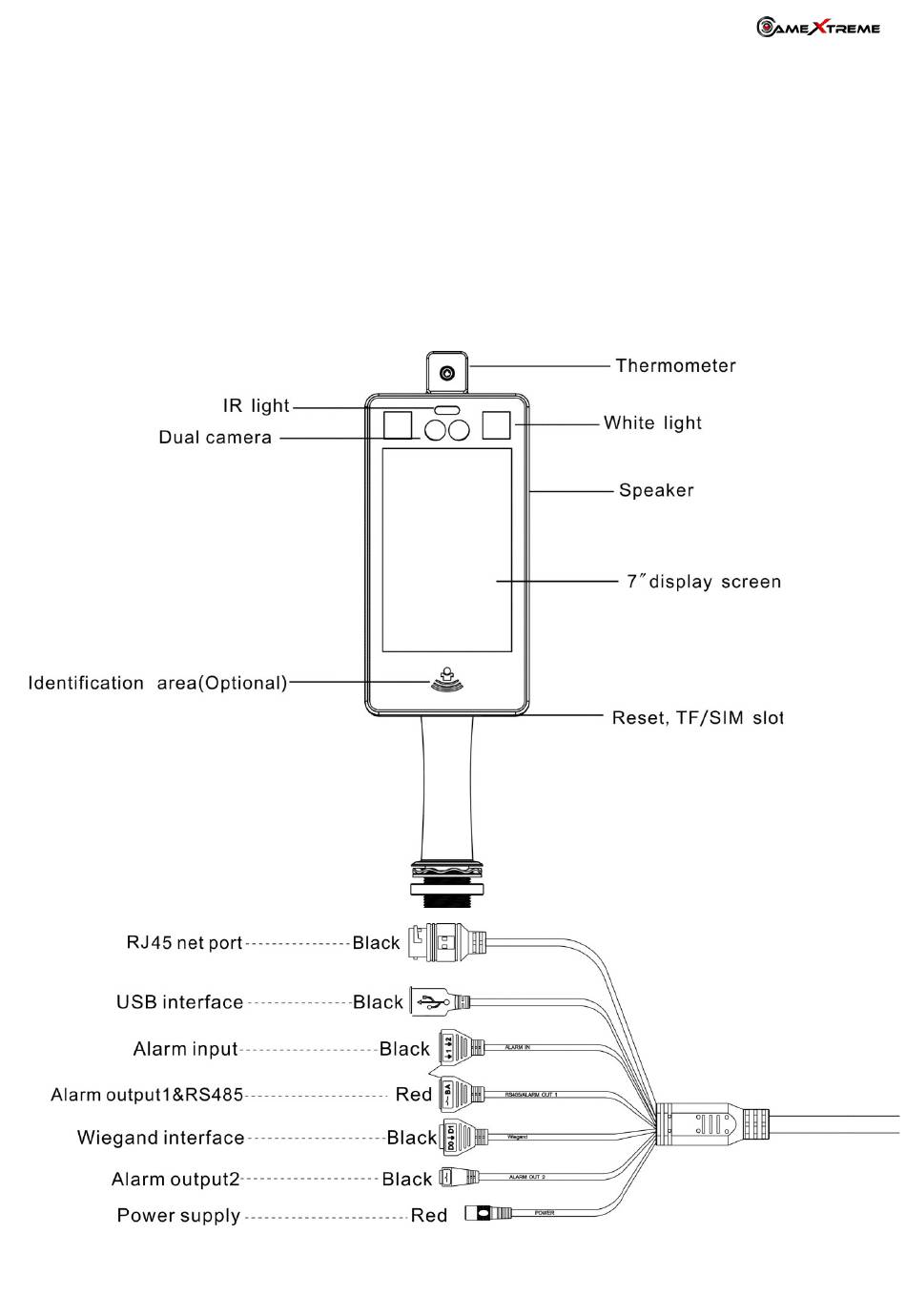

- Page 1 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Temperature Facial Recognition Terminal Quick Operation Manual Ⅰ. Description www.camextreme.net...
- Page 2 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Ⅱ. Dimensions (mm) Ⅲ. Product Parameters Displayer 7” Resolution 800(H)×1280(V), IPS Camera 2MP CMOS Linux Temperature Range 34－42℃ Precision ±0.5℃ Temperature Detection Parameters Response Time ≤1s Measured Distance 30-45cm Minimum Pixels ≥150 pixel Effective Recognition 0.5-1.3m...
- Page 3 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Ⅳ. Installation Requirements ⚫ It is recommended to install indoors, ensure a stable and sufficient lighting environment. When the backlight and lighting conditions are insufficient, supplementary light is required to ensure that the face features are clearly visible, and direct light is required to avoid lest affecting the speed of face recognition.
-
Page 4: Device Connection
MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Ⅵ. Device Operation Note: The device is enabled by default with the function of [pass by people] + [body temperature detection] + [mask check], which can be quickly applied to the scenes that require "fast body temperature initial screening and should wearing masks", and the subsequent settings can be skipped... - Page 5 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Add Face Database Click Face List to enter the face database management interface, as shown in Figure 6-3 Figure 6-3 (1) Individual Face Import Click Add Group, Set Name and Group Type, create a new face group, as shown in Figure 6-4 ⚫...
- Page 6 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Figure 6-4 ⚫ Click Add Face, go to Add Face interface, click Browse to select the face picture that needs to be added, and fill in the relevant information, click confirm to complete the face picture import, as shown in Figure 6-5...
-
Page 7: Access Control
MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Figure 6-6 Access Control ⚫ Support Wiegand, alarm output connect to access control gate , as shown in figure 6-7 Face: authorized the whitelist face recognition verification pass ⚫ Wiegand card: use the authorized IC card to pass ⚫... -
Page 8: Temperature Measurement
MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Temperature Measurement ⚫ Click system → parameter → face detect, enter the temperature setting interface, as shown in figure 6-8 Select enable for temperature measurement function ⚫ Set the temperature threshold, if it higher than this value, the alarm will be triggered, the default is 37.3℃... -
Page 9: Wifi Configuration
MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI WIFI Configuration※ Steps: ⚫ Click System→WIFI，enter into the WIFI configuration page，as shown in figure 6-9 Figure 6-9 ⚫ Connect the device to a specified WiFi hotspot. ⚫ Click the icon to setup the access IP, as shown in figure 6-10... - Page 10 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Figure 6-10 IC Card Configuration※ Note: This is an optional feature for the device. Please make the object as the standard. (1) Read the Card Number ⚫ Click System→Peripheral→Wiegand Config，enter the configuration interface，shown in figure 6-11 ⚫...
- Page 11 MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI (2) Add Card Number to Face Picture ① Single Add ⚫ Click Face List→Add Face，enter into the single add interface，shown in figure 6-12 ⚫ Click Browse to select the face picture. ⚫ Fill in the name information.
-
Page 12: Batch Import
MODEL: CXTEEG52S6G7T/ CXTEEG52S6G7T WI Figure 6-13 ② Batch Import User can also batch input the IC card number by a given name format of the face picture, shown in figure 6-14. Figure 6-14 www.camextreme.net...
