Summary of Contents for Freedom Electric Marine Twin Troller

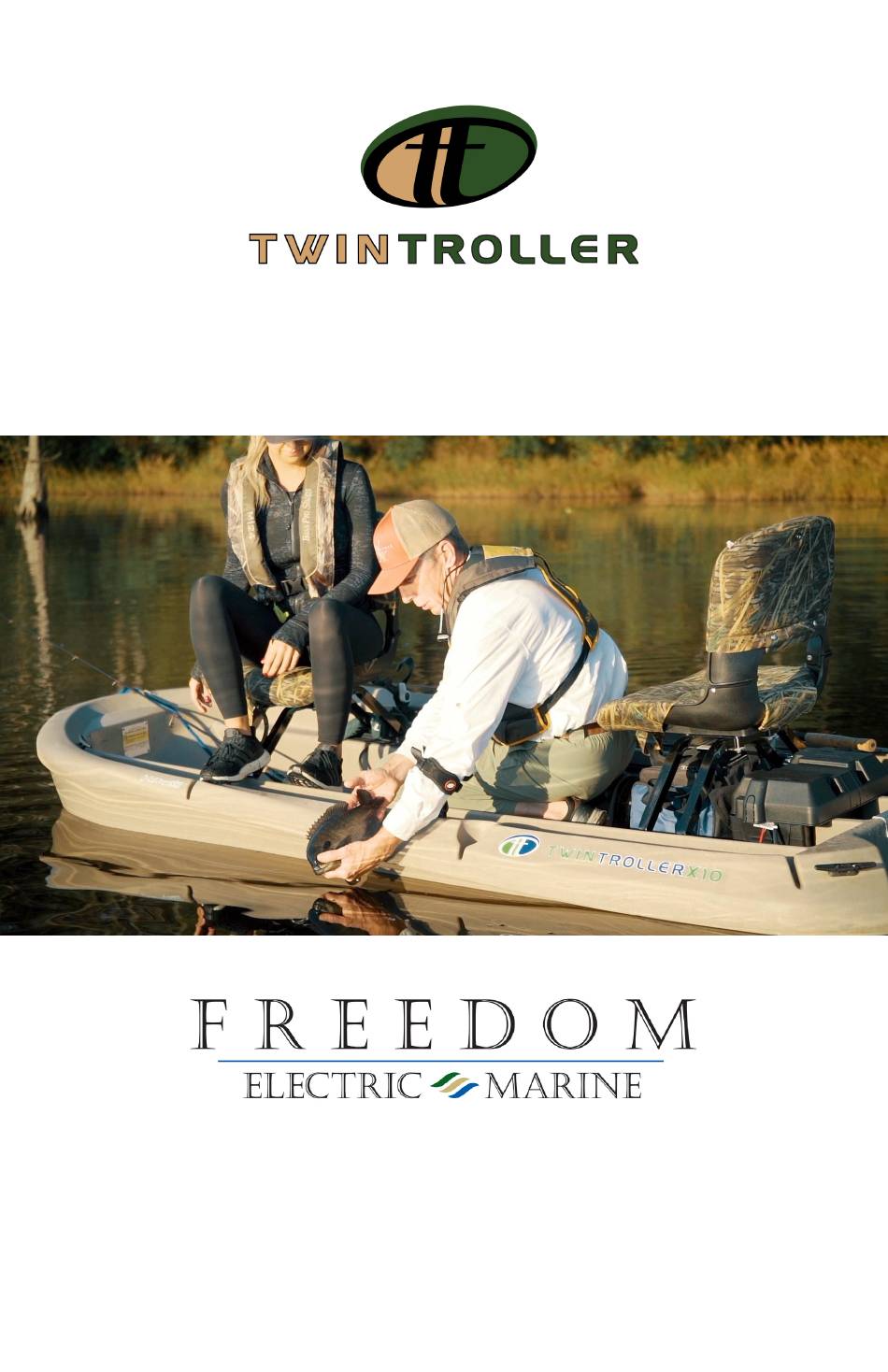

- Page 1 O W N E R ' S M A N U A L PO BOX 1824 ANGIER, NC 27592 (877) 882-0099 FREEDOMELECTRICMARINE.COM...
- Page 3 O W N E R ' S M A N U A L V A L U E D C U S T O M E R , Freedom Electric Marine would like to thank you for choosing us for your boating needs. We strive to make sure that you will be completely satisfied with your purchase and will enjoy your Twin Troller for many years to come.
-
Page 4: Table Of Contents
T A B L E O F C O N T E N T S BOAT SAFETY Personal Flotation Device Capacity Other Safety Precautions WARRANTY & REGISTRATION INFORMATION BOAT SPECIFICATIONS & FEATURES BOAT PREPARATION & SETUP Seat Assembly Seat Installation Foot Pedal Assembly 12V Battery Installation BOAT OPERATION... -
Page 5: Personal Flotation Device
Device (PFD) be worn by all occupants of the boat. Capacity Make sure your weight load, number of persons and horsepower rating are within the limits as shown on the US Coast Guard capacity plate. All Twin Troller boats meet US Coast Guard safety requirements. Other Safety Precautions The Twin Troller is not equipped for nighttime use. -
Page 6: Warranty & Registration Information
L I M I T E D W A R R A N T Y Freedom Electric Marine will honor the warranty to the original owner of the Twin Troller X10. This warranty will apply for a period of 5 years on the HULL and 1 year on the pedal and motor assemblies for product failure associated with manufacturing and workmanship. -
Page 7: Boat Specifications & Features
B O A T S P E C I F I C A T I O N S & F E A T U R E S Length: 120” Width: 48” Hull Weight: Approximately 175 lbs. Capacity: 560lbs including gear, battery, & Outboard motor Max HP Rating: 2HP Hull made of ‘best in class’... -
Page 8: Seat Assembly
& S E T U P SEAT ASSEMBLY Assembling the seats for your Twin Troller is a 2 step Process. First, you must attach the swivels to the seat supports (left image). Next you will attach the seat to the swivel (right image). -
Page 9: Seat Installation
FOOT PEDAL ASSEMBLY The foot pedal assembly and connecting wiring harnesses are the most important components of your Twin Troller X10. They are specifically designed for the X10 to provide years of trouble free operation. However, like all electronic components, care in operation, storage, and routine maintenance are important to ensure years of enjoyment from your boat. - Page 10 BOAT CONTROL AND STEERING For most of our owners, normal operation will be to plug the wiring harness into its corresponding pedal control box; i.e. right wiring harness plug to right pedal control plug receptacle and left wiring harness plug to left pedal control plug receptacle.
-
Page 11: Battery Installation
24 hours 12 VOLT MARINE DEEP CYCLE BATTERY Your Twin Troller is a 12 Volt System and therefore requires the use of one 12 volt marine deep cycle battery. Under normal operating conditions the Twin Troller will provide 6-8 hours of operation on a fully charged 12 volt deep cycle battery (series 29 or 31). -
Page 12: Boat Operation
B O A T O P E R A T I O N PRELAUNCH CHECKLIST Personal Flotation Device (PFD): It is recommended that each person should wear the proper personal floatation device (PFD) when using the boat. Capacity: Refer to the capacity plate for the total weight capacities and number of persons for the boat to make sure you are within the limits. -
Page 13: Electric Motor Operation
ELECTRIC MOTOR OPERATION Your boat is equipped with 2 electric motors that are mounted inside the hull of the boat. Each motor is controlled by an individual pedal control box. Removing obstructions from the motor guard: Both electric motors are protected with motor guards. -
Page 14: Boat Steering
REVERSE MOTION Your Twin Troller operates the same in reverse as it does in forward motion except you’ll be applying heel pressure instead of toe pressure. - Page 15 FULL ROTATION The Twin Troller X10 is capable of a true zero degree turning radius. No other small powered boat on the market has this capability. This feature is extremely helpful when fishing in tight areas, or just having some fun on the water.
-
Page 16: Installing An Outboard Engine
I N S T A L L I N G A N O U T B O A R D M O T O R Your boat comes equipped with an outboard motor mount. DO NOT Exceed the recommended horsepower as indicated on the capacity plate. Mount the motor in accordance with the instructions provided with the outboard motor. -
Page 17: Boat Registration & Numbering
If additional requirements exist, please send the document requiring attention along with an explanation and return address to the following address: Freedom Electric Marine Attn: Frank Jones 8216 Plum Bush Court... -
Page 18: Maintenance
Use in Saltwater The Twin Troller works great in saltwater. As with all things used in and around saltwater, the Twin Troller should be rinsed well with freshwater after each use in... -
Page 19: Storage
Boat Seats Periodically clean with vinyl or fabric cleaner as needed. Boat Hull Periodically clean the hull with soap and water to keep it looking brand new. Stronger household cleaners such as 409 can also be used on tougher stains. S T O R A G E BOAT HULL &... -
Page 20: Troubleshooting
T R O U B L E S H O O T I N G Your Twin Troller X10 is designed and engineered for reliability. There may be times however where troubleshooting is required for proper operation. The following steps are listed in the order in which they should be followed to quickly identify any issue and minimize your time off the water. - Page 21 REMINDER: Always disconnect the battery and foot pedal assembly before physically accessing the motors or the propellers. Call Freedom Electric Marine Customer Service if you need additional assistance. 877-882-0099 ext 3.
- Page 22 Call Freedom Electric Marine Customer Service if you need additional assistance. 877-882-0099 ext 3. For additional questions, troubleshooting tips, common service answers, and a digital version of this Twin Troller X10 Owner's Manual, please go to: freedomelectricmarine.com/pages/maintenance THANKS FOR JOINING OUR TWIN TROLLER FAMILY.
-
Page 23: Purchase Information
P U R C H A S E I N F O R M A T I O N PLEASE FILL IN FOR YOUR FUTURE REFERENCE TWIN TROLLER PURCHASE INFORMATION DATE ON INVOICE: INVOICE #: PURCHASERS NAME(S) ON INVOICE: HULL ID#: TTBB-... - Page 24 PO BOX 1824 ANGIER, NC 27592 (877) 882-0099 FREEDOMELECTRICMARINE.COM ©FREEDOM ELECTRIC MARINE 2021...
