Summary of Contents for ALGAE-X STS 6000-4GPM

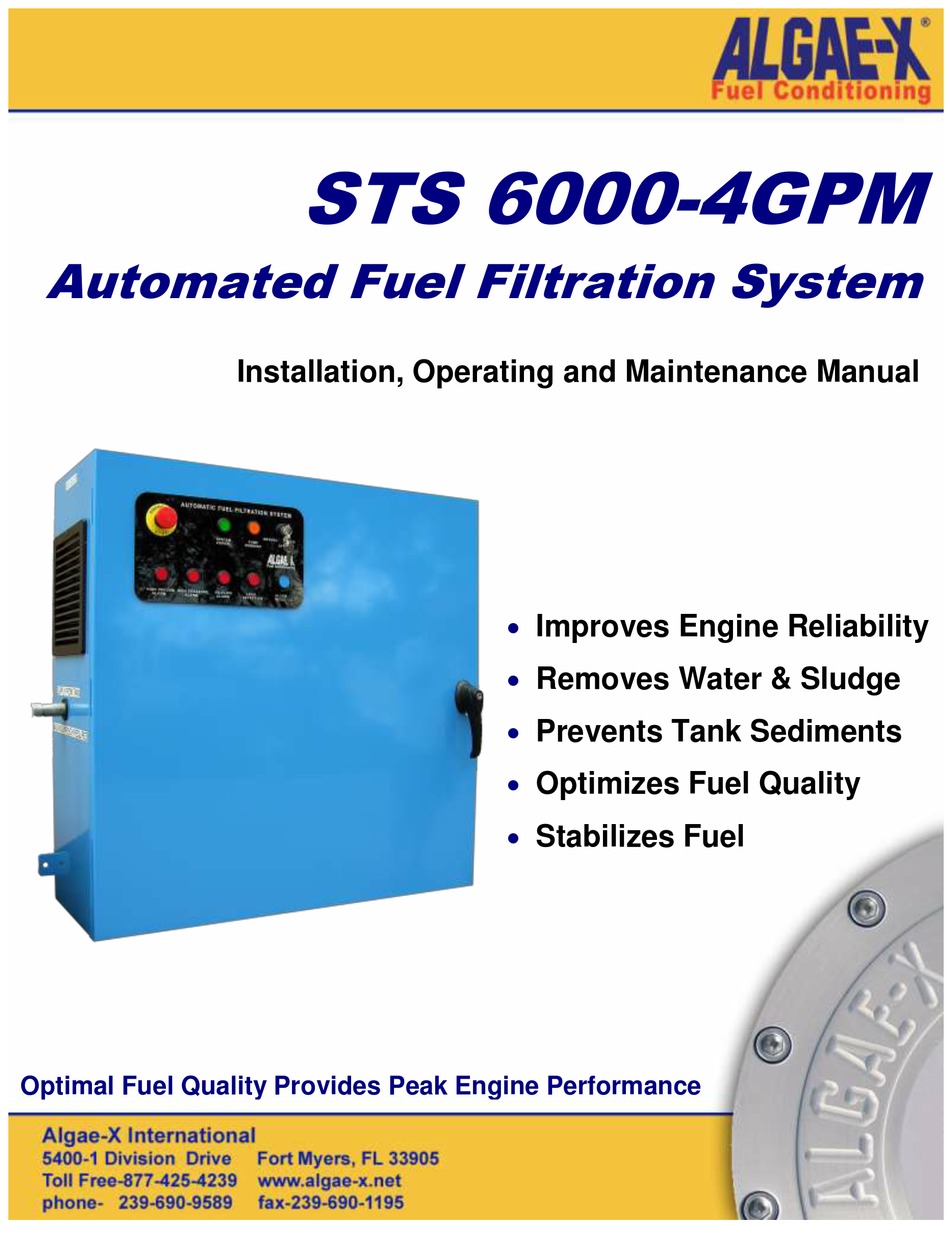

- Page 1 STS 6000-4GPM Automated Fuel Filtration System Installation, Operating and Maintenance Manual Improves Engine Reliability Removes Water & Sludge Prevents Tank Sediments Optimizes Fuel Quality Stabilizes Fuel Optimal Fuel Quality Provides Peak Engine Performance...
-
Page 2: Table Of Contents
AUTOMATED FUEL FILTRATION SYSTEMS WARRANTY ........... 18 TECHNICAL ASSISTANCE AND ORDERING ................ 19 Replacement filter elements ....................19 STS 6000 SYSTEM IDENTIFICATION..................20 APPENDIX A - ABBREVIATIONS USED IN THIS MANUAL ........... 21 APPENDIX B – DRAWINGS ....................21 STS 6000-4GPM ALGAE-X 2007-Rev. B... - Page 3 3 micron Patented Fuel Conditioner reverses fuel deterioration & polymerization to submicron levels Algae-X “Smart Filtration Controller” – UL508A listed Fully automated programmable control Automatic shut-down for high vacuum, filter pressure, leak and flow interruption detection ...
- Page 4 The principal components are a continuous duty motor with coupled gear pump, strainer/primary filter with vacuum sensor & gauge, Algae-X Fuel Conditioner, and a secondary filter with pressure gauge & sensor. The system is automatically operated by the programmable, UL 508A listed...
-
Page 5: Overview - Basic System Components
7) Vacuum Switch 17) Fuel Outlet (To Tank) ® 8) ALGAE-X Smart Filtration Controller 18) Mechanical Flow Meter with Flow Switch 9) Pressure Relief Valve 19) Leak Detector (Float Switch) in Spill Tray 10) Gear Pump STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 6: General Specifications
(NOT for use with fluids that have a flash point below 100F (38C), e.g.: gasoline, alcohol, …) SYSTEM COMPONENTS Control and Safety Devices Algae-X “Smart Filtration Controller” in electrical sub enclosure – UL 508A listed Industrial Control Panel Programmable Digital Timer –Memory backup to retain program memory during power outages ... -
Page 7: Primary Inspection
Stainless steel plumbing PRIMARY INSPECTION Upon arrival, the STS 6000-4GPM Automated Fuel Filtration System and accessories must be visually inspected before installation. Improper handling during shipping may cause physical or electrical problems. Immediately report or note any damages (also concealed ones) to the shipper. -
Page 8: Installation
(e.g.: remote shut down, external emergency stop button). Please note that the contact needs to be supplied with +24V DC from the power supply of the STS 6000 Algae-X Smart Filtration Controller. PLUMBING Use proper quality approved fuel line materials with at least 3/4”... -
Page 9: Typical Plumbing / Above Ground Tank Installation (Schematically)
If any of the STS 6000 system‟s fuel lines are used in combination with the engine‟s fuel system, Note: the STS 6000 should be disabled during engine operation (use the provided “remote pump shut down” feature as shown in the electrical drawing and described above). STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 10: Priming The System
The pressure relief valve has a 35-40 PSI set point. System pressure in excess of 35-40 PSI will cause the pressure relief valve to open and vent fuel back to the fuel transfer pump inlet side. STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 11: Initial Start-Up / Commissioning Checklist
Slide flow switch back into original position and reset alarm by pushing the “RESET ALARM” button. Note: If any of the above described alarm test procedures fail or if any alarm trip value deviates immediately contact Algae-X International. STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 12: Operation
“AUTO” mode positions or till an alarm or overload has been tripped. PROGRAMMING THE TIMER The programmable timer is part of the Micro PLC settings of the Algae-X Smart Filtration Controller located inside the STS 6000 system. The PLC uses military time – all times programmed must be in that format. -
Page 13: Fuel Line Leak
STABILIZING AND OPTIMIZING FUEL QUALITY We recommend treating the fuel with the ALGAE-X® Fuel Catalyst (AFC-705). This will enhance and accelerate the tank cleaning process by breaking down and dissolving existing tank sludge. AFC-705 will decontaminate compartments of the tank that are out of reach of the suction line. Depending on the condition of the fuel and the amount of sludge build-up, it is recommended to initially use a double dose of one to twenty-five hundred (1:2500) instead of one to five thousand (1:5000) This has proven to be essential in accelerating the tank cleaning process. -
Page 14: Maintenance
Slide flow switch back into original position and reset alarm by pushing the “RESET ALARM” button. Note: If any of the above described alarm test procedures fail or if any alarm trip value deviates immediately contact Algae-X International. STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 15: Servicing Primary Filter / Strainer
The signal indicates that it is time to change the filter element. There are several types of Algae-X spin on fine filters available; we recommend using the WBS-3 (3 micron water block fine filter). The Algae-X Water Block incorporates polymer technology to remove emulsified water from fuel. -
Page 16: Troubleshooting
5. Outlet ball valve not fully open 6. Discharge line clogged Pump requires too much power 1. Air in plumbing lines 2. Liquid too viscous 3. Bent pump shaft, binding rotor 4. Misalignment of pump/motor coupler STS 6000-4GPM ALGAE-X 2007-Rev. B... - Page 17 2. Worn pump shaft seal 3. Pump pressure relief valve failure 4. Fuel leak elsewhere and fuel dripping or running towards the pump 5. Excessive head from overhead storage tank 6. Worn pump O-rings or seals STS 6000-4GPM ALGAE-X 2007-Rev. B...
-
Page 18: Automated Fuel Filtration Systems Warranty
(1) year from the date of purchase. This warranty is not intended to supplant normal inspection, care and service of the products covered by the user, and shall not obligate ALGAE-X® to provide free service during the warranty period to correct breakage, maladjustment or other difficulties arising out of abuse, misuse, or improper care and maintenance of such products. -
Page 19: Technical Assistance And Ordering
Larger or smaller capacity, custom designed systems for higher or lower flow rates Two Tank Control Digital Flow Meter Separ Primary Filter (OPTION –S) Foot Valves Rotor Sight Glass STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 20: Sts 6000 System Identification
230 V AC / 50 Hz Primary Filter Element: 178 Micron Stainless Steel 10 Micron 15 Micron Water Block Secondary Filter Element: 3 Micron Water Block 10 Micron Fine Filter Inspected by: ______________________________ Date: ________________ STS 6000-4GPM ALGAE-X 2007-Rev. B... -
Page 21: Appendix A - Abbreviations Used In This Manual
Light Emitting Diode Transducer Pressure Switch Loss of Flow Relay Voltage Low Fuel Level Relay Voltage, Alternating Current Low Pressure Relay Voltage, Direct Current Main Distribution Block Vacuum Gauge Main Disconnect Switch APPENDIX B – DRAWINGS STS 6000-4GPM ALGAE-X 2007-Rev. B...
