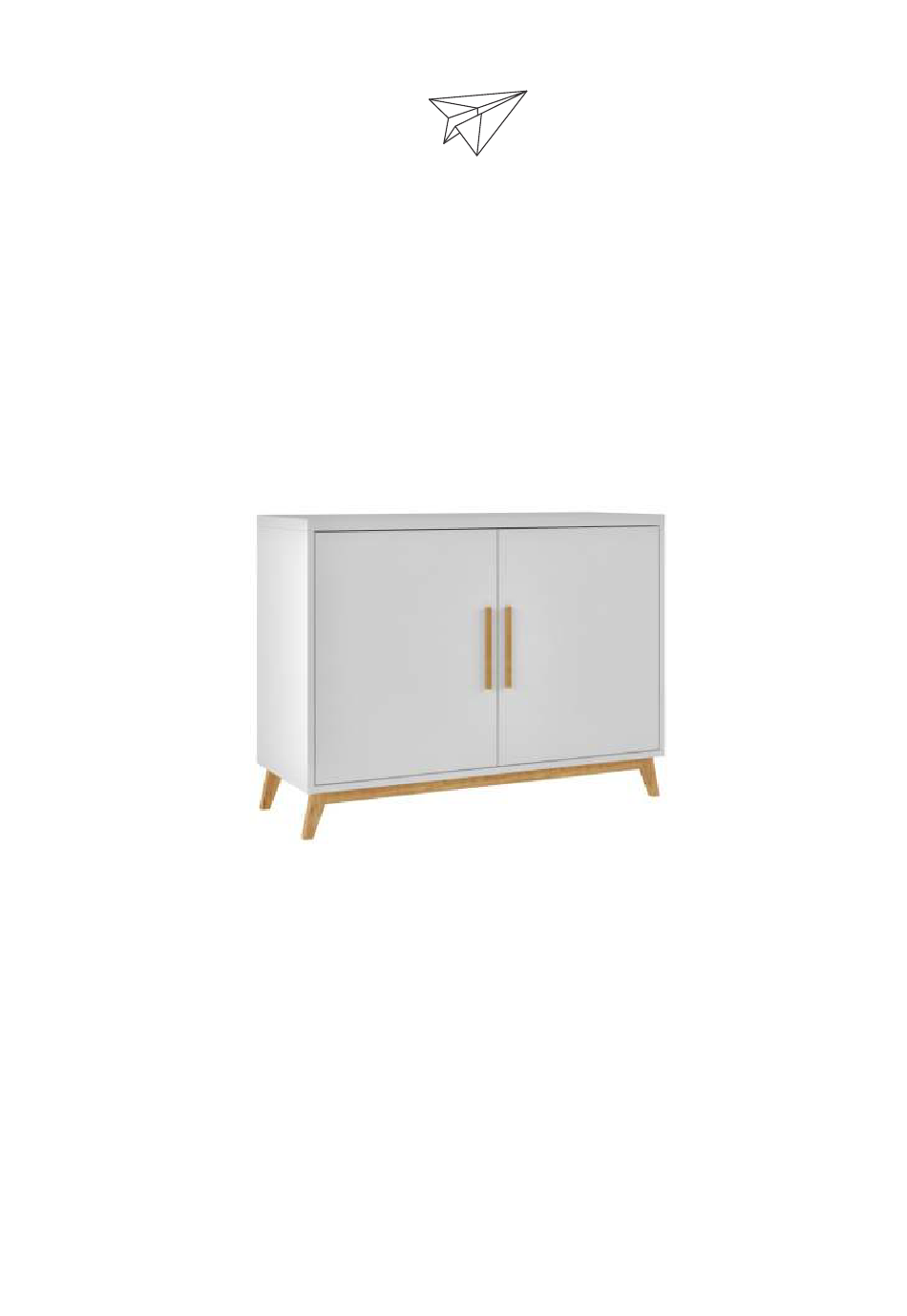

  • Page 1 HOMMY 03-W HOMMY 03-B ASSEMBLY INSTRUCTIONS...

  • Page 3: Table Of Contents

    Summary V : 11/19 Identifying parts Introduction Hardware included in box Avoid accidents Weight Capacity Before Starting Furniture assembly Cleaning Dimensions and tools Introduction Read this manual and follow the steps in order to keep the guarantee and also for the perfect fit.

  • Page 4: Before Starting

    Before starting Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work. Cover the assembly area with a blanket or Use the cardboard of the packaging to carpet to avoid damaging the parts during separate and support the parts removed from the boxes.

  • Page 5: Dimensions And Tools

    Dimensiones and t ools 675 mm 26.57 in You may need help to assembly easier. To improve assembly, use an eletronic screwdriver.

  • Page 6: Identifying Parts

    Identifying parts PART DESCRIPTION BASE LEFT SIDE RIGHT SIDE SHELF LEFT DOOR RIGHT DOOR PARTITION BACK FEET...

  • Page 7: Hardware Included In Box

    Hardware included in bo x EF 000033 - 16 STICKER - 18 EF 000741 - 1 EF 000745 - 4 EF 000132 - 8 CHALK - 01 EF 000025 - 4 HANDLE - 2 EF 000216 - 14 EF 000731 - 2 EF 000106 - 16 EF 000043 - 4 EF 000381 x 4...

  • Page 8: Weight Capacity

    Weight Capacity 12KG - 26.45LB 5KG - 11.02LB STEP 1 Fix hardware EF 000094 in pieces 02, 03, 04 and 05. EF 000094...
  • Page 9 STEP 2 Insert hardware EF 000033 into pieces 03 and 04. Attach hardware EF 000025 using hardware EF 000106. STEP 3 Insert hardware EF 000033 in pieces 05 and 08. Do not insert hardware EF 000033 here. STEP 4 Attach hardware EF 000043 on pieces 06 and 07 using hardware EF 000106.
  • Page 10 STEP 5 Fix piece 10 to piece 01 using hardware EF 000745 and EF 000741. STEP 6 Use hardwares EF 000731 and EF 000132 to connect pieces 05 and 08. EF 000731 EF 000132 STEP 7 Connect the part assembled in the previous step and piece 08, insert hardware EF 000216 and turn to tighten.
  • Page 11 STEP 8 Connect the part assembled in the previous step and pieces 03 and 04 insert hardware EF 000216 and turn to tighten. EF 000025 Please, note hardware EF 000025 position. STEP 9 Fit pieces 09 in the specific spaces in pieces 03 and 04. EF 000025 Please, note hardware EF 000025 position.
  • Page 12 STEP 11 Turn the furniture to connect piece 02 to the part assembled in the previous step insert hardware EF 000216 and turn to tighten. STEP 12 STEP 13 Use stickers to cover apparent screws. Use the chalk to give the final finish on the product. Chalk Sticker...
