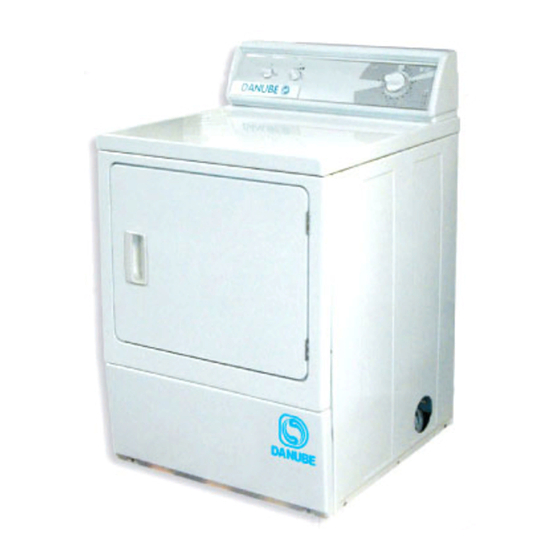

Danube DD8 Instructions For Installation, Use And Maintenance Manual

Danube DD8 Instructions For Installation, Use And Maintenance Manual

Advertisement

DANUBE
INTERNATIONAL
"A world market leader- Le savoir faire du constructeur"
INSTRUCTIONS POUR L'INSTALLATION,
L'UTILISATION ET LA MAINTENANCE /
INSTRUCTIONS FOR INSTALLATION, USE, AND
MAINTENANCE
DD8
(VERSION DD8en.1 06/03/08)
MACHINE N°/SERIAL NUMBER :

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Danube DD8

  • Page 1 DANUBE INTERNATIONAL "A world market leader- Le savoir faire du constructeur" INSTRUCTIONS POUR L’INSTALLATION, L’UTILISATION ET LA MAINTENANCE / INSTRUCTIONS FOR INSTALLATION, USE, AND MAINTENANCE (VERSION DD8en.1 06/03/08) MACHINE N°/SERIAL NUMBER :...
  • Page 2 The technical documents contain informations that are priviliged confidential. You are hereby notified that any disclosure copying is strictly prohibited. We will proceed against any body copying these documents. Les documents techniques comportent des informations confidentielles. Nous tenons à porter à votre connaissance qu’il est interdit de dévoiler et copier ces documents et que nous engagerons des procédures contre les auteurs des dites copies.
  • Page 3 Clothes Dryers Electric and Gas Models...
  • Page 4 WARNING FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. W033 • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 5: Table Of Contents

    Table of Safety Information................3 Explanation of Safety Messages............3 Important Safety Instructions ............. 3 Contents Installation..................5 Dimensions and Specifications............5 Installing the Dryer ................6 Step 1: Position and Level the Dryer ..........6 Step 2: Connect Dryer Exhaust System ......... 6 Step 3: Connect Gas Supply Pipe (Gas Dryer Only)................
  • Page 6: Safety Information

    Safety Information Explanation of Safety Messages Important Safety Instructions Throughout this manual and on machine decals, you Save These Instructions will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific WARNING instructions. These precautions are intended for the personal safety of the operator, user, servicer, and To reduce the risk of fire, electric shock, those maintaining the machine.
  • Page 7 10. Do not use fabric softeners or products to 21. If supply cord is damaged, it must be replaced by eliminate static unless recommended by the a special cord or assembly available from the manufacturer of the fabric softener or product. manufacturer or its service agent.
  • Page 8: Installation

    Installation Dimensions and Specifications 569 mm (22.38 in.) 391 mm (15.4 in.) 203 mm (8.0 in.) *114 mm (4.5 in.) 11 mm 597 mm 683 mm (0.4 in.) (23.5 in.) (26.9 in.) DRY2199N *102 mm 711 mm (4.0 in.) (28 in.) diameter 100mm ELECTRIC DRYERS DRY2199N...
  • Page 9: Installing The Dryer

    Installing the Dryer Step 2: Connect Dryer Exhaust System NOTE: This manual is only a supplement. Refer to WARNING installation/operation manual for full instructions. A clothes dryer produces combustible Step 1: Position and Level the Dryer lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors.
  • Page 10: Step 3: Connect Gas Supply Pipe (Gas Dryer Only)

    Step 3: Connect Gas Supply Pipe 2. Remove the shipping cap from the gas connection at the rear of the dryer. (Gas Dryer Only) 3. Connect to gas supply pipe. For further assistance, refer to section on Gas Requirements. 4. Tighten all connections securely. 1.
  • Page 11: Step 4: Wipe Out Inside Of Dryer

    Step 4: Wipe Out Inside of Dryer D210IE1C GAS DRYERS GAS DRYERS D210IE1C D618I Figure 6 Step 6: Check Installation D618I Figure 4 Step 5: Connect the Dryer to Electrical Power ELECTRIC DRYERS D723I Figure 5 © 511472 (EN)
  • Page 12: Heat Source Check

    Heat Source Check Electrical Requirements NOTE: This manual is only a supplement. Refer to NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. installation/operation manual for full instructions. Electric Dryers Electric Dryers Close the loading door and start the dryer in a heat Refer to serial plate for requirements.
  • Page 13: Gas Dryers

    Gas Dryers To attach customer-supplied three-phase power cord (400 Volt WYE): NOTE: This manual is only a supplement. Refer to 1. Remove electrical access panel on rear of installation/operation manual for full instructions. machine. (230 Volt, 50 Hertz, 2 Wire Plus Earth, 10 Amp 2.
  • Page 14: Gas Requirements

    Gas Requirements The unit must be isolated from the gas supply piping system by closing the equipment shut-off valve during any pressure testing of the gas supply piping system at NOTE: This manual is only a supplement. Refer to test pressures equal to or less than 50 mbar. installation/operation manual for full instructions.
  • Page 15: Location Requirements

    Location Requirements NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. 1066.8 mm (42 in.) FRONT VIEW SIDE VIEW FRONT VIEW (w/o Closet Door) (Closet Door) (Closet Door) D823I Area Free Standing/Alcove Installation Closet Installation 0 mm (0 in.) minimum 0 mm (0 in.) minimum 304.8 mm (12 in.) minimum...
  • Page 16: Dryer Exhaust Requirements

    Dryer Exhaust Requirements IMPORTANT: Failure to exhaust dryer properly will void warranty. NOTE: This manual is only a supplement. Refer to Exhaust System Materials installation/operation manual for full instructions. NOTE: Venting materials are not supplied with the dryer (obtain locally). WARNING Rigid metal duct is recommended.
  • Page 17: Exhaust Direction

    Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. EXCEPTION: Gas dryers cannot be vented out the left side because of the burner housing. Weather Hood Type Number of 90°...
  • Page 18: Dryer Airflow

    Dryer Airflow MAXIMUM STATIC PRESSURE IN WATER COLUMN 50 Hertz 10 mm (0.4 in.) MANOMETER EXHAUST D012IE0A DUCT MEASURING STATIC PRESSURE Measuring Static Pressure D012IE0A Manometer Exhaust Duct Figure 11 © 511472 (EN)
  • Page 19: Operation

    Operation Operation Instructions Step 3: Close Loading Door NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions. Step 1: Clean Lint Filter D688I D688I Figure 14 Step 4: Select Temperature Setting D689I No Heat D689I DRY472N Figure 12 Medium Temperature/Delicates...
  • Page 20: Step 5: Set Timer Knob

    Step 5: Set Timer Knob Step 7: Remove Laundry Select Fabric/Temperature setting. Permanent Press DRY477N Normal DRY481N D718i Delicates D718I DRY484N Figure 16 Time Dry End of Cycle Signal DRY485N Heat Sound Level DRY478N DRY475N No Heat Sound Range (Low to High) DRY479N DRY476N Less Dry...
  • Page 21: Disposal Of Unit

    Traitement des appareils électriques et électroniques en fin de vie Ce symbole apposé sur le produit ou sur son emballage, indique que ce produit ne doit pas être traîté avec les déchets ménagers. Il doit être remis à un point de collecte approprié pour le recyclage des équipements électriques et électroniques.
