Summary of Contents for Out & Out HOMMY 04-W

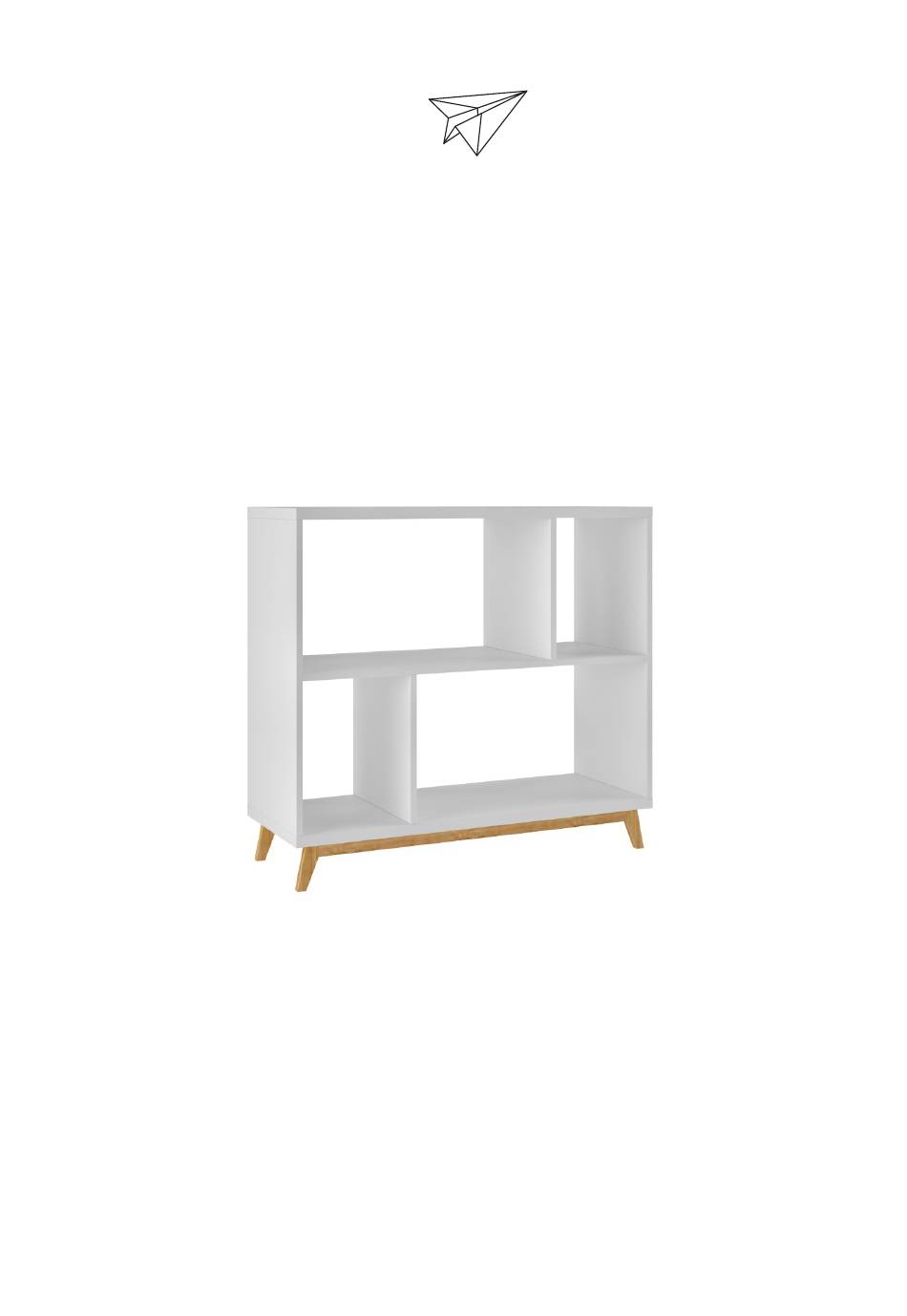

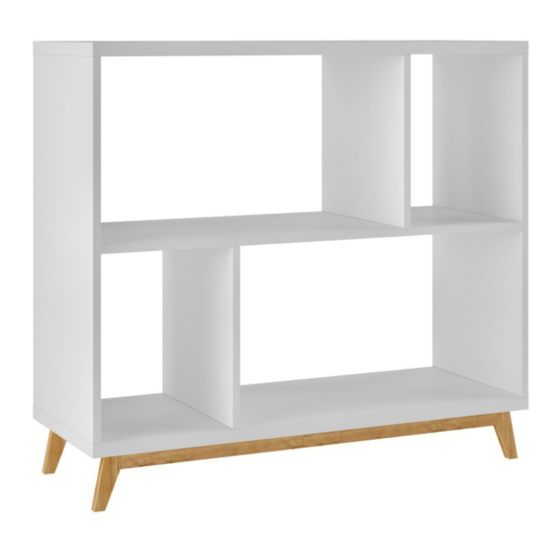

- Page 1 HOMMY 04-W HOMMY 04-B ASSEMBLY INSTRUCTIONS...
-
Page 3: Table Of Contents
Summary V : 11/19 Iden fying parts Introduc on Hardware included in box Avoid accidents Weight Capacity Before Star ng Furniture assembly Cleaning Dimensions and tools Introduc on Read this manual and follow the steps in order to keep the guarantee and also for the perfect fit. -
Page 4: Before Star Ng
Before star ng Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work. Cover the assembly area with a blanket or Use the cardboard of the packaging to carpet to avoid damaging the parts during separate and support the parts removed from the boxes. -
Page 5: Dimensions And Tools
Dimensiones and tools 825 mm 32.48 in You may need help to assembly easier. To improve assembly, use an eletronic screwdriver. -
Page 6: Iden Fying Parts
Iden fying parts PART DESCRIPTION BASE SIDE SHELF PARTITION FEET... -
Page 7: Hardware Included In Box
Hardware included in box EF 000033 - 20 EF 000741 - 1 STICKER - 16 EF 000745 - 4 EF 000132 - 8 CHALK - 01 EF 000216 - 12 EF 000094 - 12... -
Page 8: Weight Capacity
Weight Capacity 12KG - 26.45LB 7KG - 15.43LB 3KG - 6.61LB STEP 1 Fix hardware EF 000094 in pieces 02, 03 and 04. EF 000094... - Page 9 STEP 2 Insert hardware EF 000033 into pieces 03. STEP 3 Insert hardware EF 000033 in pieces 04 and 05. STEP 4 Fix pieces 06 to piece 01 using hardware EF 000745 and EF 000741.
- Page 10 STEP 5 Use hardwares EF 000216 and EF 000132 to connect pieces 04 and 05. After inserting, turn hardware EF 000216 to tighten. STEP 6 Connect the part assembled in the previous step and pieces 03, insert hardware EF 000216 and turn to tighten. STEP 7 Connect the part assembled in the previous step and piece 02, insert hardware EF 000216 and turn to tighten.
- Page 11 STEP 8 Connect the parts assembled in the steps 4 and 7 using hardware EF 000132. STEP 9 Use stickers to cover apparent screws. Use the chalk to give the final finish on the product. Chalk Sticker...
