RelaDyne LUBRIMATE Installation & Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

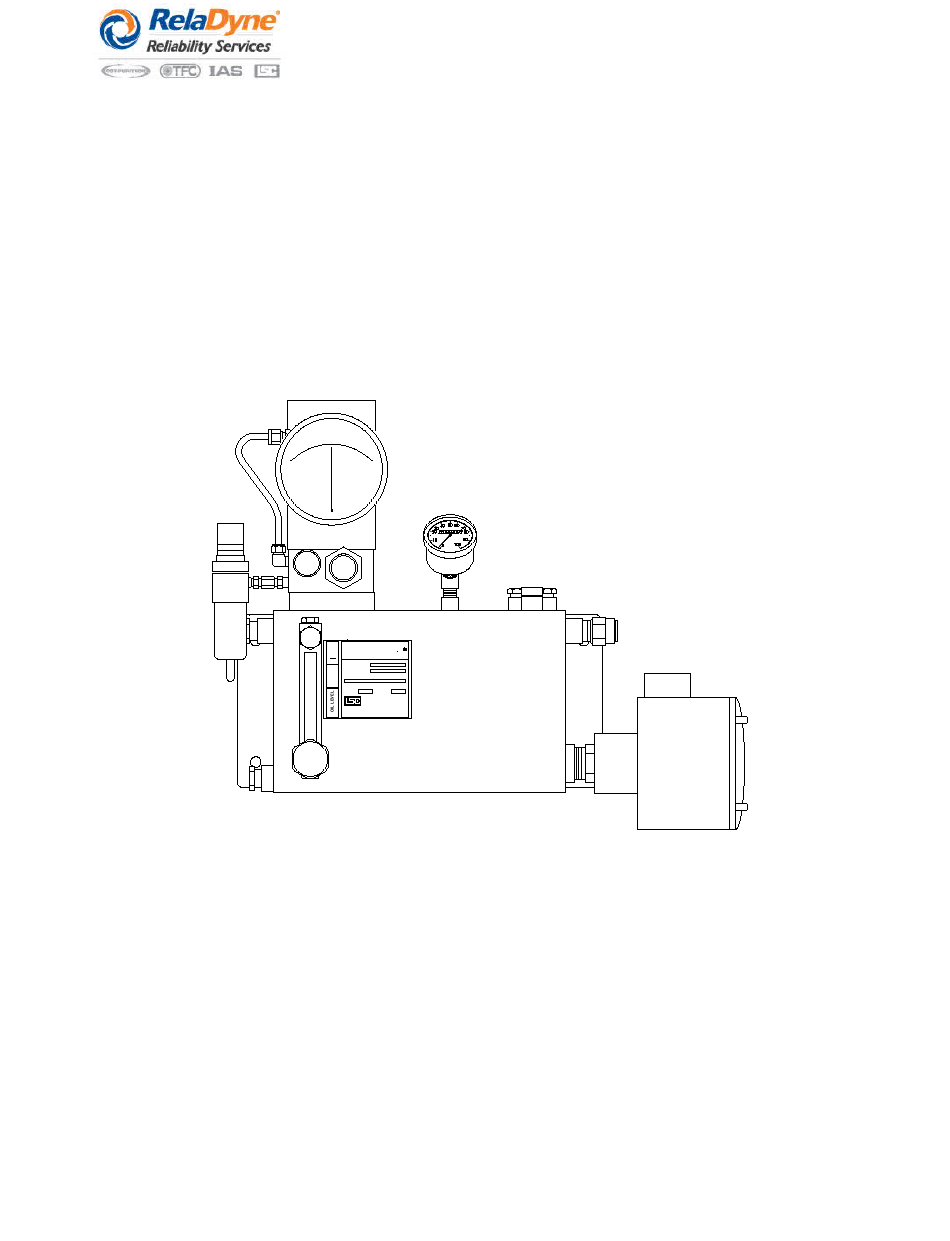

INSTALLATION & OPERATION
LubriMist
MODEL NO.
FULL
SERIAL NO.
MIST PRESSURE SWITCH RATING
ADD
OIL HEATER
VOLTS
WATTS
Lubrication
Systems
Company
THE RIGHT CHOICE
P.O. BOX 19294
HOUSTON,TEXAS 77224-9294
713/464-6266
·
FAX 713/464-9871
·
1-800-800-LUBE
www.lsc.com
LUBRIMATE
MANUAL
®
LUBRICATION SYSTEM
Rev. 3F Aug 2020
P/N 77740213

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUBRIMATE and is the answer not in the manual?

Questions and answers

Related Manuals for RelaDyne LUBRIMATE

Summary of Contents for RelaDyne LUBRIMATE

  • Page 1 INSTALLATION & OPERATION MANUAL LubriMist MODEL NO. FULL SERIAL NO. MIST PRESSURE SWITCH RATING OIL HEATER VOLTS WATTS Lubrication Systems Company THE RIGHT CHOICE P.O. BOX 19294 HOUSTON,TEXAS 77224-9294 713/464-6266 · FAX 713/464-9871 · 1-800-800-LUBE www.lsc.com ® LUBRIMATE LUBRICATION SYSTEM...
  • Page 2 Oil Mist Lubrication System provides oil mist lubrication to rotating machinery and equipment. Its design allows ® for easy installation and use during equipment operation. The LubriMate Oil Mist Lubrication System is designed for application to bearings, gearboxes, chains, and sliding surfaces in various industrial machinery and equipment that will be lubricated with oil mist.
  • Page 3 The lubricant/air mixture is conveyed through tubing, metered by an application fitting, and then introduced into the ® bearing housing. A drain tube connects the bearing housing drain to any of five return ports located on the LubriMate . The air stripper separates the remaining oil from the returned oil mist.

  • Page 4: Compressed Air Supply

    ® Locate the LubriMate near the horizontal mid point of all bearings to be serviced. The LubriMate Lubricating System should be installed in work areas that are well ventilated. As with any equipment that utilizes compressed air, the area in which it is installed should evacuate to an exterior open space.
  • Page 5 ® spindle shaft. Application fittings should be installed in the upper hemisphere of the bearing housing and not on the LubriMate Flow from the reclassifier should be directed downward from the horizontal. The mist should be required to pass through no more than two rows of rolling elements (double row ball bearing).
  • Page 6 Selection of Application Fittings (Mist Reclassifiers) ® Included with the LubriMate Unit are three sizes of application fittings (mist reclassifiers). A quantity of five for each type of application fittings is provided to suit a range of oil mist flow requirements: •...
  • Page 7 ® ® To insure proper generation of oil mist a minimum airflow must be provided to the internal mist head in the LubriMate . If the application requires only one lubrication point or a combination of mist reclassifiers that have a combined flow of less ®...
  • Page 8 1. Fill the reservoir to the fill mark. DO NOT OVERFILL! The oil fill port is located on the left side of the reservoir. A supply of ® ISO 68 grade lubricant is included with the LubriMate . Although this grade of oil will suit the lubrication requirements for the majority of all applications, a check should be made to insure suitability for the equipment being serviced.
  • Page 9 Remove and check the oil suction screen for plugging or restrictions. Clean and replace as needed. ® NOTE: In order to check the oil suction screen, it is necessary to shut down and restart the LubriMate ® Verify that the LubriMate is operating within the recommended minimum operating temperature (see page.
  • Page 10 Rev. 3F Aug 2020 P/N 77740213 Dimensions MIST SUPPLY MIST SUPPLY CONN 1/4 NPT (4) CONN 1/4 NPT (5) AIR SUPPLY 1/8 NPT 7 5 8 " 22 3 4 " 16 1 2 " LubriMist MODEL NO. FULL SERIAL NO. MIST PRESSURE SWITCH RATING OIL HEATER VOLTS...
  • Page 11 Rev. 3F Aug 2020 P/N 77740213 ® Parts and Accessories for the LubriMate Lubrication System ((2) ((3) ((4) ((1) ((8) (10) ((12) ((13) LubriMist MODEL NO. FULL SERIAL NO. MIST PRESSURE SWITCH RATING OIL HEATER VOLTS WATTS Lubrication Systems Company THE RIGHT CHOICE P.O.
  • Page 12 Items shown below are available from manufacturer for purge mist application. Items must be purchased seperately 77-600-822 - Purge Mist Vent/Fill Assembly 77-700-217 - Purge Mist Vent/Fill Assembly ® Wiring Diagrams for the LubriMate Lubrication System 120 VAC - 250 Watt 120 VAC / 1 PH / 250 WATT WATT DENSITY 10.6...

  • Page 13: Notes And Records

    Rev. 3F Aug 2020 P/N 77740213 Notes and Records Page...
