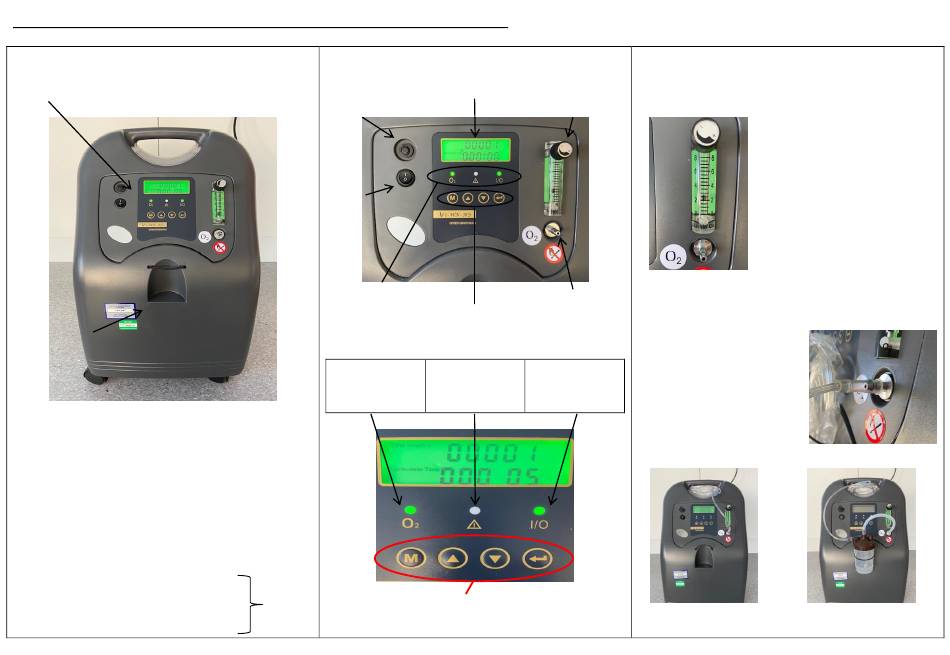

Quick Guide - V5 / V8 OXYGEN CONCENTRATOR USER GUIDE AND MAINTENANCE – Page 1

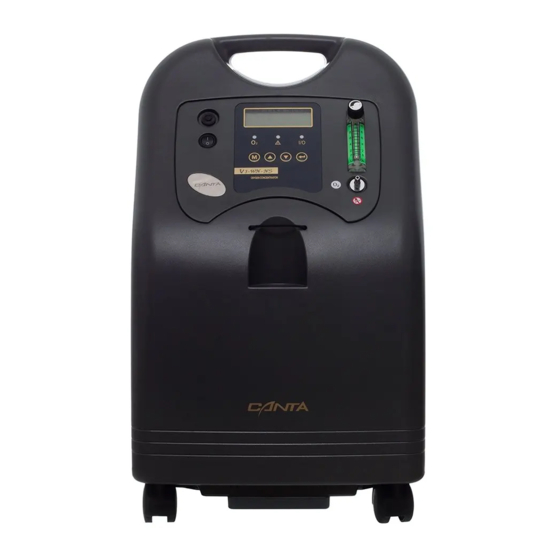

V5 / V8 OXYGEN CONCENTRATOR FRONT VIEW
Control Panel
Humidifier bottle Concavity
ALARMS
Power off alarm sound:
Concentrator connected with power but the unit is in a
state of power off with alarm sound.
Check the power cord for good connection or that the
external power supply has been turned on.
Oxygen purity alarm sound:
Alarm will sound in addition to red indicator light if
oxygen concentration purity % drops.
Alarm Coding:
10000 – overheat warning
02000 – Valve Defective Warning
00300 – over pressure warning (blockage)
00040 – low pressure warning (leakage)
CONTROL PANEL
Display screen
Reset button
On/off Switch
Indicator lights
Stop clock/Timer buttons
INDICATOR LIGHTS
Oxygen purity Trouble indicator
Off - Working good
Green – Optimal
Red - Defective
Red – Oxygen
purity % drops
DO NOT USE STOP CLOCK/TIMER BUTTONS
MESU
OXYGEN FLOW CONTROL VALVE
DO NOT OVER TIGHTEN FLOW VALVE KNOB WHEN CLOSING!
DO NOT TAKE THE FLOW VALVE BALL TOO HIGH ABOVE THE
MAXIMUM NUMBER SHOWN!
Oxygen flow valve
Oxygen outlet
OXYGEN OUTLET
Oxygen tubing
Connect nasal
Power indicator
cannula/Mask direct to
Green – Power on
oxygen outlet or via the
Red – Power off
alarm humidifier bottle if in
use.
V5: 0-5 l/min
V8: 0-8 l/min
Setting flow rate:
Turn the flow control valve:
Counter-clockwise: on
Clockwise: off
