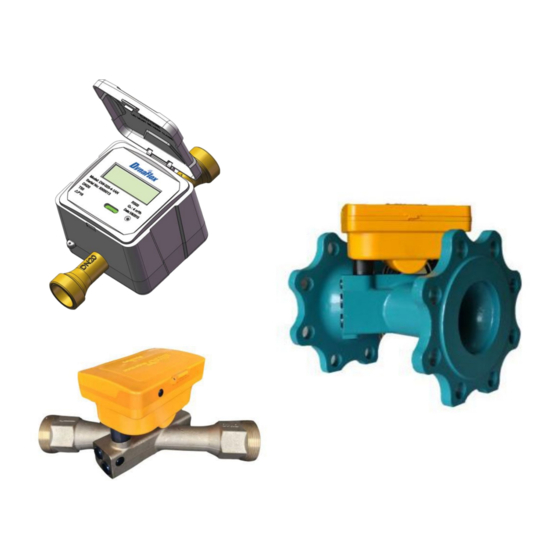

Summary of Contents for Dynaflox ultraD

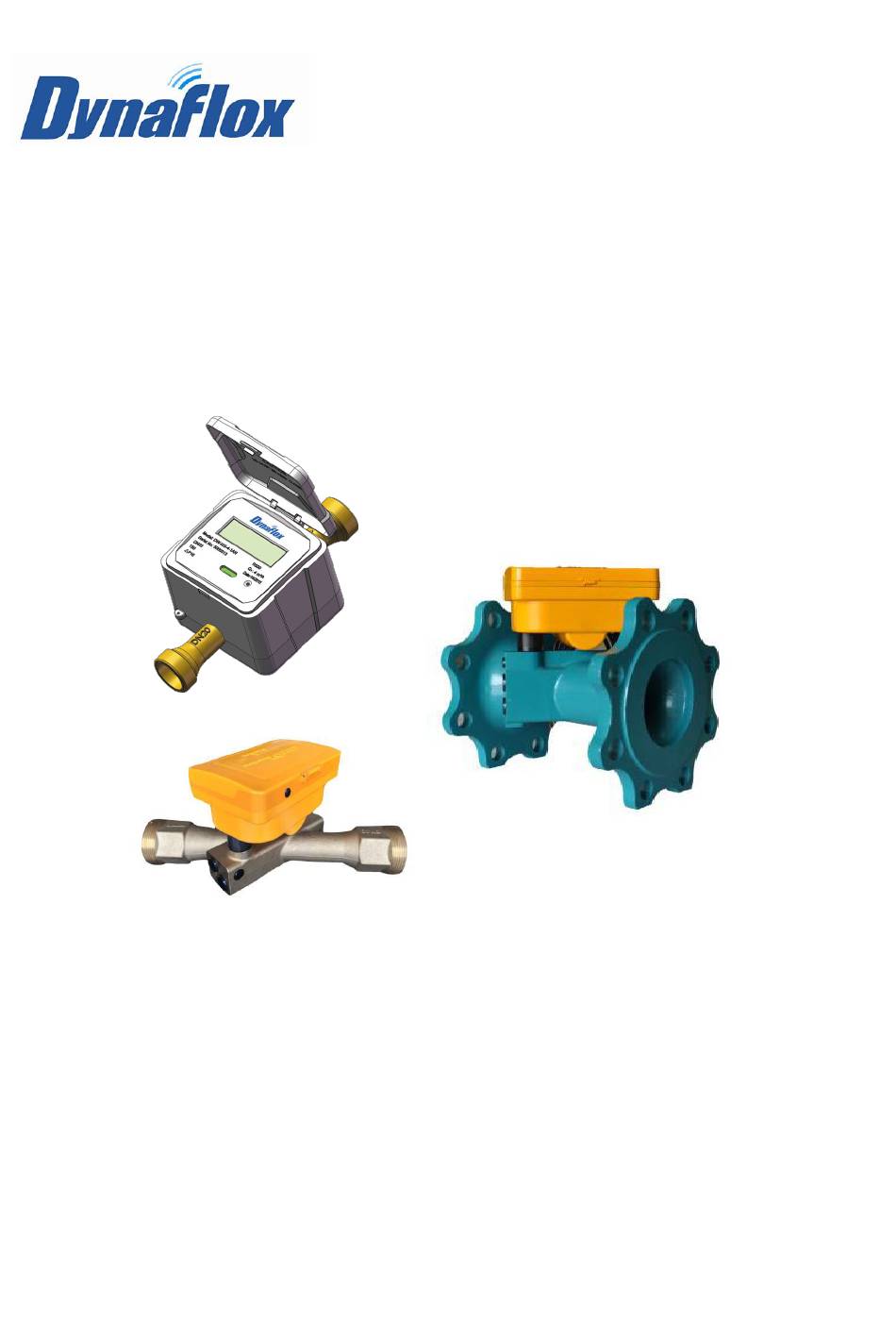

- Page 1 D Water Meter ultra Manual Dynaflox Shanghai Co., Ltd. 03/2016...
-
Page 2: Table Of Contents
Series Water Meter Manual Contents 1. Overview and Warnings............................1 2. Technical Specifications............................2 3. Installation.................................3 3.1 Dimensions and Installation..........................3 3.2 Location and Position............................5 4. Display Description..............................6 4.1 Digital Display (DN15-25)..........................6 4.2 Digital Display (DN32-300)..........................6 5. Modbus Communication Protocol.........................7 5.1 Modbus-RTU Protocol Introduction........................7... -
Page 3: Overview And Warnings
The measurement method of ultraD water meter is based on dual path, transit-time, ultrasonic technology. The ultraD water meters combine measurement, calculation and display, and can be widely used for regional water supply systems and cooling water systems, etc. Read these instructions carefully before beginning installation and save them for future reference. -
Page 4: Technical Specifications
Series Water Meter Manual 2. Technical Specifications Maximum Working Pressure 1.6MPa Temperature Class T30, T50 (Higher temperature customizable) Accuracy Class Class 2 (ISO4064:2005) Battery Life 10 years, 20 years Ingress Protection IP68 Environment Temperature -20~70 C, ≤100%RH Pressure Loss △p10... -
Page 5: Installation
Series Water Meter Manual 3. Installation 3.1 Dimensions and Installation (mm) Meter Size (inch) 1 1/4 1 1/2 L- Length (mm) B - Width (mm) H - Height (mm) H1 - Height (mm) h - Height (mm) L1-Length (mm) - Page 6 Series Water Meter Manual DN50-DN300 (mm) Meter Size (inch) 2 1/2 L- Length (mm) B - Width (mm) H - Height (mm) 374.5 414.5 h - Height (mm) 142.5 197.5 222.5 d x n 18x4 18x4 18x4 18x4 18x4...
-
Page 7: Location And Position
Series Water Meter Manual 3.2 Location and Position Only suitable for bulk water meters from DN50 to DN300 A) Proper Installation B) Wrong Installation C) Recommendations for achieving top performance 3 pipe diameters before and Minimum of 6 pipe diameters before... -
Page 8: Display Description
Series Water Meter Manual 4. Display Description The cumulative flow, instantaneous flow and the status flag are displayed on the LCD screen. It can offset the drawbacks of the past magnet rod operation which requires to switch the display screen to see all parameters of the meter. -
Page 9: Modbus Communication Protocol
Series Water Meter Manual Flow direction Alarm, means empty pipe or error The pulse output function has been open Infrared communication The battery power is low, please replace the battery as soon as possible ... -
Page 10: Register List
Series Water Meter Manual 2 bytes 2 bytes (register address) (number of register) The first two bytes are the first address of the register to be read; The last two bytes are the number of register to be read (up to 22). - Page 11 Series Water Meter Manual Number of historical data 0x9002 per mouth Historical data per hour 0xA000 long Time Positive cumulative flow 0xA002 long (integer part) Positive cumulative flow 0xA004 long (decimal part) Negative cumulative flow 0xA006 long (integer part)
- Page 12 Series Water Meter Manual Positive cumulative flow 0xC002 long (integer part) Positive cumulative flow 0xC004 long (decimal part) Negative cumulative flow 0xC006 long (integer part) Negative cumulative flow 0xC008 long (decimal part) 0xC00A long Time Positive cumulative flow 0xC00C...
-
Page 13: Handheld Operator Description
Series Water Meter Manual 6. Handheld Operator Description The accumulative flow, instantaneous flow and the status flag of the meter are displayed on the LCD screen without additional operations, but in order to meet some users’ special requirements, the company has developed a special tool to configure the meter - wireless handheld operator. -
Page 14: Replace Battery
Series Water Meter Manual About the detail operation, please see our handheld operator manual. 7. Replace Battery This product uses 3.6V lithium battery and the battery can be used for more than 10 years. When battery voltage is low, the screen will display the symbol, indicating that the user needs to replace the battery. -
Page 15: Troubleshooting And Sales Commitments
1) Damage caused by human factors, such as smashing, wrestling, etc. 2) Damage caused by irresistible factors, such as lightning, etc; 3) The product is opened, modified or repaired by any person other than a technician from Dynaflox or if it is repaired using unauthorized parts. - Page 16 Series Water Meter Manual NivoTech www.nivotech.dk Dynaflox Shanghai Co., Ltd. www.dynaflox.com *The Company reserves the right to modify the information of the products. It is subject to change without notice *Publication Date: June, 2015...
