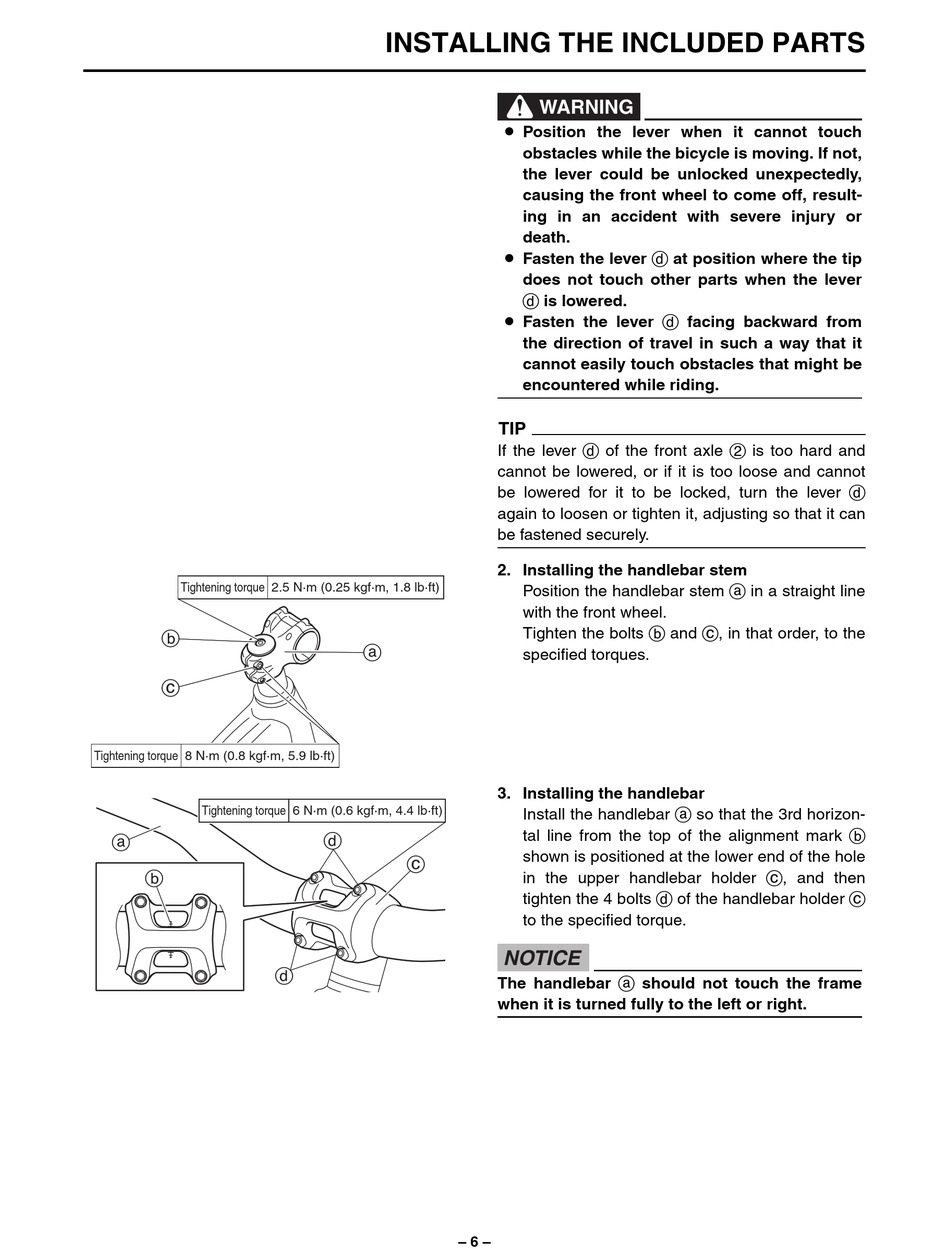

Yamaha YDX-MORO Pro Assembly Manual page 8

Tightening torque 2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
b
c
Tightening torque 8 N·m (0.8 kgf·m, 5.9 lb·ft)
Tightening torque 6 N·m (0.6 kgf·m, 4.4 lb·ft)
a
b
INSTALLING THE INCLUDED PARTS
a
d
c
d
WARNING
8 Position the lever when it cannot touch
obstacles while the bicycle is moving. If not,
the lever could be unlocked unexpectedly,
causing the front wheel to come off, result-
ing in an accident with severe injury or
death.
8 Fasten the lever d at position where the tip
does not touch other parts when the lever
d is lowered.
8 Fasten the lever d facing backward from
the direction of travel in such a way that it
cannot easily touch obstacles that might be
encountered while riding.
TIP
If the lever d of the front axle 2 is too hard and
cannot be lowered, or if it is too loose and cannot
be lowered for it to be locked, turn the lever d
again to loosen or tighten it, adjusting so that it can
be fastened securely.
2. Installing the handlebar stem
Position the handlebar stem a in a straight line
with the front wheel.
Tighten the bolts b and c, in that order, to the
specified torques.
3. Installing the handlebar
Install the handlebar a so that the 3rd horizon-
tal line from the top of the alignment mark b
shown is positioned at the lower end of the hole
in the upper handlebar holder c, and then
tighten the 4 bolts d of the handlebar holder c
to the specified torque.
NOTICE
The handlebar a should not touch the frame
when it is turned fully to the left or right.
– 6 –
