Yamaha YDX-MORO Pro Assembly Manual page 14

Tightening torque 1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
3
1
2
4
a
Tightening torque 40 N·m (4.0 kgf·m, 30 lb·ft)
1
Tightening torque 2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
6
5
4

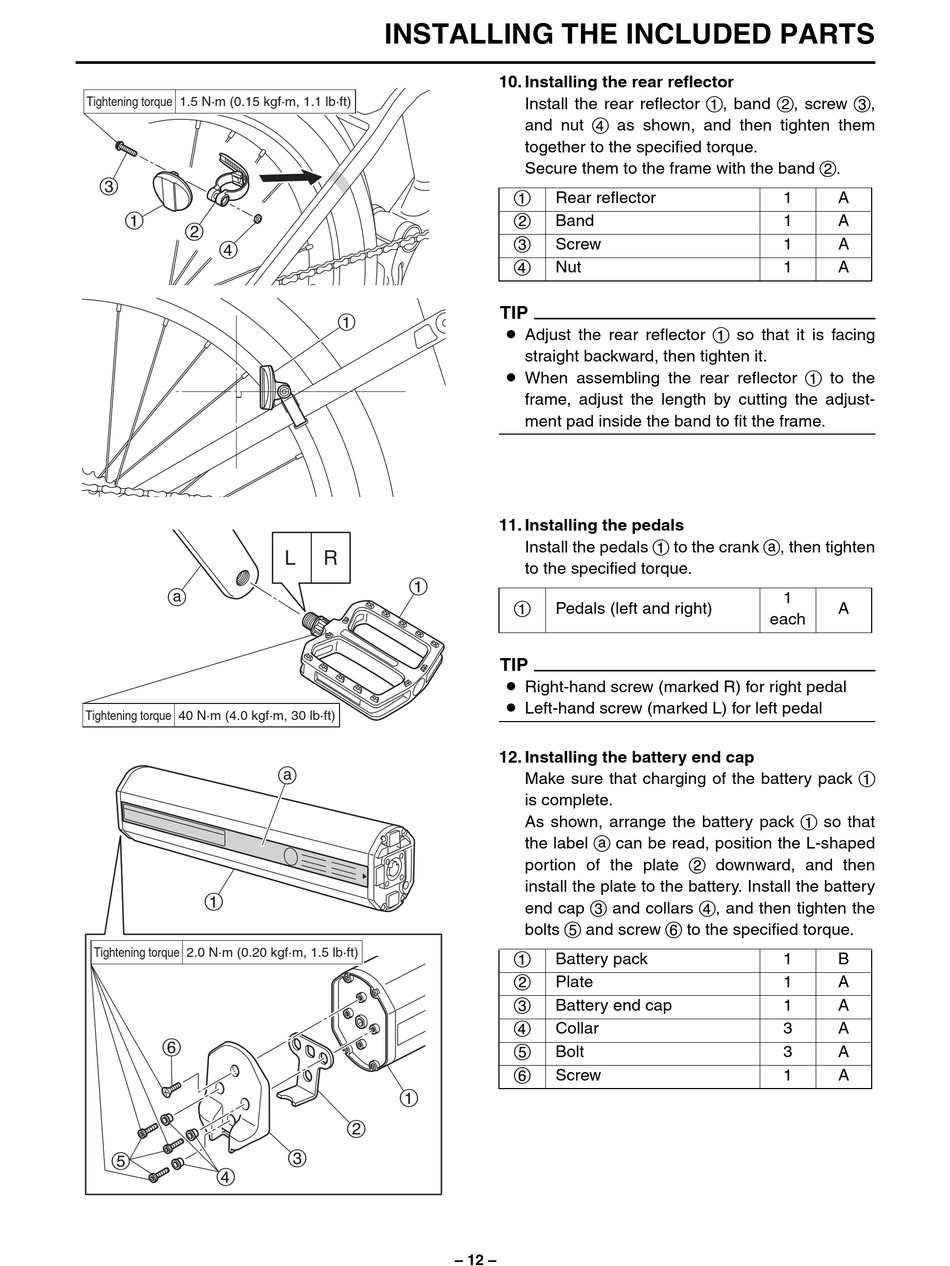

INSTALLING THE INCLUDED PARTS
1
L R
1
a
1
2
3
– 12 –
10. Installing the rear reflector
Install the rear reflector 1, band 2, screw 3,
and nut 4 as shown, and then tighten them
together to the specified torque.
Secure them to the frame with the band 2.
1
Rear reflector
2
Band
3
Screw
4
Nut
TIP
8 Adjust the rear reflector 1 so that it is facing
straight backward, then tighten it.
8 When assembling the rear reflector 1 to the
frame, adjust the length by cutting the adjust-
ment pad inside the band to fit the frame.
11. Installing the pedals
Install the pedals 1 to the crank a, then tighten
to the specified torque.
1
Pedals (left and right)
TIP
8 Right-hand screw (marked R) for right pedal
8 Left-hand screw (marked L) for left pedal
12. Installing the battery end cap
Make sure that charging of the battery pack 1
is complete.
As shown, arrange the battery pack 1 so that
the label a can be read, position the L-shaped
portion of the plate 2 downward, and then
install the plate to the battery. Install the battery
end cap 3 and collars 4, and then tighten the
bolts 5 and screw 6 to the specified torque.
1
Battery pack
2
Plate
3
Battery end cap
4
Collar
5
Bolt
6
Screw
1 A
1 A
1 A
1 A
1
A
each
1 B
1 A
1 A
3 A
3 A
1 A
