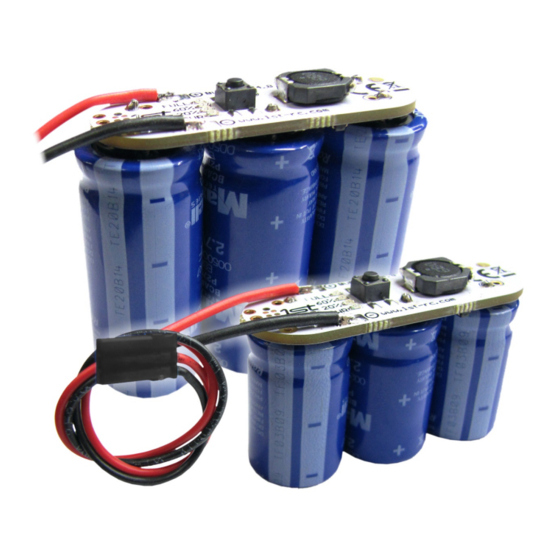

1st-rc BUFFER V4.8 Owner's Manual

Schweiz:
Xelaris AG
Amriswilerstrasse 65
8570 Weinfelden
Tel. +41 71 552 08 00
info@xelaris.ch
www.xelaris.ch
www.1st-rc.com
Deutschland:
Meik Gebauer
Elektronischer Vertrieb e. K.
Friedrichshüttenstraße 6
D-57548 Kirchen- Wehbach
Tel. +49 (0) 2741-931746
Info@Live-Hobby.de
www.Live-Hobby.de
Version V4.8

Feature Overview:

- 32 bit, 48MHz MCU controlled operation
- Adaptive charging
- Current sensing
- Output for external Alarm*
Operation Range:
- Backup Battery for electric Helicopters for safe emergency landing
- Buffer surge currents on high power model airplanes and helicopters
- Effective buffering of servo reverse current
- Automatic setup**

Maximum Ratings:

- Maximum Voltage (INPUT) 10V
- Maximum buffer Voltage (OUTPUT at full charge) 8.5V
- Surge current 25 Amp
* option in future software releases
** all parameters set automatically except cut-off voltage which is preset for 3.4
Volt. If your system requires a different cut-off voltage, please contact support
OWNERS MANUAL
V 4 . 8 / M ä r z 2 0 2 0
