Summary of Contents for Nymexsolutions DL9255

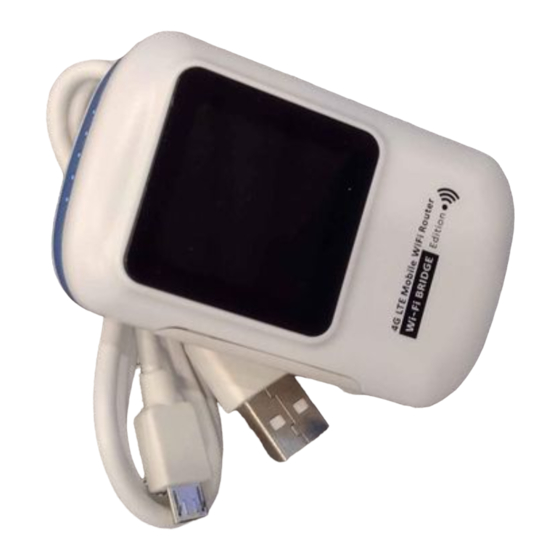

- Page 1 Nymexsolutions Limited Quick Setup Guide 4G LTE Mobile Wi-Fi Router Model – DL9255...
-
Page 2: Table Of Contents
Contents 3. Charging Your Wi-Fi Router 4. Inserting/Removing SIM Card 5. Connecting your Device* to the Wi-Fi Router Hotspot 6. How to interface with your Wi-Fi Router (Web-Browser) Interface with Wi-Fi Router using MiFi APP (Android Device Only) 8. FAQs * (Device: PC - Laptop – Tablet - Smart TV – Smartphone) -
Page 3: Charging Your Wi-Fi Router
Charging Your Wi-Fi Router Main Method Fig.1 Connect USB cable to Computer (Via the standard USB port connector) Connect micro USB cable to the Wi-Fi Router (As shown in fig.1) Micro USB Connector Computer Alternative Method (Recommended) Standard Mains USB Charger 12v Vehicle USB Charger Standard USB Connector Battery Pack USB Charger Purchase online or via nearest electrical retailer Connect cable to any standard USB Port of your personal computer or laptop... -
Page 4: Inserting/Removing Sim Card
Inserting/Removing SIM Card On/Off Button Install SIM Card 1. Insert SIM Card into the Slot with SIM contact facing up, and press firmly. Once you hear a “click” sound, Fig.2 release. (As shown in Fig.2) To remove SIM Card, press firmly the side of SIM card SIM Slot in the same manner until you hear a “click” sound, and release. Once your SIM Card has been inserted or removed, the Wi-Fi Router will automatically reboot. SIM Card If your Wi-Fi Router does not reboot, then you can manually do this by pressing the on/off button for a few seconds* PLEASE NOTE: SIM Card and adaptor not supplied Contact your nearest Internet mobile phone operator or alternatively purchase via reputable online Retailer. *(ONLY applies if Wi-Fi Router doesn’t reboot automatically) -
Page 5: Connecting Your Device To The Wi-Fi Router Hotspot
Connecting Your Device to the Wi-Fi Router Hotspot On/Off Connecting your wireless device* Button 1. When switched on, your Wi-Fi Router will automatically transmit a wireless signal; this is sometimes called an “access point” (AP) “hotspot” or indeed “network” 2. Connecting your wireless device to the Wi-Fi Router network will first require you to identify the right network name (SSID) and KEY (wireless password) 3. On your wireless device, search for the Network that matches the exact information displayed on the Wi-Fi Router. Once selected, you will be prompted to enter the KEY (password) then press connect on your device. Press the on/off button several times to scroll to the corresponding screen, 4. For security reasons, we highly recommend that you change which provides default information on your KEY (password) to something more secure. “SSID” and “KEY” (wireless password) It’s important to make a note of the information provided. * (Device: PC - Laptop – Tablet - Smart TV – Smartphone) SSID: (XX_XXXX) KEY: 1234567890 (default password) -
Page 6: How To Interface With Your Wi-Fi Router (Web-Browser)
How to interface with your Wi-Fi Router (Web-Browser) Interfacing: Login to Wi-Fi Router Menu Method 1 – (Manually using Web-Browser) First connect your device* to the Wi-Fi Router - (Refer to page 5 for instructions) 2. Open your web-browser** and type in the following local IP into the address bar: “http://192.168.5.1” 3. At the login screen: type in “admin” and press enter 4. For security reasons, we highly recommend that you change your login name to something more secure. * (Device: PC - Laptop – Tablet - Smart TV – Smartphone) ** (Recommended Web-browser: Chrome or Firefox... -
Page 7: Interface With Wi-Fi Router Using Mifi App (Android Device Only)
Interface with Wi-Fi Router using Mi-Fi APP (Android Device Only) On/Off Interfacing: Login to Wi-Fi Router Menu Button Method 2 – (using MiFi Android APP) 1. Download the APP via this direct link: - https://play.google.com/store/apps/details?id=com.mifi.wifi or visit Google Play and enter the search term “mifi dongle” or scan* the following QR Code displayed on the Wi-Fi Router 2. Install the application on to your Android device** First connect your device to the Wi-Fi Router - (Refer to page 5 for instructions) Press the on/off button several times to scroll to the corresponding screen, 4. Launch the “Mifi” App on your Android device which provides the following QR Code: - 5. At the login screen: type in “admin” and press enter NOTE: Mifi APP automatically clears the browser cache and cookies on exit * QR Scan reader is required – download available on Google Play ** (Device: PC - Laptop – Tablet - Smart TV – Smartphone) - Page 8 How to access Nord menu Log onto Dongler using Method 1 or 2 Select Advanced Settings Select Device Register Login to Dongler Cloud using IMEI number and password (Default 123456) Select Nord from top menu to gain access to Nord Control Panel 5.
-
Page 9: Faqs
FAQs (frequently Asked Questions) § Q: My Wi-Fi Router doesn’t switch-on after pressing the on/off button, what do I do? § A: Make sure that you have charged the battery first with a full charge, and that you are using either the USB cable provided, or have access to alternative USB mains adaptor. Always use genuine products from a reputable Retailer – (see page 3 for more details) § Q: I have inserted my SIM card, but I’m not getting a GSM signal from my Internet provider. § A: First, ensure you have correctly inserted the SIM card into the Wi-fi Router (see page 4 for more details). NOTE: if your SIM card is PIN activated, then you will be required to enter the Wi-Fi Router menu to key in your PIN code to then surf the Internet. In addition, (in most cases) the Wi-Fi router will automatically set the APN settings (username and password) supplied by your Internet Operator. However, there are some instances where you may have to enter these details manually. Again, you can change these settings in the Wi-Fi Router management menu. If you are unsure what to enter, it is advisable to check with your GSM Internet operator for the precise details. Finally, if you’re outside your home country, you may have to enable the roaming feature inside the Wi-Fi Router menu to have Internet privileges enabled. § Q: My device is not an Android; can I use the Mifi APP? A: Only Android-based devices currently can use the Mifi APP. However, all non-Android devices can login § manually to the Wi-Fi Router management menu by using their browser application instead – (see page 6 for more details) § Q: I manually typed in the local IP address https://192.168.5.1 but I am unable to login to the menu? A. Firstly make sure that you have cleared all cookies and the browser cache is empty. Check to ensure your § browser is closed, and that no other browser applications are simultaneously open (to avoid potential conflict). In addition, check that your device is connected to the Wi-Fi Router – (see page 5 for more details) § Q: Can I factory reset my Wi-Fi Router? § A. Yes you can, either by pressing the reset button next to the SIM Card slot, or within the Wi-Fi router management menu. WARNING: if you have not made a backup or record of your stored details, these could be permanently lost. - Page 10 Health and Safety Declaration. § Always ensure the device is away from any liquids, excessive temperatures (hot or cold), or not exposed to humid surroundings. § DO NOT attempt to dismantle, tamper or repair the Wi-Fi Router in any way. § DO NOT use fake or sub-standard USB chargers or unofficial products, which could potentially damage the Wi-Fi Router. § DO NOT burn, puncture, crush, or disassemble the battery. § DO NOT dispose of the battery in fire or water. § ALWAYS use genuine products from reputable and authorized Resellers or Retailers. § If on an Aircraft or restricted area, always SWITCH-OFF the Wi-Fi Router. If the Wi-Fi-Router is damaged beyond repair, then it must be disposed of in a safe manner (in accordance to health § and safety regulations in your home country). CAUTION: BATTERY IS SUBJECT TO EXPLOSION IF MISHANDLED OR ABUSED OR REPLACED INCORRECTLY. The user agrees to the above, and understands the consequences of non-compliance when operating this device. The use and application of this device is subject to the scrutiny of the user. Any misuse of this product will invalidate any warranty given. Nor can we guarantee the safety of this product if misused by the handler. The user agrees to operate this device at their own risk. Nymexsolutions Limited - No.5 17F Bonham Trade Centre 50 Bonham Strand Sheung Wan Hong Kong. This product and the specification are subject to change without prior notice. No part of this specification can be changed or modified without the strict permission of Nymexsolutions Limited. Nymexsolutions Limited is a registered company in Hong Kong - © 2018 All rights Reserved...
