Summary of Contents for Neeco NUTS S Series
- Page 1 User manual for NUTS units S, M, L NEECO UNIVERSAL TRACKING SYSTEM • • • • • Šaldova 12 Prague 8 168 00 Czech Republic Europe...
-
Page 2: Waiver Of Liability
NOTICE This product is not designed for the protection of human health or life. The use of modules from the S, M or L series is at the owner’s discretion. M and L series modules contain neodymium magnets for secure fastening. ... -

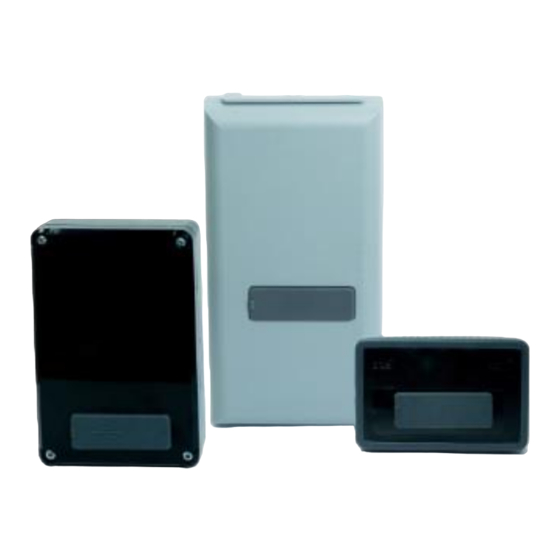

Page 3: Product Description
VERSIONS – DETAILED OVERVIEW OF L SERIES VERSIONS – DETAILED OVERVIEW OF M SERIES VERSIONS – DETAILED OVERVIEW OF S SERIES PRODUCT DESCRIPTION The modules contain a GPS receiver for detecting position (latitude and longitude), a GSM/GPRS module for transferring the position to a superior system or directly to the user via SMS, a 3D motion sensor (for detecting movement, vibrations, tilt and impact), a thermometer and a barometer. - Page 4 The information provided below applies if you have a full version of the Trexee service. The functions listed below cannot be used with the Lite version. The modules operate in a mode selected by you. Module settings are selected at https://nuts.neeco.com in the Settings – Unit settings tab. Each module and the relevant details can be edited by clicking on the “pencil”...
- Page 5 ✓ • If none of the recommended profiles is suitable for you, you can configure the module according to your specific needs using the advanced settings. In this case, proceed with caution and familiarise yourselves in detail with each parameter to be changed. This information is available for each of the parameters when you click on the question mark icon.
- Page 6 You can display explanations for individual fields by clicking the question mark. We always RECOMMEND reading the help section before saving your settings to find out what each of the fields represents and what you have set. You can change the settings once after 24 hours from the last change. What analogue values mean –...
- Page 7 • You do not need to fill anything in. • You can also check the last position and unit communication, as well as the current battery status in module settings. USB AND LED A micro USB connector and LED signalling charging status is located under a rubber cover on the front side. The USB connector is used for charging M, L and S series modules. The Trexee L Solar version requires charging with direct solar light.
-
Page 8: Operation And Installation
OPERATION AND INSTALLATION PUTTING INTO OPERATION The modules are supplied with configuration for sending the position once every 24 hours and once every 3 minutes when in motion. For more information see Function description. SHUT DOWN AND STORAGE Store the modules in a charged status. Charge the accumulators to at least 50% of their capacity at least every six months. Check the battery status in S series modules every 5 to 6 weeks. -
Page 9: Technical Parameters
TECHNICAL PARAMETERS QuadBand 850/900/1800/1900 MHz Micro Sim, Plug-in 1,8 V Communication types GSM Data, GPRS Class 12 / static and dynamic IP VPN, UDP protocol / 128bit key encoding GPRS internet connection / FW update, configuration change, current data reading, event report reading GNSS GPS and Glonass 66 satellites...
