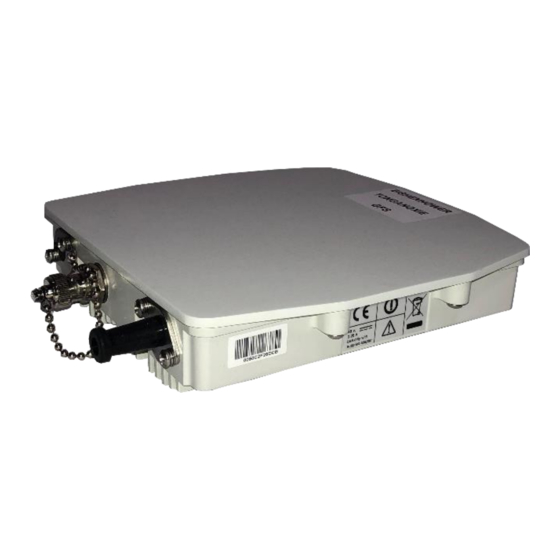

- Page 1 SM Sygnus SHC MULTI-MIMO OFDM OUTDOOR RADIO User’s Manual Includes install, configuration and trouble shooting information for the broadband Wireless access outdoor radio SM SYGNUS SHC USER´S MANUAL...
- Page 2 If the product should fail to operate correctly in normal use during the warranty period, Star Microwave will replace or repair it free of charge. No liability can be accepted for damage due to misuse or circumstances outside Star Microwave’s control.
-
Page 3: Table Of Contents
Alignment .............................. 19 The Sygnus SHC can be aligned using the Built in RSSI buzzer .............. 20 Sealing ..............................20 Cables ..............................21 Indoor Outlet Installation ........................23 Grounding .............................. 24 Consecutive AP Connection ........................25 SM SYGNUS SHC USER´S MANUAL... - Page 4 Ethernet Configuration:......................... 26 GPS Synchronization (MU only): ......................27 RF Analyzer ............................27 Appendix A – Outdoor Cables Scheme ....................28 Appendix B – RF Channel Lists ....................... 29 Appendix C – Approved Antennas ......................30 SM SYGNUS SHC USER´S MANUAL...
-
Page 5: Introduction
• Backhaul of video surveillance systems Point-to-Multipoint (PTMP): The basic subsystem is composed of the same Master Unit (MU) and multiple Slave Units (SUs). Typical applications: • Multiple backhauls solutions • Multiple Video surveillance systems • High bandwidth campus solutions SM SYGNUS SHC USER´S MANUAL... -
Page 6: Technical Overview
• Symmetric / dynamic throughput - up/downstream throughput can be symmetric or dynamic & application. Automatic according to the actual traffic, optimizing the link to the • Output Power - High dynamic range of 40 dB up to 26 dBm. SM SYGNUS SHC USER´S MANUAL... - Page 7 • Real time synchronization - by GPS or internal. Sygnus SHC built in time synchronization technology allows collocation of multiple MUs on the same tower and on collocated towers while reusing frequencies, eliminating self-interference between them. SM SYGNUS SHC USER´S MANUAL...
- Page 8 MU will block the reception of the second MU since they are close to each other (can even occur when the MUs are on different channels). Time synchronization synchronizes the transmission and reception of all MUs, thus eliminating self- interference between them and allowing better frequency reuse. SM SYGNUS SHC USER´S MANUAL...
- Page 9 • ACS – Automatic Channel Selection (automatic site survey). • Extremely low power consumption: < 6Watt. • Multiple frequency bands in one radio – ease of stocking and maintenance. • Over the air remote management SM SYGNUS SHC USER´S MANUAL...
-
Page 10: Element Management System
• Managing entire deployment composed of Sygnus SHC Radios • Radio link monitoring and configuration. • Easy PTMP configuration – all in one point. • System health in a glance. • Multiple networking modes under single MU. Figure 8: Network Management System SM SYGNUS SHC USER´S MANUAL... -
Page 11: Standard Protocols
Sygnus SHC supports the following protocols: • WEB (HTTP) – Manage the radio using an Internet browser. • SNMP – Supports v2c with a private MIB, Traps and notifications. • Telnet. Figure 11: WEB interface SM SYGNUS SHC USER´S MANUAL... -
Page 12: Installation
Additional Part List – Required for Installation • Outdoor Unit grounding cable • Outdoor-to-Indoor shielded CAT5 cable (Up to 90 meters). • Indoor CAT5 cable. • RJ-45 - Installation KIT. • RJ-45 - Crimping tool. • Adjustable wrench + screwdriver. SM SYGNUS SHC USER´S MANUAL... -
Page 13: Installation Overview
Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial liabilities. Star Microwave and its resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. -
Page 14: Link Configuration
• Perform ACS: Press this button to start Automatic Channel selection immediately. • VLAN ID: management VLAN ID (default – 0, no VLAN ID). • Sync Unit: After configuring all parameters, press “Sync Unit” to submit the configuration to the MU. SM SYGNUS SHC USER´S MANUAL... -
Page 15: Su Installation Window
SU. Make sure both PCs are on the same subnet, for example: 10.1.1.10/24 and 10.1.1.20/24. Typical outdoor installation scheme: Sygnus SHC - Outdoor Unit with integrated Antenna Outdoor to Indoor CAT5 Indoor Outlet User computer Indoor CAT5 Power Supply 100-240V SM SYGNUS SHC USER´S MANUAL... -
Page 16: Installation Process Summary
16. Connect the CAT5 Ethernet cable from the user’s network/PC to the PoE Outlet ‘10/100 B-T’ port. 17. Connect the power supply to the PoE Outlet power port (‘48VDC’). 18. Align the antenna and secure the unit by fastening the mounting screws. SM SYGNUS SHC USER´S MANUAL... -
Page 17: Select The Best Location
• Antenna height is the distance from the imaginary line connecting the antennas at the two sites to “ground” level. “Ground” level in an open area is the actual ground. In dense urban areas, “ground” level is the average height of the buildings between the antenna sites. SM SYGNUS SHC USER´S MANUAL... -
Page 18: Mounting
The outdoor unit transmit power is configurable. The Link Manager limits the max transmit power according to the antenna gain, the regulation and the frequency band. The installer, if needed, can select a lower power. SM SYGNUS SHC USER´S MANUAL... -
Page 19: Alignment
IMPORTANT! Antennas must be selected from a list of Star Microwave approved antennas. Please refer to Appendix C – FCC Approved Antennas. It is the responsibility of the installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only those antennas certified with the product are used. -
Page 20: The Sygnus Shc Can Be Aligned Using The Built In Rssi Buzzer
The outdoor unit must be sealed against rain with the rubber grommets. __________________________________________________________________________________ Note: All Units are factory sealed, seal needed only on Ethernet ports. Opening the unit will void the Sygnus SHC product warranty. SM SYGNUS SHC USER´S MANUAL... -
Page 21: Cables
• Crimp the RJ-45 Plug. Figure: Cable preparation for Outdoor Unit • Insert the RJ-45 to the Outdoor Unit. • Insert NC-6 screws with spring washer to the seal bracket. Cable assembly to Outdoor Unit Figure: SM SYGNUS SHC USER´S MANUAL... - Page 22 Figure: Cable insertion to Outdoor Unit. • Fasten the seal bracket. • The unused port should be left sealed. SM SYGNUS SHC USER´S MANUAL...
-
Page 23: Indoor Outlet Installation
Note: Do not attach standard CAT5 cable from the PC to the Indoor Unit RJ-45 jack marked “OUTDOOR”. Connecting the PC directly to the Outdoor Unit may cause damaged to the Ethernet NIC in the PC Figure: Indoor Unit with Power over Ethernet (PoE) SM SYGNUS SHC USER´S MANUAL... -
Page 24: Grounding
The cable should be long enough to reach from the mounting pole to the grounding rod with 3 to 6 feet extra to allow for strain relief. Figure: Ground Connection to Outdoor Unit SM SYGNUS SHC USER´S MANUAL... -
Page 25: Consecutive Ap Connection
Any unauthorized modification or changes to this device without the express approval of Star Microwave may void the user’s authority to operate this device. Furthermore, this device intended to be used only when installed in accordance with the instructions outlined in this manual. Failure to comply with these instructions may also void the user’s authority to operate this device and/or the... -
Page 26: General Configuration
• Select the band of operation. Changing a band will automatically change: • Channel of operation (MU link configuration window). • Channel scan list (will activate all channels in the installation window). • Tx power configuration (to the maximum allowed). • DFS configuration (according to regulation). SM SYGNUS SHC USER´S MANUAL... -
Page 27: Gps Synchronization (Mu Only)
• All Channels – If enabled the unit will scan all the channels. • Poll Interval – Choose the time to scan each channel before advancing to the next channel. • Save Bitmap – Save the RF Analyzer graph to a bitmap file. SM SYGNUS SHC USER´S MANUAL... -
Page 28: Appendix A - Outdoor Cables Scheme
Appendix A – Outdoor Cables Scheme Figure: Outdoor Cables Scheme Note: In order to comply with CAT5 91 meters cable Pins 1,2 must be on a twisted pair wire! Pins 3,6 must be on a twisted pair wire! SM SYGNUS SHC USER´S MANUAL... -
Page 29: Appendix B - Rf Channel Lists
5800 5800 5800 5800 5805 5805 5805 5805 5810 5810 5810 5810 5815 5815 5815 5815 5820 5820 5820 5820 5825 5825 5825 5825 5830 5830 5830 5830 5835 5835 5835 5840 5840 5840 5845 SM SYGNUS SHC USER´S MANUAL... -
Page 30: Appendix C - Approved Antennas
Dish antenna, 7 GHz, 4ft, 2 degrees, 37 dBi SM-SP-10X-340D-003 Dish antenna, 10.5 GHz, 2ft, 3.5 degrees, 34 dBi SM-SP-10X-370D-002 Dish antenna, 10.5 GHz, 3ft, 2 degrees, 37 dBi SM-SP-10X-400D-001 Dish antenna, 10.5 GHz, 4ft, 1.5 degrees, 40 dBi SM SYGNUS SHC USER´S MANUAL... - Page 31 Dish antenna, 10.5 GHz, 2ft, 3.5 degrees, 34 dBi, dual polarization SM-DP-10X-370D-002 Dish antenna, 10.5 GHz, 3ft, 2 degrees, 37 dBi, dual polarization SM-DP-10X-400D-001 Dish antenna, 10.5 GHz, 4ft, 1.5 degrees, 40 dBi, dual polarization SM SYGNUS SHC USER´S MANUAL...
