E

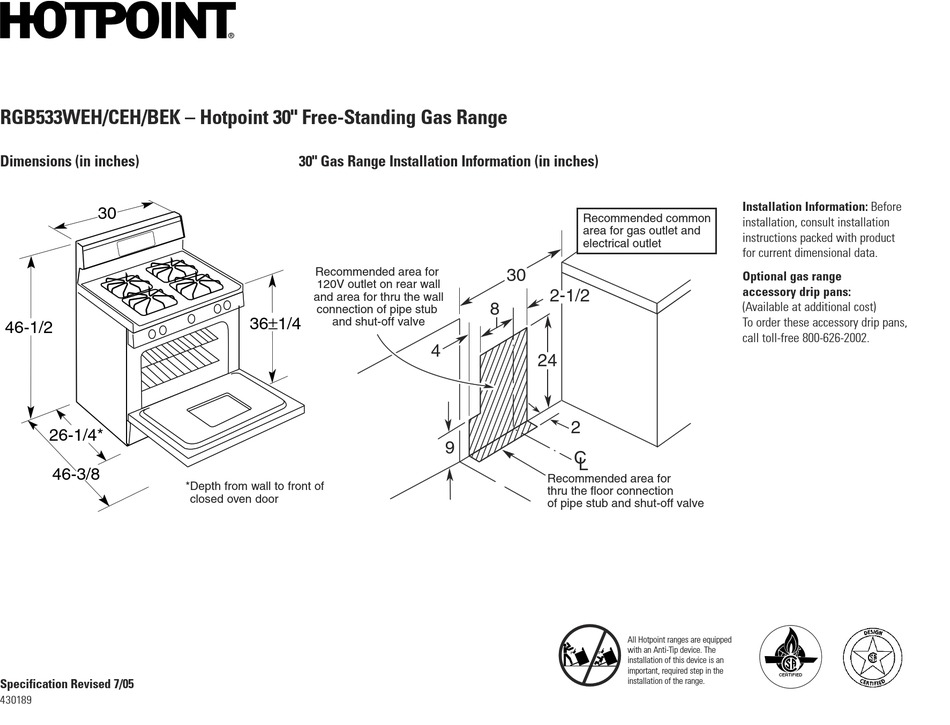

RGB533WEH/CEH/BEK – Hotpoint 30" Free-Standing Gas Range
Dimensions (in inches)
30
46-1/2
26-1/4*
46-3/8
30
Specification Revised 7/05
C L
430189
8
®
30" Gas Range Installation Information (in inches)
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
36±1/4
and shut-off valve
*Depth from wall to front of
closed oven door
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
2-1/2
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
4
24
2
9
C L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Installation Information: Before
installation, consult installation
instructions packed with product
for current dimensional data.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
CERTIFIED
installation of the range.
