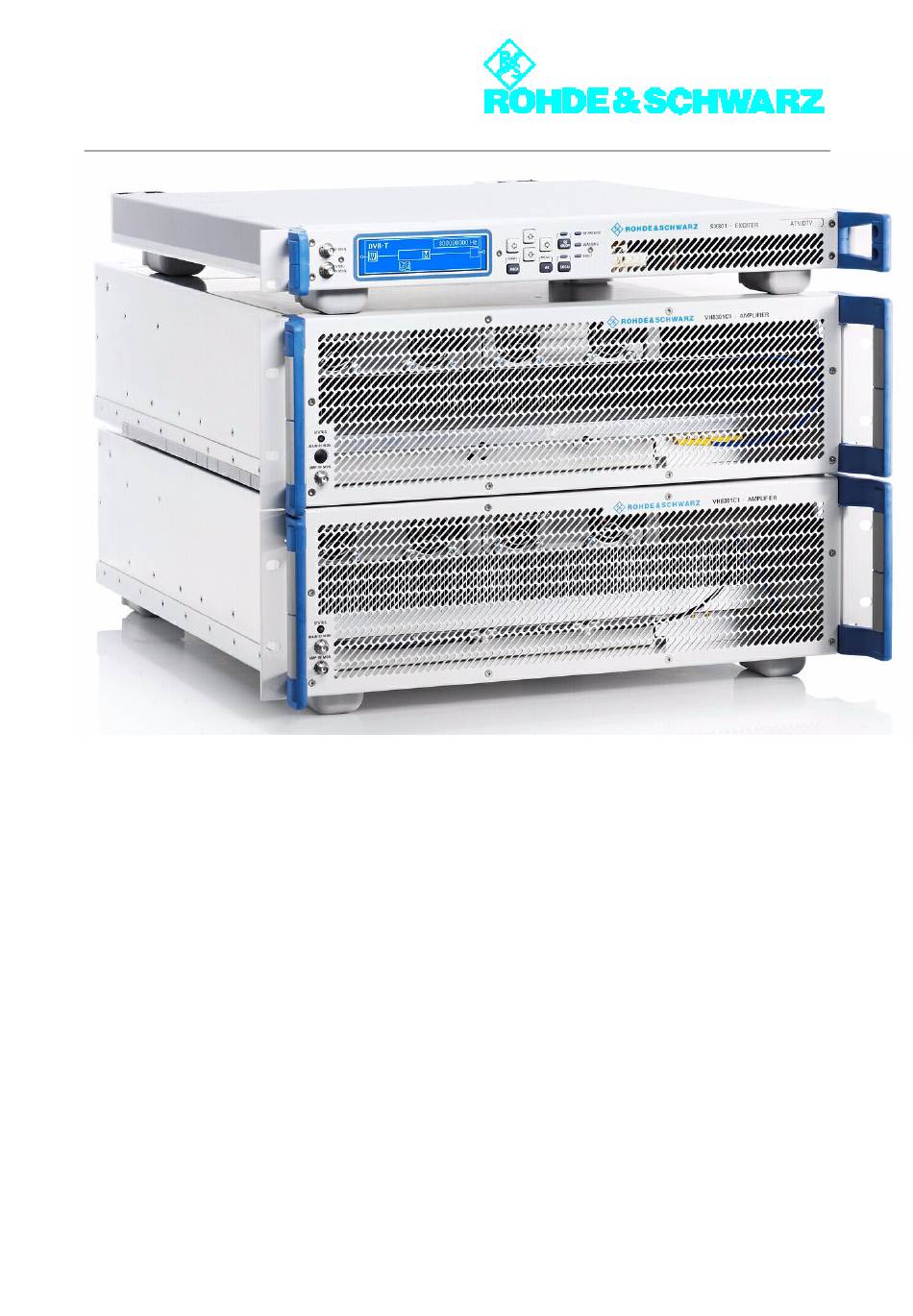

Page 1 Broadcasting Division System Manual ® R&S SCV8000E/R Compact Transmitter Transmitter Series SCx8000 Only skilled personnel may perform the operations of the described instrument that are necessary for installing and putting it into operation as well as maintaining, trou- bleshooting and servicing it.
Page 2 System Manual Transmitter Series SCx8000 Edition: May 2009 Version: E 01.00 © 2009 Rohde&Schwarz GmbH & Co. KG 81671 Munich, Germany This document may be duplicated or otherwise used or its contents made known to third parties only with permission of the originator or other authorized persons. Infringements constitute an offence and are subject to claim for damages (UrhG, UWG, BGB).
Page 3 QUALITÄTSZERTIFIKAT CERTIFICATE OF QUALITY CERTIFICAT DE QUALITÉ Sehr geehrter Kunde, Dear Customer, Cher Client, Sie haben sich für den Kauf eines you have decided to buy a Rohde & vous avez choisi d‘acheter un produit Rohde & Schwarz-Produktes ent- Schwarz product. You are thus as- Rohde &...
Page 5 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
Page 7 Address List Headquarters, Plants and Subsidiaries Locations Worldwide Headquarters Please refer to our homepage: www.rohde-schwarz.com ◆ Sales Locations ROHDE&SCHWARZ GmbH & Co. KG Phone +49 (89) 41 29-0 Mühldorfstraße 15 · D-81671 München Fax +49 (89) 41 29-121 64 ◆ Service Locations P.O.Box 80 14 69 ·...
Page 9 Für Betrieb im Europäischen Wirtschaftsraum (EWR) und zivilem Einsatz. Hinweis gemäß dem Gesetz über "Funkanlagen und Telekommunikationsend- einrichtungen" (FTEG) und der Europäischen Richtlinie 1999/5/EG: Dieses Produkt darf innerhalb des EWR nicht uneingeschränkt betrieben werden, da der verwendete Frequenzbereich auf nicht harmonisierten Bändern erfolgt. Nationale Vorschriften / Genehmigungen sind zu beachten.
Page 11 R&S SCV8000E/R CONTENTS SAFETY INSTRUCTIONS DESIGN AND CHARACTERISTICS INSTALLATION COMMISSIONING OPERATING MAINTENANCE TROUBLESHOOTING SERVICE ANNEX 2104.6536.72 - 0.3 -...
Page 13 Broadcasting Division CHAPTER 1 SAFETY INSTRUCTIONS Printed in Germany 2095.7346.32 - 1.0 -...
Page 15 Sicherheitshinweise Kundeninformation zur Batterieverordnung (BattV) Dieses Gerät enthält eine schadstoffhaltige Batterie. Diese darf nicht mit dem Hausmüll entsorgt werden. Nach Ende der Lebensdauer darf die Entsorgung nur über eine Rohde&Schwarz-Kundendienststelle oder eine geeig- nete Sammelstelle erfolgen. Safety Regulations for Batteries (according to BattV) This equipment houses a battery containing harmful sub- stances that must not be disposed of as normal household...
Page 17: Table Of Contents
Chapter 1 Safety Instructions CONTENTS 1 About this Manual ................1 2 Safety Instructions for Transmitter Systems and Instruments ... 2 3 General Safety Instructions ............3 4 Special Danger Warnings ............... 4 4.1 Hazards due to AC Supply Voltage ...............4 4.1.1 AC Power Supply ..................4 4.1.2 Replacing Fuses ...................4 4.2 Hazards due to High-Energy Circuits ............4...
Page 19: About This Manual
Chapter 1 Safety Instructions About this Manual This manual is part of the documentation for the SCV8000 family of transmitters from Rohde & Schwarz. The individual manuals of the family of transmitters are modular in struc- ture and complement each other. Structure Each transmitter component is described in a separate manual and can thus be used as an individual component (where practical).
Page 20: Safety Instructions For Transmitter Systems And Instruments
Chapter 1 Safety Instructions Safety Instructions for Transmitter Systems and Instruments ATTENTION! The safety instructions provided in this manual must be complied with! Pay special attention to the following points:  Only skilled personnel may perform electrical installation and electrical connection tasks.
Page 21: General Safety Instructions
Chapter 1 Safety Instructions General Safety Instructions This section contains general safety instructions that apply to all products manufactured or distributed by Rohde & Schwarz. In accordance with IEC 215 and EN 60215, transmitters and their auxiliary equipment must be operated only under the responsibility of skilled personnel. The EN 60215 standard ("Safety requirements for radio transmitting equipment") defines the minimum requirements for skilled electrical personnel.
Page 22: Special Danger Warnings
Chapter 1 Safety Instructions Special Danger Warnings Hazards due to AC Supply Voltage There is a risk of electric shock with any V > 30 V AC or V > 60 V DC voltage. Appropri- ate measures must be taken to prevent exposure to any danger when working with voltages that bear the risk of electric shock.
Page 23: Rf Hazards
Chapter 1 Safety Instructions  If you need to measure low-impedance voltages, during repair work for example, exer- cise the same caution as when measuring operating voltages that bear the risk of elec- tric shock. Wear protective clothing if necessary. ...
Page 24: Rules For Working With An Open Amplifier
Chapter 1 Safety Instructions 4.3.4 Rules for Working with an Open Amplifier Operating the instrument with RF power is not permitted if the instrument has been opened or its covers removed. 2104.6536.72 - 1.6 -...
Page 25 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
Page 26 Basic Safety Instructions Tags and their meaning The following signal words are used in the product documentation in order to warn the reader about risks and dangers. indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Page 27 Basic Safety Instructions Electrical safety If the information on electrical safety is not observed either at all to the extent necessary, electric shock, fire and/or serious personal injury or death may occur. 1. Prior to switching on the product, always ensure that the nominal voltage setting on the product matches the nominal voltage of the AC supply network.
Page 28 Basic Safety Instructions 14. Use suitable overvoltage protection to ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the person operating the product will be exposed to the danger of an electric shock. 15.
Page 29 Basic Safety Instructions Repair and service 1. The product may be opened only by authorized, specially trained personnel. Before any work is performed on the product or before the product is opened, it must be disconnected from the AC supply network.
Page 30 Informaciones elementales de seguridad 2. Handles on the products are designed exclusively to enable personnel to transport the product. It is therefore not permissible to use handles to fasten the product to or on transport equipment such as cranes, fork lifts, wagons, etc. The user is responsible for securely fastening the products to or on the means of transport or lifting.
Page 31 Informaciones elementales de seguridad Se parte del uso correcto del producto para los fines definidos si el producto es utilizado conforme a las indicaciones de la correspondiente documentación del producto y dentro del margen de rendimiento definido (ver hoja de datos, documentación, informaciones de seguridad que siguen). El uso del producto hace necesarios conocimientos técnicos y ciertos conocimientos del idioma inglés.
Page 32 Informaciones elementales de seguridad Palabras de señal y su significado En la documentación del producto se utilizan las siguientes palabras de señal con el fin de advertir contra riesgos y peligros. PELIGRO identifica un peligro inminente con riesgo elevado que provocará...
Page 33 Informaciones elementales de seguridad Seguridad eléctrica Si no se siguen (o se siguen de modo insuficiente) las indicaciones del fabricante en cuanto a seguridad eléctrica, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte. 1. Antes de la puesta en marcha del producto se deberá comprobar siempre que la tensión preseleccionada en el producto coincida con la de la red de alimentación eléctrica.
Page 34 Informaciones elementales de seguridad 12. Si un producto se instala en un lugar fijo, se deberá primero conectar el conductor de protección fijo con el conductor de protección del producto antes de hacer cualquier otra conexión. La instalación y la conexión deberán ser efectuadas por un electricista especializado. 13.
Page 35 Informaciones elementales de seguridad 5. Ciertos productos, como p. ej. las instalaciones de radiocomunicación RF, pueden a causa de su función natural, emitir una radiación electromagnética aumentada. Deben tomarse todas las medidas necesarias para la protección de las mujeres embarazadas. También las personas con marcapasos pueden correr peligro a causa de la radiación electromagnética.
Page 36 Informaciones elementales de seguridad 6. En caso de falta de estanqueidad de una celda, el líquido vertido no debe entrar en contacto con la piel ni los ojos. Si se produce contacto, lavar con agua abundante la zona afectada y avisar a un médico.
Page 37 Broadcasting Division CHAPTER 2 DESIGN AND CHARACTERISTICS Printed in Germany 2095.7346.32 - 2.0 -...
Page 39 Chapter 2 Design and Characteristics CONTENTS 1 System Purpose and Overview ............1 1.1 Transmitter Types and Power Classes ............1 2 Devices and Options ............... 4 2.1 R&S SX801 exciter ..................4 2.2 R&S VH8001Cx base and extended amplifier ..........4 3 Specifications .................. 7 3.1 R&S SCV8000 Transmitter Types ..............7 3.2 R&S SCV8000 Transmitter Series ..............8 3.2.1 General Data ....................8...
Page 40 Chapter 2 Design and Characteristics 2104.6536.72 - 2.02 -...
Page 41: System Purpose And Overview
However, any special features of the individual transmitter types are described separately. Fig. 1 R&S SCV8301E – compact transmitter with one amplifier Transmitter Types and Power Classes The R&S SCV8000E/R compact transmitters are combinations of the following devices: 2104.6536.72 - 2.1 -...
Page 42 Chapter 2 Design and Characteristics  R&S SX801 exciter (1 or 2)  Base amplifier R&S VH8201C1 or R&S VH8301C1  Extended amplifier R&S VH8201C2 or R&S VH8301C2 Fig. 2 R&S SCV8302E – compact transmitter with base and extended amplifier Combining the exciter(s) with 1 or 2 amplifiers results in the following transmitter types and power classes: R&S SCV8201E...
Page 43 Chapter 2 Design and Characteristics R&S SCV8301R – – – – 300 W R&S SCV8202E – – – 400 W R&S SCV8202R – – – 400 W R&S SCV8302E – – – 600 W R&S SCV8302R – – – 600 W 2104.6536.72 - 2.3 -...
Page 44: Devices And Options
Chapter 2 Design and Characteristics Devices and Options R&S SX801 exciter Fig. 3 R&S SX801 – front panel Fig. 4 R&S SX801 – rear panel The R&S SX801 (1 HU) exciter contains the modulation and frequency processing, the transmitter control unit and the remote control interfaces. As the user interface in the compact transmitter, the R&S SX801 also features all the ele- ments and interfaces for operating the transmitter.
Page 45 Chapter 2 Design and Characteristics Fig. 5 R&S VH8001Cx amplifier series Overview of amplifier types This manual covers the following amplifier types: DVB-T/H power Version R&S VH8201C1 200 W Base amplifier R&S VH8201C2 200 W Extended amplifier R&S VH8301C1 300 W Base amplifier R&S VH8301C2 300 W...
Page 46 Chapter 2 Design and Characteristics Operating Modes and Achievable Transmitter Powers Nominal output power DVB-T/H ATSC Analog TV R&S SX801 + R&S VH8201C1 200 W 300 W 450 W sync peak = R&S SCV8201 200 W 300 W 450 W sync peak R&S SX801 + R&S VH8201C1 200 W...
Page 47: Specifications
Chapter 2 Design and Characteristics Specifications R&S SCV8000 Transmitter Types Transmitter type SCV8201E SCV8301E SCV8202E SCV8302E DVB-T output power for a 200 W 300 W 400 W 600 W shoulder distance of  37 dB at fo ± 4.2 MHz (without output bandpass filter) DVB-T power consumption 1.4 kW...
Page 48: R&S Scv8000 Transmitter Series
Chapter 2 Design and Characteristics R&S SCV8000 Transmitter Series 3.2.1 General Data TV standards Digital TV ..........DVB-T/H, ATSC Analog TV ..........B/G, D/K, M, M1 (standard M + FM dual sound), N, I, I1 Frequency ranges........470 MHz to 862 MHz (band IV/V) Step size for frequency adjustment ....
Page 49: Specific Data: Digital Tv
Chapter 2 Design and Characteristics Reliability ..........EN 60950-1:2001, CSA C22.2 No. 60950-1:2003, UL60950-1:2003 Dimensions and Weight Basic system Dimensions (without feet) ..... 19’’, 4 (1 + 3) HU, 550 mm deep Weight (air-cooled) ....... 28 (5 + 23) kg Extended system Dimensions (without feet) .....
Page 50: Transmission Properties (Dvb)
Chapter 2 Design and Characteristics To TS 101191 – Delay adjustment 1000 ms (automatic and manual) – Adjustment step size 100 ns – Accuracy better than ± 350 ns (with 1 pps buffering; otherwise 150 ns) – 1 pps buffering and monitoring –...
Page 51: Precorrection
Chapter 2 Design and Characteristics 3.2.2.4 Precorrection – Manual linear precorrection (up to 350 ns group delay, up to 2 dB frequency response) – Manual nonlinear precorrection – Nonlinear frequency response – Limiter function – Precorrection of amplifier asymmetry 3.2.2.5 Quality Data SNR ............
Page 52: Specific Data: Analog Tv
Chapter 2 Design and Characteristics 3.2.3 Specific data: Analog TV 3.2.3.1 Supported Video and Audio Standards TV standards ..........B/G, M, M1 (standard M + FM dual sound), N, I, I1, D/K Audio coding..........Mono, IRT dual sound, BTSC, optional NICAM 3.2.3.2 Baseband Video –...
Page 53: Video Performance Data
Chapter 2 Design and Characteristics – Dynamic adjustment of nonlinear precorrection depending on video content – Precorrection of amplifier asymmetry 3.2.3.7 Video Performance Data S/N ratio .............  56 dB (> 200 kHz, < 5 MHz, CCIR non-weighted); typ. 63 dB (> 200 kHz, <...
Page 54 Chapter 2 Design and Characteristics 2104.6536.72 - 2.14 -...
Page 55 Broadcasting Division CHAPTER 3 INSTALLATION Printed in Germany 2095.7346.32 - 3.0 -...
Page 57 Chapter 3 Installation CONTENTS 1 Unpacking and Setting Up .............. 1 1.1 Equipment Supplied ..................1 1.2 Unpacking the Instruments ................1 1.3 Setting Up the Instruments ................1 2 Connecting the Cables ..............2 2.1 Overview of the Connections ................2 2.1.1 Connections on the Exciter ................2 2.1.2 Connections on the Amplifiers ..............4 2.2 Cabling the R&S SX801 Exciter for Digital TV ..........6 2.3 Cabling the R&S SX801 Exciter for Analog TV ..........7...
Page 58 Chapter 3 Installation 2104.6536.72 - 3.02 -...
Page 59: Unpacking And Setting Up
Power cable for each instrument  Transmitter kit for the appropriate transmitter type  An R&S SCV8000E/R system manual  Manuals for the R&S SX801 and R&S VH8001Cx Unpacking the Instruments  Carefully unpack the instruments and make sure that everything is present based on the delivery documentation.
Page 60: Connecting The Cables
Chapter 3 Installation Connecting the Cables WARNING! Always make sure that the power supply is disconnected before connecting any devices. This will prevent injuries and damage to the devices. Overview of the Connections 2.1.1 Connections on the Exciter Fig. 1 Connections on rear panel of R&S SX801 Rear panel connectors Labeling Type...
Page 61 Chapter 3 Installation Labeling Type Connector (Name) D-Sub, male connector, Amplifier control unit 15-pin D-Sub, female, 9-pin RF loop and CAN bus; connector for (Tx control) parallel remote control interface or N+1 system; power reduction on the external amplifier PAR I/O D-Sub, female, 9-pin Parallel connector for signaling con- tacts and control inputs...
Page 62: Connections On The Amplifiers
Chapter 3 Installation Labeling Type Connector (Name) SMA, female, 50  Connection for optional GPS antenna (GPS antenna) SMA, female, 50  Retransmitter option: Antenna input (Receiver) for receiver module SMA, female, 50  Rx AUX Retransmitter option: AUX antenna (Receiver auxiliary) input for receiver module Fig.
Page 63 Chapter 3 Installation 8) COMBINER POWER OUT (X35, RF power output 600 W after combiner; extended amplifier only) 9) AMPL CONTROL (X11, amplifier control with connection to the CAN bus) 10) AUX DET 1 (X6, input auxiliary detector 1; base amplifier only) 11) AUX DET 2 (X7, input auxiliary detector 2;...
Page 64: Cabling The R&S Sx801 Exciter For Digital Tv
Chapter 3 Installation Designation Type Connector / function RF IN 2 X110 SMA, female RF input for signal from exciter B, for passive dual drive; in base amplifier only – – Grounding bolt Grounding bolt for system ground a) The fans in the extended amplifier receive their power supply from the base amplifier if the AC power supply to the extended amplifier drops out, unless the base amplifier supply drops out.
Page 65: Cabling The R&S Sx801 Exciter For Analog Tv
Chapter 3 Installation b) Alternatively, supply the 1PPS signal from an external reference source via (EXT 1 PPS). Cabling the R&S SX801 Exciter for Analog TV Inputs for analog TV 1. Connect the video signal to (VF). 2. Feed audio signals according to signal type: a) Connect the AF signals to X25 (AUDIO 1 and AUDIO 2).
Page 66: Systems With A Base And Extended Amplifier
Chapter 3 Installation 2.4.2 Systems with a Base and Extended Amplifier Amplifier controller and signal connections 1. Connect (AMP) on the exciter (and any existing standby exciter) and X11 (AMPL CONTROL) on the base and extended amplifiers using the included 15-pin ribbon cable. 2.
Page 67: Connecting The User Interface
Chapter 3 Installation The interlock loop is only closed after (!) startup (see chapter "Commissioning" in the R&S Note SCV8000x system manual) via X6 (TX CONTROL), after which the instrument can then produce RF. Connecting the User Interface A PC/laptop can be connected to the exciter to allow convenient startup of the transmitter on site.
Page 68 Chapter 3 Installation Transmitter type SCV8201E SCV8301E SCV8202E SCV8302E AC supply voltage 100 V / – / 30 A – / 30 A – / 60 A – / 60 A 120 V Recommend line cross-section in power system (VDE/UL) System voltage 230 V 2.5 mm 2.5 mm...
Page 69 Broadcasting Division CHAPTER 4 COMMISSIONING Printed in Germany 2095.7346.32 - 4.0 -...
Page 71 Chapter 4 Commissioning CONTENTS 1 Quick Start ..................1 2104.6536.72 - 4.01 -...
Page 72 Chapter 4 Commissioning 2104.6536.72 - 4.02 -...
Page 73 Chapter 4 Commissioning Quick Start ATTENTION! The exciter can be damaged by overvoltage. Make sure that the AC supply voltage in your power system complies with the specifications for the AC power supply option in your exciter. – Option B9: 90–264 V AC, 100 W (24 V secondary) –...
Page 74 Chapter 4 Commissioning 6. Using the previously connected PC (see the "Installation" chapter) and an up-to-date Java-enabled browser, log on to the exciter. Proceed as follows: a) Enter the network address for the exciter. The default setting is as follows: http:// 192.168.057.253).
Page 75 Chapter 4 Commissioning 14.In the system overview, check the measured values for F(orward Power) and R(eflected Power): F should indicate the set output power and R should indicate a very low value. Fig. 2 System overview after powering on the R&S SCV8301 15.In the Logbook menu, use the Clear logbook context function to delete all of the en- tries.
Page 76 Chapter 4 Commissioning 2104.6536.72 - 4.4 -...
Page 77 Broadcasting Division CHAPTER 5 OPERATING Printed in Germany 2095.7346.32 - 5.0 -...
Page 79 Chapter 5 Operating CONTENTS 1 Introduction to Operation ............... 1 1.1 Local and Remote Operation .................1 1.2 Local Operation (via Display and Keyboard) ..........2 1.2.1 System Overview ..................2 1.2.2 Menu Keys ....................3 1.2.3 Operating Structure ..................4 1.2.3.1 Activating Local Operation ................. 4 1.2.3.2 System Overview –...
Page 80 Chapter 5 Operating 2.4.4 Menu Item User Administration ..............38 2.4.5 Menu Item SNMP Administration ...............39 2.4.6 Menu Item User Manual ................39 2.4.7 Visit R&S Website Menu Item ..............39 3 Sx801 Menus .................. 40 3.1 Transmitter Status: Status Menu ..............40 3.1.1 Status Indications, Warnings and Fault Messages ........40 3.1.2 Status >...
Page 81 Chapter 5 Operating 5.3.2 Linear Precorrection ...................70 5.4 Setting Nonlinear Precorrection ..............72 5.4.1 Main Function .....................73 5.4.2 Nonlinear Precorrection ................73 5.5 Setting Nonlinear Frequency Response Precorrection ......75 2104.6536.72 - 5.03 -...
Page 82 Chapter 5 Operating 2104.6536.72 - 5.04 -...
Page 83: Introduction To Operation
Chapter 5 Operating Introduction to Operation The R&S SCV8000 compact transmitter can be operated as follows: – Local operation using the display and menu keys on the front panel of the R&S SX801 – Operation via the web browser – Monitoring and control via SNMP In the case of operation via the web browser of a connected PC/client PC, there is the fol- lowing distinction: –...
Page 84: Local Operation (Via Display And Keyboard)
Chapter 5 Operating Local Operation (via Display and Keyboard) 1.2.1 System Overview Fig. 2 Possible error indications on the display of the R&S SX801 (front panel) 1) Display indicating which input is active 2) TV standard 3) Status of active input 4) Status of reference input 5) Sum warning display 6) Sum fault display...
Page 85: Menu Keys
Chapter 5 Operating Status Message Meaning Status of transmit- Transmitter is delivering power ter output - OFF - RF output deactivated by user OFF) Transmitter not delivering power but the RF output is enabled 1.2.2 Menu Keys Fig. 3 Menu operation Meaning / function MENU –...
Page 86: Operating Structure
Chapter 5 Operating 1.2.3 Operating Structure 1.2.3.1 Activating Local Operation To make settings locally on the transmitter, activate local operation.  Press the Local key so that the associated LED lights up. Note Various authorization levels protect against unauthorized access to crucial system settings. In local operation via keyboard and display you work by default with the factory preset user ID Operation (which authorizes you to make settings that directly affect transmitter opera- tion).
Page 87 Chapter 5 Operating The single arrow or double arrow in the top right-hand corner of the menu indicates the Note direction in which you can scroll the list. 3. Within the menu tree: Use the cursor keys  to select a lower-level menu path or a menu window and con- or .
Page 88: Selecting And Editing Settings
Chapter 5 Operating Alternative method of opening menus Use the key (press briefly) to open the SX801 menu tree straight from the system over- view. Fig. 7 SX801 menu tree 1.2.3.4 Selecting and Editing Settings Note Only those parameters identified by a double arrow can be adjusted. Locked and variable settings Depending on the user rights concerned and the type of access (local or remote access) some or all processing parameters can be locked.
Page 89 Chapter 5 Operating 1) Setting can be modified; a change takes effect immediately. 2) Setting can be changed, but the instrument needs to be restarted. 3) Maintenance rights are needed to modify the selected setting. 1) The selected parameter cannot be modified at this time (lack of authorization or local/remote state not appro- priate).
Page 90: Context Menu
Chapter 5 Operating Entering data via the Text Editor Fig. 9 Entering values 1) Entry line 2) Selectable characters 3) Command line 1. Use the cursor keys to move the cursor to the entry position. 2. To enter characters, move to the required character using the cursor keys and then con- firm with the key.
Page 91: Change User Id (Authorization)
Chapter 5 Operating Fig. 10 Context menu The content-oriented commands are found in the description for the respective menu win- dow. The function-oriented commands are listed and described below: Command Explanation Info Help texts for the respective menu window/menu item Open Opens the editor or the selection window for setting the parameters (same effect as pressing the...
Page 92 Chapter 5 Operating ID Operation (which authorizes you to make settings that directly affect transmitter opera- tion). Note You can change, create or delete user profiles with the aid of the user administration facility, which you call up via the web browser (see section "User Administration"). From the Change User context menu, you can log on in any menu under a different user ID.
Page 93 Chapter 5 Operating You are then locked on again with the rights of your chosen user. The Logon menu is auto- matically closed after a short while and the display once again shows the menu that was open before the change of user. Change of user via the display by entering a password (example) In the following example a user profile "Schmidt"...
Page 94: Remote Operation And Remote Control
Chapter 5 Operating 4. Enter the password in the editor. 5. Use the Logon command from the context menu to log on. User "Schmidt" is then logged on: Remote Operation and Remote Control Remote operation and remote control take place via a web browser. Depending on their rights, logged-on users can monitor the transmitter or control all of its Note functions.
Page 95 Chapter 5 Operating  For remote control connect the remote monitoring network by RJ45 cable to the (Eth- ernet Remote) port on the R&S SX801. Setting IP addresses at the exciter For communication between the transmitter and a local PC or a remote network client, the IP address of the Ethernet interface that is used in the R&S SX801 must be in the IP subnet of the PC or the remote monitoring network.
Page 96: Login
Chapter 5 Operating Checking and adapting the settings for Java Applets 1. Select the Security tab. 2. For the Internet zone select the Custom Level option. 3. In the tree structure go to Scripting > Scripting of Java applets and select the Enable option.
Page 97: Browser-Based Operation
Chapter 5 Operating User ID Authorization Password Maintenance Allows you to perform maintenance tasks; e.g. software 1234 update Operation Allows you to make settings that directly affect transmitter 1234 operation Query Read-only authorization 1234 Guest Read-only authorization – see Query 1234 Config-Engl Same as Configuration authorization;...
Page 98 Chapter 5 Operating 1) System overview: Current transmitter status 2) Not used with this transmitter 3) Navigator: Display and navigation through the transmitter menus 4) Menu window: Display of the menus selected in the navigator 5) Control panel: Elements for navigation in the menu system and for displaying and editing menu entries 6) Context menu (in the example, the user logged on remotely cannot execute any commands: key icon since the instrument is set for local operation) 7) Display of the transmitter name (default setting: Sx801)
Page 99 Chapter 5 Operating 1) Alternate display of the transmitter name and TV standard 2) L/R = Local/Remote display Navigator The navigator shows the tree structure of all transmitter menus. The different folders and menus can be opened by double-clicking using the mouse. The selected menus are dis- played in the menu window.
Page 100 Chapter 5 Operating Control panel The control panel allows navigation in the menu structure and menus and modification of settings. The individual controls are operated using the mouse or keyboard. 1) Used to change between menu entries, control editable values and enter numerical values; each click of the arrow keys (top/bottom) increments or decrements the number (corresponding arrow keys on the keyboard) 2) For editing (change to editing mode) and confirming settings (corresponds to the enter key on the keyboard) 3) Corresponds to the UP and DOWN cursor keys...
Page 101: Session End
Chapter 5 Operating Symbol Meaning Setting is not possible in this constellation. - none - This parameter value is for a display; it cannot be set. a) Execute the Restart command in the context menu for System > Tx Type > Transmitter to restart. b) The Info command from the context menu gives information on the necessary user rights among other things.
Page 102: User Administration
Chapter 5 Operating Note The IP address displayed in the popup window can vary depending on the system and set- ting. User Administration The user administration facility is available in conjunction with browser-based operation. The settings that you make in the user administration facility are (provided that no password is required) also valid for menu access via local operation.
Page 103 Chapter 5 Operating Display Meaning Select Selects the user to be processed Name User ID Logged on The user is not logged on (No) or is logged on once/several times (X times) at the system Web browser The user ID and authorization permit operation via the web browser (Yes, No) Front panel The user ID and authorization permit local operation (Yes, No)
Page 104: Creating, Changing And Deleting Users
Chapter 5 Operating User ID Authorization Password Query Read-only authorization 1234 Guest Read-only authorization – see Query 1234 Config-Engl Same as Configuration authorization; this ID also 1234 changes the menu language to English (irrespective of the preset language, e.g. Chinese) Superuser For configuring, creating and deleting user profiles, and 1234...
Page 105: Closing Active Sessions
Chapter 5 Operating Entry/selection Explanation Access right Selects a factory-set authorization level Is admin The user is also given user administration rights (configuration, cre- ation and deletion of users; no access to the user profiles Super- user and Guest) 3. Confirm your entries with Add user; clicking Reset discards your entries. Changing users All users have the right to change their own password.
Page 106: Monitoring And Control Via Snmp
Chapter 5 Operating 2. Mark the session (the user) that you want to close. 3. Select Delete selected session. The marked session is closed. 4. Return to the previous browser window by clicking Show user list. Monitoring and Control via SNMP SNMP (Simple Network Management Protocol) is used for monitoring and controlling a wide variety of different units in a network.
Page 107: Settings On Transmitter Side
Chapter 5 Operating  You can set multiple targets for error messages (alarm sinks).  Multiple communities can be set with Read Only authorization and Read/Write authori- zation. 1.5.1.1 Settings on Transmitter Side You can make settings yourself via the local display (if available), the web server or SNMP. The menu windows of the SNMP menu contain all the settings that are required for access- ing a transmitter.
Page 108 Chapter 5 Operating vated, no alarms/traps are sent when the transmitter is in local mode. You can activate/ deactivate this function using Inhibit Status in the SNMP > General menu window. The MIBs have the naming convention RS-XX8000-<TV/Radio Standard>-<Standby Concept/Option>-MIB. An example is RS-XX8000-ATV-TX-MIB for signal transmitters for analog TV.
Page 109: Testing Snmp Communications
Chapter 5 Operating 1.5.1.3 Testing SNMP Communications SNMP communications is properly set up if you have loaded the MIBs in your program and you are using the correct IP address of the transmitter and the correct community. For que- ries and settings you must set the SNMP version in your manager; the transmitters detect the used protocol automatically.
Page 110 Chapter 5 Operating The following illustration shows that the testTrap has been received correctly by the unit with the serial number 100111. Known problems If querying the data does not work or if you do not receive an alarm, check the following: –...
Page 111: Configuration
Chapter 5 Operating – Has the program which receives alarms been started and correctly configured? – In large networks: Is a router or firewall blocking the SNMP packets? – Is message suppression (Inhibit Status in the SNMP > General menu) activated? 1.5.1.4 Configuration This chapter provides an overview of the available properties.
Page 112 Chapter 5 Operating Fig. 13 RS-XX8000-DVB-TX-MIB 1) Name and OID for DualDrive MediumPower 2) Reference to groupEvents - 1.3.6.1.4.1.2566.127.1.2.167.4.5.1.1 3) Reference to groupDualDriveMP - 1.3.6.1.4.1.2566.127.1.2.167.4.5.1.4 4) Reference to groupAlarmDualDriveMP - 1.3.6.1.4.1.2566.127.1.2.167.4.5.1.5 Fig. 14 List of parameters (excerpt) for groupDualDriveMP 1) Name and OID for DualTuner 2) Reference to groupDualTuner - 1.3.6.1.4.1.2566.127.1.2.167.2.5.1.3 3) groupAlarmDualTuner - 1.3.6.1.4.1.2566.127.1.2.167.2.5.1.5 The groups contain all valid OIDs.
Page 113 Chapter 5 Operating Once again, unavailable parameters receive the reply NoSuchName, e.g. parameters from the transmitter A8 if only a 4+1 system is available (see module compliances under .1.3.6.1.4.1.2566.127.1.2.167.5.5.2). Setting alarms The transmitter-specific alarms offer an extensive range of configuration possibilities. Depending on the available system, it is possible to set detailed alarms: for example, for every item of status information in every amplifier in every rack of every transmitter in a me- dium-power n+1 system.
Page 114 Chapter 5 Operating Example: DVB, N+1, low power Valid MIBs: – RS-COMMON-MIB – RS-XX8000-COMMON-MIB – RS-XX8000-DVB-NP1-MIB Valid OIDs in "Module Compliance" path for N+1 low power: – Name: rsXx8000DVBNplus1LP – OID: 1.3.6.1.4.1.2566.127.1.2.167.5.5.2.2 Groups: – groupNsuLP - 1.36.1.4.1.2566.127.1.2.167.5.5.1.6 – groupAlarmNsuLP" - 1.3.6.1.4.1.2566.127.1.2.167.5.5.1.7 –...
Page 115: Menu Structure
Chapter 5 Operating Menu Structure The exciter software branches to different navigation areas. The Bookmarks and SX801 ar- eas are also accessible via the display of the R&S SX801, but the other areas are available exclusively via the WebGUI. Navigation areas of transmitter software ...
Page 116 Chapter 5 Operating Level 1 > Level 2 > Level 3 > Level 4 > Device Status Section 3.1.2 (DVB) Input Status Section 3.1.3 (DVB) Section 3.1.4 (ATV) Section 3.1.5 (ATSC) Logbook > Section 3.2 Summary Status Warning Fault Exciter >...
Page 117 Chapter 5 Operating Level 1 > Level 2 > Level 3 > Level 4 > DVB > Common Manual R&S SX801 Manual R&S SX801 SFN Delay Manual R&S SX801 Test Signals Manual R&S SX801 Monitor/ Manual R&S SX801 Monitor AUX Setup Status ATSC >...
Page 118 Chapter 5 Operating Level 1 > Level 2 > Level 3 > Level 4 > Satellites Manual R&S SX801 Amplifier Status Section 3.4.1 Amp 1 Amp 2 Setup Output Power Section 3.4.2 Trimming Section 3.4.3 Service Section 3.4.4 Amp 1 Amp 2 System >...
Page 119: Menu Item Sx801 > Parameter Set
Chapter 5 Operating Level 1 > Level 2 > Level 3 > Level 4 > Device Manual R&S SX801 Boards > Manual R&S SX801 Coder RF Board Amplifier GPS Board Receiver/Monitor Receiver AUX/ Monitor AUX ParI/O a) Path changed from previous value of "TV Settings" to "Exciter" b) Can only be seen when the ATV software option is enabled.
Page 120: Menu Item Txtool
Chapter 5 Operating Level 1 > Level 2 > Level 3 > Parameter Precorrection > Setting items: – Start Precorrector-GUI a) The precorrector GUI starts as a JAVA applet in its own window. 2.4.2 Menu Item TxTool You can use this menu item to start a separate web application in order to forward logbook or instrument information to the PC.
Page 121: Menu Item Snmp Administration
Chapter 5 Operating 2.4.5 Menu Item SNMP Administration Level 1 > Level 2 > Level 3 > Parameter SNMP Administra- Setting items: tion> – Please click here to download MIBs (pro- vided by IRT). a) When you double-click the menu item, depending on the browser used either a new window or a new tab will open.
Page 122: Sx801 Menus
Accordingly, the following sections describe only those menus that differ in terms of the soft- ware for the standalone exciter and the SCV8000E/R compact transmitter. Please note that the menu paths were modified as follows after editing of the manual for the Note R&S SX801 was completed (1st edition):...
Page 123: Status > Device Status (For Dvb)
Chapter 5 Operating This type of "LED" display using abbreviations (OK, W, F, etc.) and color (web browser only) Note is used throughout the entire menu. 3.1.2 Status > Device Status (for DVB) Display Explanation Sum Fault Sum Fault: One or more errors occurred RF level at the exciter output is OK There is no RF level at the exciter output even though the RF output is enabled...
Page 124 Chapter 5 Operating Display Explanation SFN Delay Desired time of transmission in the SFN cannot be complied with. Possible reasons: – the maximum delay set at the MIP inserter is too small for the (current) transmission link – faulty reference signal (GPS) Data rate Wrong data rate on the active input In the case of hierarchical coding, a warning is output if an incor-...
Page 125: Status > Input Status (For Dvb)
Chapter 5 Operating Display Explanation - OFF - External reference frequency is not present but it is also not needed External 1PPS source is present and the reference frequency is synchronized to the 1PPS External 1PPS source is not present or the reference frequency is not synchronized to the 1PPS External 1PPS source is not present or the reference frequency is not synchronized to the 1PPS and the Fail Delay Time set in...
Page 126 Chapter 5 Operating Display Explanation HP1 Connect Input signal is present at TS 1 - OFF - No input signal present at TS 1 HP1 Seamless Indicates the status of seamless input switchover for TS 1 (seamless switching) Seamless switching is activated and deactivated in the menu window Exciter >...
Page 127: Status (For Atv)
Chapter 5 Operating Display Explanation LP1 MIP fail No MIP at input TS 2. Possible reasons: – in the SFN: no MIP in input data stream – in MFN: No MIP in the input data stream and in the menu win- dow TV Settings >...
Page 128 Chapter 5 Operating Display Explanation Sum Warning One or more warnings are active Test Mode Transmitter has been switched to test mode HW Error A hardware fault has occurred in one or more modules; for fur- ther information on errors see logbook Temperature Temperature of the modules is OK At least one module is overheating...
Page 129: Status (For Atsc)
Chapter 5 Operating Display Status Explanation Carrier is modulated with the signal AF2 AF1/P Carrier is modulated with signal AF1 as well as the pilot tone AF1-2/P Carrier is modulated with the signals AF1 and AF2 as well as the pilot tone AF2/P Carrier is modulated with signal AF2 as well as the pilot tone...
Page 130 Chapter 5 Operating Display Explanation Input Valid transport stream present at active input In the case of hierarchical coding, the input is OK if valid trans- port streams are present at both inputs (for HP stream and LP stream). Invalid transport stream at active input (combined with the setting Type of Loss of Input = Warning, see section "Exciter >...
Page 131: Event Memory: Logbook Menu
Chapter 5 Operating Display Explanation The fan(s) failed; there is a high risk of overheating Active Input TS 1 is currently the active input TS 2 is currently the active input No active input selected; test generator is activated Data rate Correct data rate on the active input Wrong data rate on the active input Mute...
Page 132: Logbook Context Menu
Chapter 5 Operating – Time: Time of day of the event – Date: Date of the event Date and time of an event in the instrument display 1. To display the date and time, select a message and call the info window by pressing OK. 2.
Page 133: System > Tx Type > Transmitter
Chapter 5 Operating – Transmitter: Used to select the TV standard, to activate message suppression for the parallel remote interface, to determine the behavior of the parallel remote interface when switching between analog TV and digital TV, to activate the time scheduler for multistan- dard operation and to enter the transmitter name –...
Page 134: Output Stage: Amplifier Menu
Chapter 5 Operating Setting item Explanation Number of Amplifiers Selects the system configuration with 1 or 2 amplifiers – 1: System with a base amplifier – 2: System with base and extended amplifiers Tx Mode Sets the transmitter operating mode The options are as follows: –...
Page 135 Chapter 5 Operating Display Explanation RF OUT - OFF - RF deactivated (transmitter switched off) To switch on the transmitter, press the RF ON/OFF key. RF activated, transmitter output power acceptable RF activated, but transmitter output power below RF warning threshold RF activated, but transmitter output power below RF fault thresh- RF IN...
Page 136: Amplifier > Setup > Output Power
Chapter 5 Operating Display Explanation Temperature Temperature of standby amplifier power supply in acceptable supply R condition Temperature of standby amplifier power supply too high Transistor All output stage transistors in amplifier working properly One or more output stage transistors defective For more Information, see Amplifier >...
Page 137: Amplifier > Setup > Trimming
Chapter 5 Operating Setting item Explanation Output Power Sets the forward power Power Reduction Tests the warning and fault threshold Setting a power level reduces the output power of the transmitter although the actual nominal power (output power) remains the same. A reduction in the output power is simulated to test the warning and fault threshold.
Page 138: Amplifier > Service > Amp 1/Amp 2
Chapter 5 Operating 3.4.4 Amplifier > Service > AMP 1/AMP 2 Display Explanation Module current of an output stage module, x = 1 to 4 I Pre Preamplifier current I Drv x Module current of a driver module, x = 1 to 2 Temperature Heat sink temperature on the amplifier Amp Mon Att...
Page 139: Further Menus
Chapter 5 Operating Further Menus Multiple Parameter Sets: Parameter Set Menu You can use the Parameter Set menu window to create, load and save parameter sets for a number of different overall configurations. If the operating environment changes (e.g. change of frequency) you can access complete parameter sets instead of having to set each individual value.
Page 140: Saving Transmitter Information: Menu Item Txtool
Chapter 5 Operating Function Description State Loaded Set Displays the active (i.e. loaded) parameter set Operation State Display showing the status of the action that is being carried out (Ready, Loading, Saving, Copying) Current Set Changed Yellow: The device settings have been changed and no longer match the settings of the loaded parameter set.
Page 141 Chapter 5 Operating Execution of the TxTool requires write rights to the file system of the computer. To grant Note these rights you must confirm the security query. If you select Always trust content from this author, the security query will not be dis- played the next time the TxTool is called.
Page 142: Functions In Logbooks Window
Chapter 5 Operating 2. Select (depending on the window) which data is to be displayed (see the table under "Functions in Logbooks Window"). 3. Start readout of the data with Rescan (if this function is available in the window). Saving data Different options and formats are available for saving the data.
Page 143: Menu Item Snmp Administration
Chapter 5 Operating Menu Item SNMP Administration With the menu item SNMP Administration, you can download the Management Informa- tion Base (MIB) of the SNMP agent to configure the management station by means of this information. After calling up the menu item, a further browser window will be opened inviting you to download data: 2104.6536.72 - 5.61 -...
Page 144: Introduction To Manual Precorrection
Chapter 5 Operating Introduction to Manual Precorrection Factory set precorrection curves v. manual precorrection The transmitter equipment includes factory preset precorrection curves covering every fre- quency range and all dynamic ranges. The appropriate precorrection curve is automatically loaded in each case, so as a rule manual precorrection is not needed. In certain cases the precorrection can be further optimized by manual precorrection.
Page 145 Chapter 5 Operating Fig. 15 Initial operating window in the precorrector GUI The operating windows of the precorrector GUI are divided into the following areas:  Title bar (for separately opened window only)  Menu bar  Selection column with tabs ...
Page 146: Operating Functions
Chapter 5 Operating  Parameters > Rescan Refresh to show all parameters that can be displayed in the GUI  Cal > Calibration Access to the alignment parameters – for production staff only  Help > Help Access to help information ...
Page 147 Chapter 5 Operating Fig. 16 Basic structure of an operating field Each operating field consists of graphics areas and functional areas. The graphics areas are used to display the set characteristics. Here, you can interactively modify, reset or redraw the characteristics. You can also set a default characteristic. Using a contextual menu, you can access additional functions as well as a navigator for fine ad- justment.
Page 148: Graphic Areas
Chapter 5 Operating 5.2.2 Graphic Areas The graphics area basically consists of display and drawing levels. In many operating fields, the drawing level is not necessary. Display level (blue characteristic) In the display level, the characteristic that is currently set in the precorrector is displayed. If the precorrector function is switched off, a note to this effect will appear in the diagram.
Page 149 Chapter 5 Operating Fig. 17 Contextual menu for the precorrector GUI The contextual menu appears if you click on a vacant point of the drawing plane with the right mouse button. You can use the contextual menu to call up the navigator window for making fine settings.
Page 150 Chapter 5 Operating 3. Point to the right margin of the diagram with the mouse and set the last point. Input mode will be terminated and you can now edit the curve as required (see the sec- tion "Editing the characteristic"). Loading an existing characteristic curve Instead of creating a characteristic curve from scratch, you can load existing curves into the drawing level and edit them as required.
Page 151 Chapter 5 Operating 1. Call up the navigator window. Fig. 18 The navigator window 2. Click on the desired point with the mouse, or select it in the navigator window with the arrow keys at Select Point. The selected point is highlighted in red. 3.
Page 152: Setting Linear Precorrection
Chapter 5 Operating Setting Linear Precorrection The Linear operating field is for setting linear precorrection defaults which can be used to compensate amplitude frequency response and group delay errors at the channel filter be- low the transmitter. In the default setting this corrector is switched off. Fig.
Page 153 Chapter 5 Operating Functions, area 1 The following settings are possible:  Correction Amplitude > On/Off: Switches amplitude frequency response precorrection on or off.  Correction Amplitude Clear: Clears the data in the precorrector for the amplitude fre- quency response precorrection; you will be asked if you are sure you want to do this. ...
Page 154: Setting Nonlinear Precorrection
Chapter 5 Operating Graphics area 2: Modeling of the group delay The Linear Groupdelay diagram (in graphics area 2) has a coordinate system for display- ing and editing the characteristic for the amplitude frequency response. The x axis is used to display the frequency f in MHz relative to the carrier or to the center frequency.
Page 155: Main Function
Chapter 5 Operating Fig. 20 The Nonlinear operating window 5.4.1 Main Function The Corr > On/Off switch can be used to turn the entire nonlinear precorrection on or off. 5.4.2 Nonlinear Precorrection For manual precorrection, you model the amplitude and phase characteristics in the draw- ing level and then write them to the precorrection memory.
Page 156 Chapter 5 Operating  Curve Data Amplitude Read: Reads out the amplitude characteristic set in the nonlin- ear precorrector and shows it in the display level.  Edit History Amplitude Undo / Redo / Clear: History memory; settings in the drawing level can be undone step by step and redone.
Page 157: Setting Nonlinear Frequency Response Precorrection
Chapter 5 Operating Otherwise, this works analogously to graphics area 1 except that the corresponding func- tions (e.g. for Read/Write) are found in functional area 2. The diagram indicates if nonlinear phase precorrection is switched off. The display and drawing levels still remain active, however. For further details, please see the "Characteristic Curves"...
Page 158 Chapter 5 Operating Main functions  Correction > On/Off: Switches the entire frequency response correction on or off.  Correction Point 1 (2) > On/Off: Switches frequency response correction on branch 1 (or 2) on or off.  Position Point 1 (2): Entry of the threshold for the point of frequency response correc- tion 1 (or 2).
Page 159 Broadcasting Division CHAPTER 6 MAINTENANCE Printed in Germany 2095.7346.32 - 6.0 -...
Page 161 Chapter 6 Maintenance CONTENTS 1 Maintenance Information ..............1 1.1 Overview of Maintenance Actions ..............1 2 Software Update ................2 2104.6536.72 - 6.01 -...
Page 162 Chapter 6 Maintenance 2104.6536.72 - 6.02 -...
Page 163 Chapter 6 Maintenance Maintenance Information Overview of Maintenance Actions The transmitter is designed to provide years of operation with little maintenance. Mainte- nance is restricted to the following actions: Action Interval/Comment Described in Software update Exciter and – When available In this chapter amplifier –...
Page 164 Chapter 6 Maintenance Software Update To perform a software update, you must connect the transmitter to a PC or network client via the Ethernet and make sure that the interface (X30, ETHERNET LOCAL or X31, ETH- ERNET REMOTE) is correctly configured. Proceed as follows to perform a software update: 1.
Page 165 Chapter 6 Maintenance 4. In the network, search for updatable devices by clicking Next. The devices that were found will be displayed within a few seconds. 5. If, despite correct network settings, no devices are found, the VISA interface is probably active.
Page 166 Chapter 6 Maintenance 6. In the Device List, select the device to be updated by enabling the check box. 7. Click Install to start the update. After performing the update, a corresponding message will be output in the output line at the bottom left of the window.
Page 167 Broadcasting Division CHAPTER 7 TROUBLESHOOTING Printed in Germany 2095.7346.32 - 7.0 -...
Page 169 Chapter 7 Troubleshooting Information Troubleshooting information will be provided at a later date. 2095.4330.32 - 7.1 -...
Page 171 Broadcasting Division CHAPTER 8 SERVICE Printed in Germany 2095.7346.32 - 8.0 -...
Page 173 Chapter 8 Service CONTENTS 1 Information ..................1 1.1 Safety .......................1 1.2 Cabling the Compact Transmitter ..............1 1.2.1 Single Transmitter with One Amplifier ............2 1.2.2 Single Transmitter with Two Amplifiers ............3 2 Replacing Instruments ..............4 2.1 Replacing the R&S SX801 Exciter ..............4 2.1.1 Removing the Exciter ...................4 2.1.2 Installing the Exciter ..................4 2.2 Replacing Amplifiers in the R&S VH8001Cx Family ........4...
Page 174 Chapter 8 Service 2104.6536.72 - 8.02 -...
Page 175: Information
Chapter 8 Service Information There are no parts inside the instruments that can be repaired by the customer. The local Rohde & Schwarz representative must handle all service cases. It is recommended to keep one or more replacement instruments on hand in order to be able to continue transmitting if service is required.
Page 176: Single Transmitter With One Amplifier
Chapter 8 Service For easy connection of replacement instruments and devices, proceed as follows: 1. Determine the connector number on the yellow cable sleeve. 2. Find the same number on the instrument to be connected (connector or connection di- agram). 3.
Page 177: Single Transmitter With Two Amplifiers
Chapter 8 Service 1.2.2 Single Transmitter with Two Amplifiers Fig. 2 Example: Cabling the R&S SCV8302E 1) Power feed 2) ASI input 3) RF signal from exciter to input of base amplifier 4) RF signal from integrated splitter of base amplifier to input of extended amplifier 5) CAN bus 6) RF signal from output of base amplifier to input of integrated combiner in extended amplifier 7) RF signal from output of extended amplifier to input of integrated combiner in extended amplifier...
Page 178: Replacing Instruments
Chapter 8 Service Replacing Instruments You can remove and replace the following transmitter components in case any faults occur:  R&S SX801 exciter  Amplifiers in the R&S VH8001Cx family  as well as the following instrument components: – Fans for the exciter and amplifiers –...
Page 179: Installing The Amplifier
Chapter 8 Service 2. Remove all of the remaining cables on the rear of the amplifier. 3. Carefully remove the amplifier from the transmitter system. 2.2.2 Installing the Amplifier To install the exciter, simply reverse the instructions for removing the exciter. 1.
Page 180: Block Diagrams
Chapter 8 Service Block Diagrams RF Block Diagram An RF block diagram can be found in the circuit diagrams in the annex to this manual. Block Diagram, Control Line A block diagram for the control lines can be found in the circuit diagrams in the annex to this manual.
Page 181: Backing Up And Restoring The Configuration Settings
Chapter 8 Service Backing Up and Restoring the Configuration Settings Prior to replacing the R&S SX801 exciter, all of the configuration settings can be saved on the PC. If the All option is used, all of the settings for the currently selected operating mode will be saved.
Page 182 Chapter 8 Service 2104.6536.72 - 8.8 -...
Page 183 Broadcasting Division CHAPTER 9 ANNEX Printed in Germany 2095.7346.32 - 9.0 -...
Page 185 Broadcasting Division Interface Description TRANSMITTER Printed in Germany 2098.1190.72 - 9.A -...
Page 187 Chapter 9 Annex CONTENTS 1 Interface Description ............... 1 1.1 Internal Interfaces ...................1 1.1.1 CAN Bus Control Line ..................1 1.1.2 RF Signals ....................2 1.1.2.1 Single Transmitter with Base Amplifier (R&S SCV8x01E) ......... 2 1.1.2.2 Single Transmitter with Base and Extended Amplifier (R&S SCV8x02E) ..2 1.2 External Interfaces ..................3 1.2.1 R&S SX801 Exciter –...
Page 188 Chapter 9 Annex 2104.6536.72 - 9.02 -...
Page 189: Interface Description
Chapter 9 Annex Interface Description Internal Interfaces 1.1.1 CAN Bus Control Line The CAN bus control line provides the connection between the R&S SX801 exciter (X5) and one or two amplifiers (X11). Signal name Direction Range of values Contact Comment X5.1/X11.1 Ground X5.9/X11.9...
Page 190: Rf Signals
Chapter 9 Annex Signal name Direction Range of values Contact Comment /AC_OK Internal pull up, X5.15/X11.15 AC voltage phase Ri = 1000  monitor – 0 V: AC ok – Open: No AC, phase failure, overvoltage and undervoltage SHUT_DOWN Internal pull up, X5.8/X11.8 –...
Page 191: External Interfaces
Chapter 9 Annex Signal name Direction Range of values Contact Comment W6010 470 MHz to 862 MHz X60/X10 RF signal from exciter to = 2 to 5dBm input of base amplifier rms,nom External Interfaces 1.2.1 R&S SX801 Exciter – Front Panel 1.2.1.1 X61 (RF) –...
Page 192: X20 (Ts1): Signal Input 1 (Also Hp Stream)
Chapter 9 Annex 1) Max. 135 VA DC option Signal name Direction Value range Contact Comment Bidirect. 38 VDC to 76 VDC, X1.L DC power supply I  4.5 A Bidirect. X1.N DC power supply Bidirect. X1.PE DC power supply 1) Max.
Page 193: X23 (Pps In) - 1Pps Ext In: Second Pulse From External Gps
Chapter 9 Annex 1.2.2.5 X23 (PPS IN) – 1PPS EXT IN: Second Pulse from External GPS BNC, female, 50  Signal name Direction Value range Contact Comment 50  for AC 1 PPS EXT Input X23.1 Bidirect. X23.2 1.2.2.6 X25 (AUDIO): Analog Input Audio AF D-Sub, male, 15-pin Signal name Direction...
Page 194: X27 (Nicam) - Nicam Data: Digital Data Input For Nicam 728
Chapter 9 Annex Signal name Direction Value range Contact Comment = 75  BTSC Input 0.25 V to 2 V X26.1 Bidirect. X26.2 1.2.2.8 X27 (NICAM) – NICAM Data: Digital Data Input for NICAM 728 BNC, female, 50  Signal name Direction Value range Contact...
Page 195: X66 (Gps) - Gps Antenna/Option Sx801B13: Antenna Input For Gps Receiver
Chapter 9 Annex 1.2.2.11 X66 (GPS) – GPS Antenna/Option SX801B13: Antenna Input for GPS Receiver SMA, female Signal name Direction Value range Contact Comment 50  GPS ANTENNA Input Minimum level: X66.1 -128 dBm Bidirect. X66.2 1.2.3 R&S VH8x01C1 Base Amplifier – Rear Panel 1.2.3.1 X1 (MAINS): Power Feed (AC) 85 V to 265 V AC...
Page 196: X6 (Aux Det 1): Auxiliary Detector 1
Chapter 9 Annex Signal name Direction Range of values Contact Comment POWER_OUT Output = 200/300 W RF output (base rms,nom amplifier) 470 MHz to 862 MHz at 50  load, S  1.4 1.2.3.3 X6 (AUX DET 1): Auxiliary Detector 1 Note In base amplifier only SMA, female...
Page 197: R&S Vh8X01C2 Extended Amplifier - Rear Panel
Chapter 9 Annex 1.2.4 R&S VH8x01C2 Extended Amplifier – Rear Panel 1.2.4.1 X1 (MAINS): Power Feed (AC) 85 V to 265 V AC M3E+6X+PE connector from Schaltbau Signal Direction Value range Contact Remarks name Input = 100 V to 240 V AC (±10 %); X1.2 AC supply 50 Hz to 60 Hz (±5 %);...
Page 198 Chapter 9 Annex 2104.6536.72 - 9.10 -...
Page 199 Broadcasting Division Drawings and Diagrams TRANSMITTER Printed in Germany 2098.1190.72 - 9.B -...
Page 207 el.Kennz Benennung / Hinweise Sachnummer Hersteller Bestellbezeichnung enthalten in Part Designation Stock No. Manufacturer Designation contained in ACHTUNG EGB /ATTENTION ESD *VARIANTENERKLAERUNG *EXPLANATION OF MODELS VAR02=FUER VERWENDUNG OHNE GESTELL MOD02=FOR USE WITHOUT RACK VAR03=FUER VERWENDUNG MIT GESTELL MOD03=FOR USE WITH RACK R53D RL 0.35W 120 OHM+-0.1% TK25 0083.7372.00...
Page 209 el.Kennz Benennung / Hinweise Sachnummer Hersteller Bestellbezeichnung enthalten in Part Designation Stock No. Manufacturer Designation contained in ACHTUNG EGB /ATTENTION ESD *VARIANTENERKLAERUNG *EXPLANATION OF MODELS VAR02=FUER VERWENDUNG OHNE GESTELL MOD02=FOR USE WITHOUT RACK VAR03=FUER VERWENDUNG MIT GESTELL MOD03=FOR USE WITH RACK R53D RL 0.35W 120 OHM+-0.1% TK25 0083.7372.00...
Page 211 Broadcasting Division Spare Parts Lists TRANSMITTER Printed in Germany 2098.1190.72 - 9.C -...
Page 213 Pos.-Nr. Menge El.Kennz Benennung / Bezeichnung Sachnummer Ersatzteil ItemNo Quantity Unit Ref.Des. Designation Stock No. Subst.part ACHTUNG EGB/ATTENTION ESD *VARIANTENERKLAERUNG *EXPLANATION OF MODELS VAR03=FUER SCX/XCX8301 MOD03=FOR SCX/XCX8301 VAR12=FUER SCX/XCX8302 VERWENDUNG OHNE GESTELL MOD12=FOR SCX/XCX8302 WITHOUT USING A RACK VAR13=FUER SCX/XCX8302 VERWENDUNG MIT GESTELL MOD13=FOR SCX/XCX8302 USING A RACK...

This manual is also suitable for:

Vh8201c1 Vh8301c1 Sx801 Vh8001cx

Rohde & Schwarz SCV8000E/R System Manual

Table of Contents

Table of Contents

Unpacking and Setting Up/Connecting the Cables

Introduction to Operation/Menu Structure

Table of Contents

Interface Description

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz SCV8000E/R

Summary of Contents for Rohde & Schwarz SCV8000E/R

This manual is also suitable for:

Table of Contents
