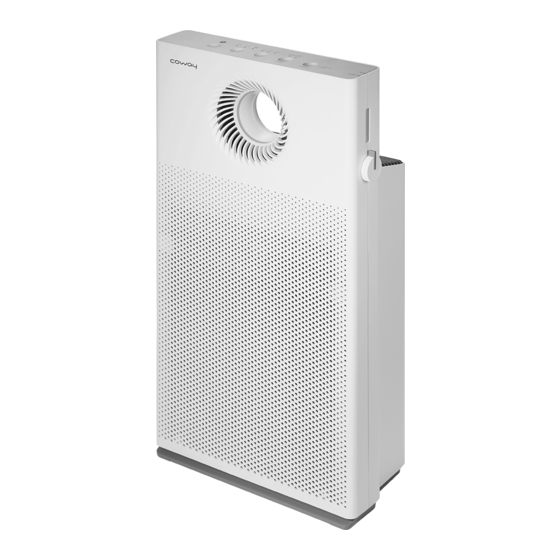

Coway AIRMEGA AP-1220B Manual

Hide thumbs Also See for AIRMEGA AP-1220B:

Advertisement

Quick Links

Coway Air Purifier
AP-1220B

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIRMEGA AP-1220B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coway AIRMEGA AP-1220B

Summary of Contents for Coway AIRMEGA AP-1220B

  • Page 1 Coway Air Purifier AP-1220B...
  • Page 2 FEATURES Superior Air Cleaning In order to remove ne dust in the indoor air, the product uses a powerful ultra- ne dust collecting lter and optimized lter system to remove contaminants quickly. Power Circulation of Clean Air The normal circulation and focus circulation functions circulate clean air rapidly in a variety of directions.

  • Page 3: Table Of Contents

    DEAR CUSTOMERS Coway air puri er. Thank you for using the Please be sure to read this user manual to use and maintain your air puri er correctly. If you experience any problems during use, you can refer to this user manual to resolve them.

  • Page 4: Safety Information

    SAFETY INFORMATION The following information is for user safety that should be observed. It is to ensure user safety and prevent property damage. Please read the precautions carefully and use the product correctly. 220 V – 240 V~ 50 Hz, 60 Hz only DANGER : Failing to follow the precautions below may result in serious injury or even death.
  • Page 5 • Do not install in places with a lot of humidity or dust or places where water (rainwater) splashes. • Do not use or store combustible gases or ammable materials near this product. • If there is a strange sound, burning smell, or smoke from the device, immediately unplug the power plug and contact a service center.

  • Page 6: Warning

    SAFETY INFORMATION WARNING : Failing to follow the precautions below may result in considerable physical injury or property damage. • Do not unplug by pulling on the power cord. • Plug into a power socket connected to an earth leakage circuit breaker (current sensitivity 30 mA or less).
  • Page 7 • Do not push or lean on the puri er. The puri er may fall over. • Do not use for a long time in places that are sealed or where children, the elderly, or sick people are. • Do not block the vent with laundry or curtains. •...

  • Page 8: Parts Name

    PARTS NAME Front/Rear Front cover Multi-action Air outlet lever Pollution sensor Air inlet Power cord Detachable top vent grille Control panel...
  • Page 9 Accessories User Manual...

  • Page 10: Air Purification Process

    High performance GreenHEPA™ lter has been applied for superior performance in removing ne dust and cigarette smoke. Coway GreenHEPA™ lter are treated with preservatives(Silver sodium hydrogen zinc phosphate and thiabendazole) to protect the lter from the growth of mold and bacteria and prolong lter life.
  • Page 11 BEFORE USE Please check before use! This product is for 220 V- 240 V~ 50 Hz, 60 Hz only. Make sure to connect the power plug to a 220 V- 240 V~ 50 Hz, 60 Hz outlet. How to Install Filter - Be sure to remove the packaging vinyl before installing the lter.
  • Page 12 INDICATORS AND BUTTONS Indicators Light Auto Mode Silent Mode Turbo Mode Air volume Filter alarm Sensor Indicator Indicator Indicator Indicator Indicator Circulation Mode Indicator Pollution level Indicator Light Sensor Auto Mode Indicator This sensor detects light around the The indicator lights up when Auto Mode product.
  • Page 13 Buttons Power Mode Air Volume Filter Replacement Mood/Lock button button button Cycle button button Multi-action lever Power Button Mode Button Use the button to turn the product on Press the Mode button to switch between and o . Auto → Silent → Turbo Modes. When you operate the product for the rst time, it is operated in Auto Mode.
  • Page 14 HOW TO USE - Plug the power cord into an outlet before operating the product. - When the product is turned on for the rst time, it operates in Auto Mode, and Tips afterward, it operates in the previously used mode. ■...
  • Page 15 ▶ Auto Mode The device automatically adjusts the air volume (Low → Medium → Strong) according to the indoor pollution level detected by the sensor to operate e ciently. This mode is convenient for general users. Pollution Level 1 Pollution Levels 2, 3 Pollution Level 4 Air Volume Auto Level 1...
  • Page 16 FORCED FILTER RESET MODE How to Force-reset Filter Use this function if you have replaced or repaired the lter before the lter alarm indicator was turned on. 1. Press the Filter Replacement Cycle button and the Mood button simultaneously for more than 2 seconds while the product is operating.
  • Page 17 ADJUST PARTICLE SENSOR How to adjust the sensitivity of the particle sensor When you operate the product for the rst time, the pollution sensor is set at the standard sensitivity. If the pollution level indicator remains at High after the air puri er operates for more than two hours where the pollution level is high, or if the pollution level indicator remains at Clean for more than one hour where the pollution level is high, you can adjust the sensor’s sensitivity as follows.

  • Page 18: How To Clean

    HOW TO CLEAN - Always unplug the power cord before cleaning. - Do not use organic solvents (thinner, etc.), bleach, or detergents containing chlorine or abrasives to clean the product. Tips - Do not immerse the product in water or spray water on it. ■...
  • Page 19 - Always unplug the power cord before cleaning the lter. - The Pre- lter can be restored by removing dust or washing with water. - Failure to clean the Pre- lter for a long time may result in poor product performance. - The Customized lter(Optional) , Deodorization lter and GreenHEPA™...

  • Page 20: Filter

    - Refer to the lter installation method on page 10 to replace the lter. - Be sure to check the front side when installing the lter. - Use genuine Coway lter to maintain optimal performance of the product. - Always unplug the power cord before replacing the lter.
  • Page 21 ■ How to Replace Customized lter(Optional) 1. Open the front cover, remove the ultra ne Pre- lter from the product, and remove the Customized lter(Optional) from the ultra ne Pre- lter. ▶ 2. Remove the packaging vinyl from the new Customized lter(Optional) and insert it into the back of the ultra ne Pre- lter.
  • Page 22 TROUBLE SHOOTING Even when the product is not broken, the air puri er may malfunction due to misuse by the user or other minor causes. Check the following in such a circumstance to resolve the issue easily without assistance from the service center. If the problem persists after checking the items below, please contact the service center.
  • Page 23 SPECIFICATION Product Name Air Puri er Model Name AP-1220B Rated Voltage 220 V - 240 V~ 50 Hz, 60 Hz Phase Single phase Power Consumption 50 W Product Insulation Class Class 2 equipment Dust Collection Method Mechanical dust collection (HEPA lter) Safety Device Power cut o upon opening/closing of the door Installation Location...
  • Page 24 INCLUDING ITS REPRESENTATIVES, TO MAKE ANY only to Product used for an application speci ed REPRESENTATION OR TO OFFER ANY WARRANTY, by COWAY for the Product and applied in strict CONDITION OR GUARANTY IN RESPECT OF THE accordance with COWAY published speci cations PRODUCT OTHER THAN THIS WARRANTY.
  • Page 25 COWAY no later than accident, alteration, improper installation or thirty (30) days after a defect is discovered or other acts that are not the fault of Coway or should by reasonable diligence have been the manufacturer of the product or that are discovered.
