Holux GR-89 Specifications

GPS
Product series

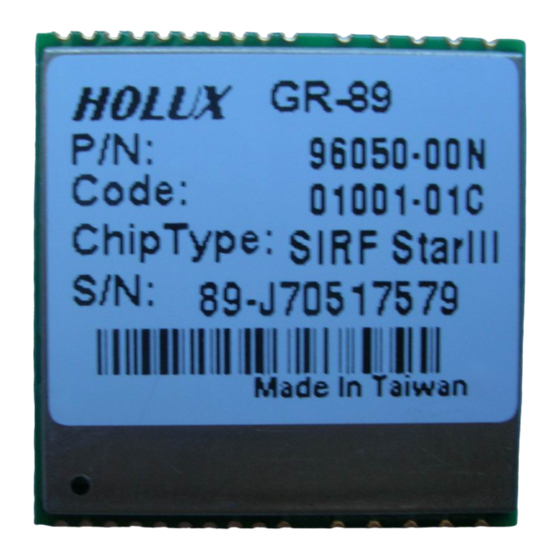

GR-89 GPS Receiver Module

Main Features

SiRF GSC3f chipset with embedded ARM7TDMI CPU available for
customized applications in firmware.
20-Channel GPS Receiver for fast acquisition and reacquisition.
Very compact size, only 25.4 * 25.4 * 3 mm.
200,000 effective correlators for fast Time To First Fix (TTFF), even at
poor satellite signal.
Built-in WAAS/EGNOS Demodulator.
Low power
Push-To-Fix mode.
Support NMEA-0183 v2.2 data protocol and SiRF binary code.
Real time navigation for location based services.
For Car Navigation, Marine Navigation, Fleet Management, AVL and
Location-Based Services, Auto Pilot, Personal Navigation or touring
devices, Tracking devices/systems and Mapping devices application.

Specifications

Acquisition at low signal levels:
Cold/Warm/Hot start: 42/38/1 sec. (average)
Position Accuracy
Autonomous: <10 meters at 2DRMS.
SBAS: <7 meters at 2DRMS, WAAS corrected.
DGPS: 1-5 meters at DGPS corrected.
Receiver:
Tracking : L1/CA code
Channel : 20
Max. Update rate: 1 HZ
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: 886-3-6687000 FAX:886-3-6687111 E-mail:info@holux.com.tw http:www.holux.com.tw
consumption with
※ :
With HOLUX, You never lose the way!
Advanced Trickle-Power and
