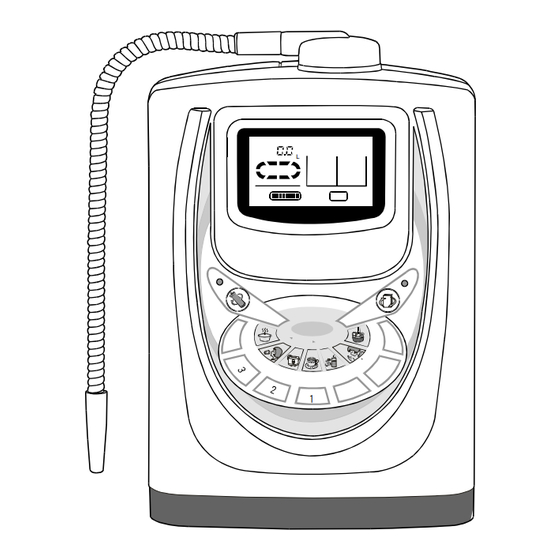

JA-568
【
】
CONTENT
Attention
Components of Electrolysis Water
Ionizer and Its Accessories
Panel Operations and Functions
Generationof Calcium Ionized Water
Replacement of Filter Cartridge
Trouble Shooting Guide
Main Specification
Advantages of Drinking Alkaline
Calcium Ionized Water
Usage of Acidic Ionized Water
Installation of Alternative Switch
USER'S Manual
L
1
1
3
4
5
6
7
8
9
10
11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PurePro JA-568
Summary of Contents for PurePro JA-568
- Page 1 JA-568 USER'S Manual 【 】 CONTENT Attention Components of Electrolysis Water Ionizer and Its Accessories Panel Operations and Functions Generationof Calcium Ionized Water Replacement of Filter Cartridge Trouble Shooting Guide Main Specification Advantages of Drinking Alkaline Calcium Ionized Water Usage of Acidic Ionized Water...
- Page 2 Before you use the electrolysis water ionizer, please read the following notices carefully and adhere to them during using it strictly, or it is possible to damage the machine and your family's health. Do not use turbid water as well wate r, unde rgr ound wa te r or heavy metal polluted water.
- Page 3 Please prevent the machine from extreme bumping or shaking, avoid heavy heat ad strong sunlight. Please pour water into the machine every bay prior to using it. Please drink ionized water generated by electrolysis. As soon as possible. (Under a sealed condition, period of efficacy of the water is one day in normal atmosphere temperature, and it is two days in fridge) Do not use ionized water to breed goldfish or tropical fish, lest...
- Page 4 Liquid Crystal Display Operation Panel Power Supply Cable Alkaline Water Acidic Water Silver Fiber Activated Carbon Filter Shell Cover Hose Clip x 2 PH Testing Liquid Connection valve 10ml Snake Hose x 1 Water Inlet / Outlet Suction Used to Fix Hanging Fixture x 1 Hose x 2 Water Drain Hose...
-
Page 5: Introduction Of Lcd
Water Flow Volume Water Temperature Cleaning Button (Filter Cartridge Replacement Indicator When replacement light goes on, it indicates the filter's life is over. Replacement Signal Replacement/life Reset Button) (When the light is on, please press "start" button to begin intense internal cleaning;... - Page 6 Generation of Alkaline Water: turn the tap on and water Alkaline Water flows into the machine. During puocessing back light goes on, buzzer beeps 3 times and arrow indicator points toward Alkaline Press the selection button for the required PH level. With different press, PH value size varies.
- Page 7 When intense cleaning light is on, 1.When replacement light goes on, please turn the tap on, press start the filter cartridge has exceeded total button, cleaning light flickers and water flow volume; it must be music is played. After cleaning is replaced immediately to ensure Replacement Cleaning...
- Page 8 Phenomenon Reason for problems and handling guideline Power background Light mot on or LCD Ensure power cord is connected to an electrical outlet Displays nothing 1.Water pressure too low, the machine does not work correctly, operator Back light is mot on installs additional water pump.
- Page 9 Power Supply AC:220V/50HZ(customized product)110V/60HZ Power Consumption About 320W(max) Electrolysis Material Nanometer Titanium Alloys Electrolysis Trough In-Water Pressure 1~6.5kg/cm Continuous Electrolysis Technique (water volume and Electrolysis Technique temperature gauge built-in) Machine Protection Fuse 10Aand electrical board:2A electrical power overheating Installation protection installed, transformer temperature protection installed. Processing rate of water 2./minute: [In-water pressure is 0.1Mpa(about 1kgf/cm )] Water Exit Volume 3L/minue:...
- Page 10 Prevent aging: moisture content of human body cellsreduces with increasing age. When production andreservation ability of moisture declines gradually, if full water is provided continuously, the cells can bemo istened ev er, th e sp eed o f agi ng w ill slo wer downobservably.
- Page 11 Keep normal body temperature: adju stmen t of body t empe rature mai n ly d epend s on the adjustment center inthe below thalamus of the brain. If lack of water, thebody temperature will rise above normal, which causesperturbation of function of the below thalamus after along time.
- Page 12 Way1 If the water outlet is internal screw thread (the below picture 1) 1.At first combine 2-layer screw tooth with the water separator, then screw them tight (procedure 1,2,3). 2.Unscrew the waver of the tap (procedure 4). 3.The set of water separator equipped If the tap your family uses is with the gasket is fixed to the tap, then European or American pattern (as...
