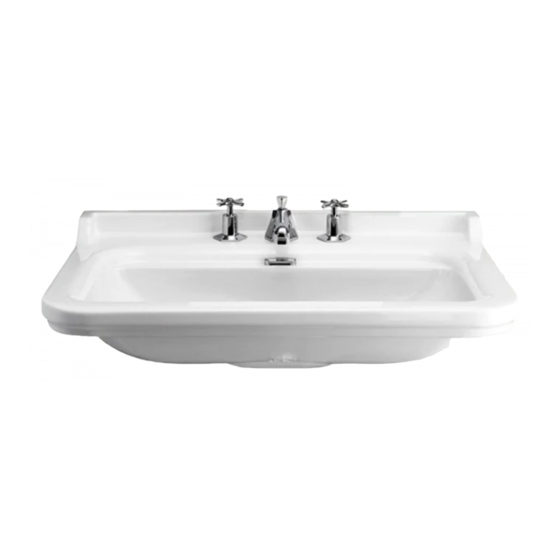

Crosswater US-WF0813SCW Installation Instructions Manual

31" / 39" / 59" Basin
US-WF0813SCW / US-WF1003SCW /
US-WF1503SCW
31" / 39" / 59" Basin Frame
US-WF80X81C / US-WF100X81C / US-WF150X81C
Installation Instructions
Introduction
All parts have been fully inspected throughout the production process
and only leaves our factory after a 15 stage QC process.
Carefully remove the items from the box and check that all parts have
been supplied.
Installation should be completed by at least two suitably competent
installers
Before beginning installation, please check for any damage that may
have occurred during transport.
Improper installation shall result in loss of warranty in case of damage
caused by impacts or rubbing against rough surfaces.
The wall fixings supplied may not be suitable for your installation.
You may need to source alternatives depending on the material and
strength of the wall you are fixing to.
IMPORTANT: Please read these instructions carefully before you
begin and retain for future reference.
We do not accept responsibility for any problems that may occur
through incorrect installation.
Installation notes
NOTES: The installation must comply with all plumbing codes including
local codes and be installed by a licensed plumbing contractor.
Assemble the parts on a mat to protect against scratching the surface.
Avoid getting cement, grit, sand or masonry products on to the surface.
Protect and cover the items during installation, other tradesmen
might damage them if no precautions are taken.
INSTALLATION: Remember to turn off the mains water supply before
connecting to any existing pipe work or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise before drilling holes in a wall or floor.

Tools required

Tape Safety
measure glasses
1 / " Hammer
4
drill
Parts supplied - basin frame
31" Frame
39" Frame
59" Frame
(x2) 31", 39" Frame
(x3) 59" Frame
(x8) 31", 39" Frame
(x12) 59" Frame
(x2) 31", 39" Frame
(x3) 59" Frame
Flat head
screwdriver
RH leg
Center leg
59" Frame
LH leg
ONLY
Pencil Spirit
level
