Summary of Contents for Plymold Cebra Wall Style

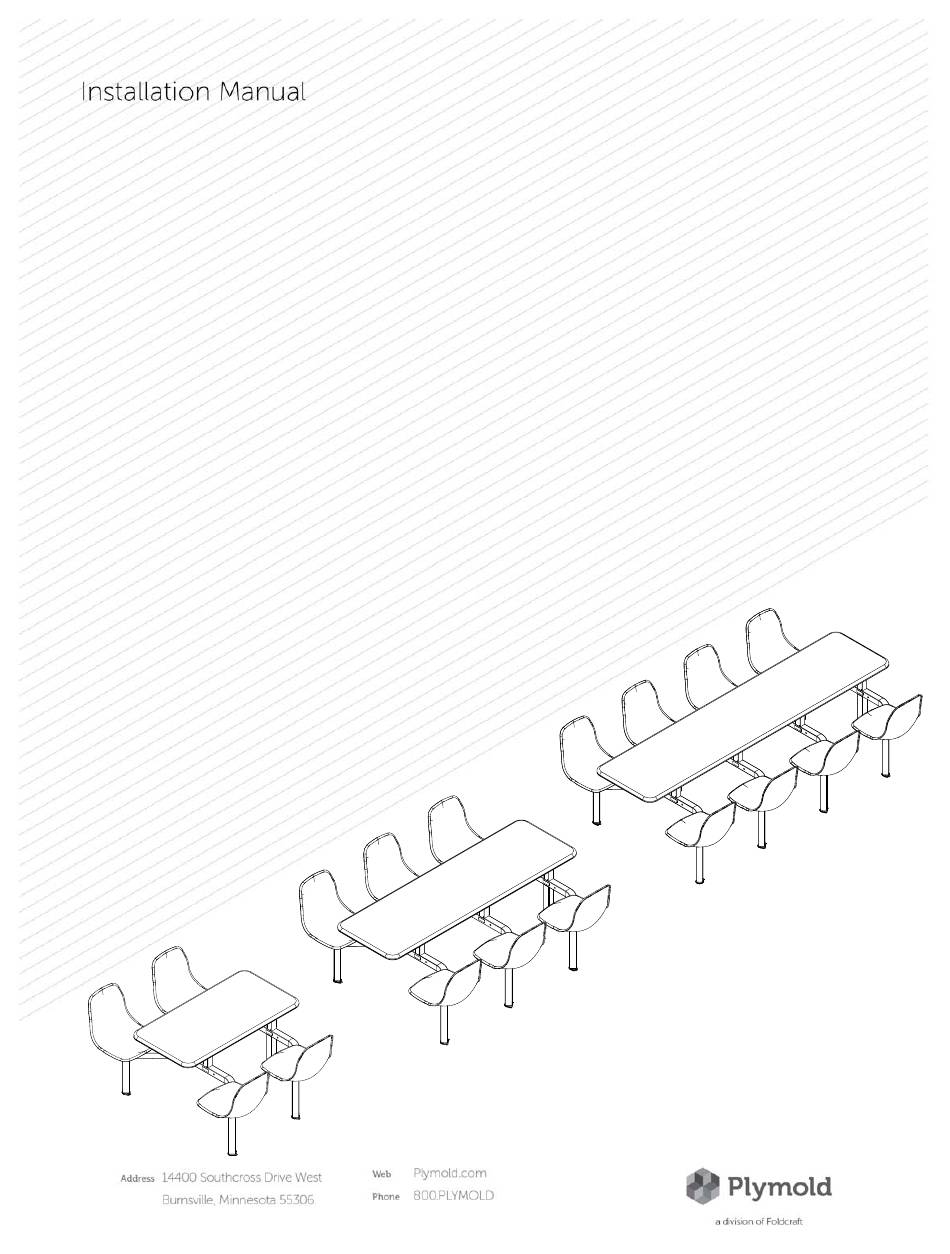

  • Page 1 Cebra Wall Style   Cluster frames  Z000000081  Revised  06/24/19 ...
  • Page 2 Page 2 of 5  Cebra Wall Style Frames  Unpacking Your Shipment  Unpack and iden fy each component in  each box that you received.   Components  Frame—3 Leg  Coupling                Frame—2 Leg    Hardware  Acorn Nut  3/8‐16   Plas c Floor  Teardrop Glide  #10x1” Screw  Hex Head Cap  Hex Head Cap  Screw 3/8‐16 x 3.5  Screw 3/8‐16 x 4.5  Tools Required  Pencil or Marker  Hammer Drill w/ 1/4” Masonry Bit  Screw Driver  Screw Gun w/ #2 Phillips Bit  Tape Measure  Level  7/16”, 9/16” Socket and Open end Wrench ...
  • Page 3 Page 3 of 5  Cebra Wall Style Frames  Assembly  Step 1: Glide Assembly   a.  Assemble tear drop thread‐in glide into the insert,  on the bo om of each of the legs.  Step 2: Frame Assembly (4 Seat Wall Style)  a.  Start with a 3 leg frame align upper holes in frame with holes in coupling.  Using (2) 3/8”‐16 x 3.5 hex head cap screw  and acorn nut, assemble the three leg sec on to the coupling.  (fig .1)  b.  Now grab a 2 leg frame and align the upper holes with the other end of the coupling. Using (2) 3/8”‐16 x 3.5 hex  head cap screw and acorn nut, assemble the two leg sec on to the coupling.  (fig.1)  3 Leg Frame  Finished  Assembly  2 Leg Frame  3 1/2” Cap  Screw  fig. 2  Acorn Nut  fig. 1  Step 3 Frame Assembly (6 Seat Wall Style)  a.  Start with a 3 leg frame align upper holes in frame with holes in coupling.  Using (2) 3/8”‐16 x 3.5 hex head cap  screw and acorn nut, assemble the three leg sec on to the coupling.  (fig .3)  b.  Now grab a 2 leg frame along with a 2nd coupling.  Align the upper holes with the other end of the coupling. Using  (2) 3/8”‐16 x 4.5 hex head cap screw and acorn nut, assemble the 2 leg sec on to the two couplings.  (fig.3)  c.  Grab 1 more 2 Leg Support.   Align holes in coupling with holes  in ver cal supports of your 2 leg frame.   Using  3/8”‐16 x 3.5 hex head cap screw and acorn nut, assemble the coupling and leg together. (fig. 3) ...
  • Page 4 Page 4 of 5  Cebra Wall Style Frames  Assembly  3 Leg  2 Leg  Finished  3 1/2” Bolt  Assembly  Acorn Nut  Acorn Nut  4 1/2” Bolt  fig. 4  3 1/2” Bolt  fig. 3  2 Leg  Step 4 Frame Assembly (8 Seat Wall Style)  a.  Start with a 3 leg frame align upper holes in frame with holes in coupling.  Using (2) 3/8”‐16 x 3.5 hex head cap screw  and acorn nut, assemble the three leg sec on to the coupling.  (fig .3)  b.  Now grab a 2 leg frame along with a 2nd coupling.  Align the upper holes with the other end of the coupling. Using  (2) 3/8”‐16 x 4.5 hex head cap screw and acorn nut, assemble the 2 leg sec on to the two couplings.  (fig.3)  (Repeat  this step a 2nd  me)  c.  Grab 1 more 2 Leg Support.   Align holes in coupling with holes  in ver cal supports of your 2 leg frame.   Using 3/8”‐ 16 x 3.5 hex head cap screw and acorn nut, assemble the coupling and leg together. (fig. 3)  3 Leg  3 1/2” Bolt  2 Leg  Finished  Assembly  2 Leg  2 Leg  Acorn  Nut  3 1/2” Bolt  4 1/2” Bolt ...
  • Page 5 Cebra Wall Style Frames  Page 5 of 5  Assembly  Step 5: Fastening Table Tops   a.  Place Table As shown for your desired unit.  A ach to  Table to overhang back face  frame using #10 x 1” pan head screws through angle brack‐ of frame 1”.  (Op onal to  ets at top of frames.  have frame flush.)  1/2 Top  Width  Step 6: Fasten Glides to Floor     a.  Rotate glides to point the moun ng hole towards the center of the booth.  b.  With a pencil, mark the hole loca on on the floor using the holes in the glide.  c.  Turn the glide away 90 degrees from its current posi on to expose the mark on the  floor.  d.  Using a hammer drill and a 1/4” masonry bit, drill a 1 1/4” deep hole on the pencil  mark.  e.  Place a plas c anchor in the hole and then rotate glide back so the hole lines up with  the plas c anchor in the floor.  f.  Insert a #10 x 1.0” screw through the hole in the glide and secure into the plas c  anchor.  Note: Frames must be anchored to the floor to maintain stability and prevent ...
