Summary of Contents for Preethi Trendy+

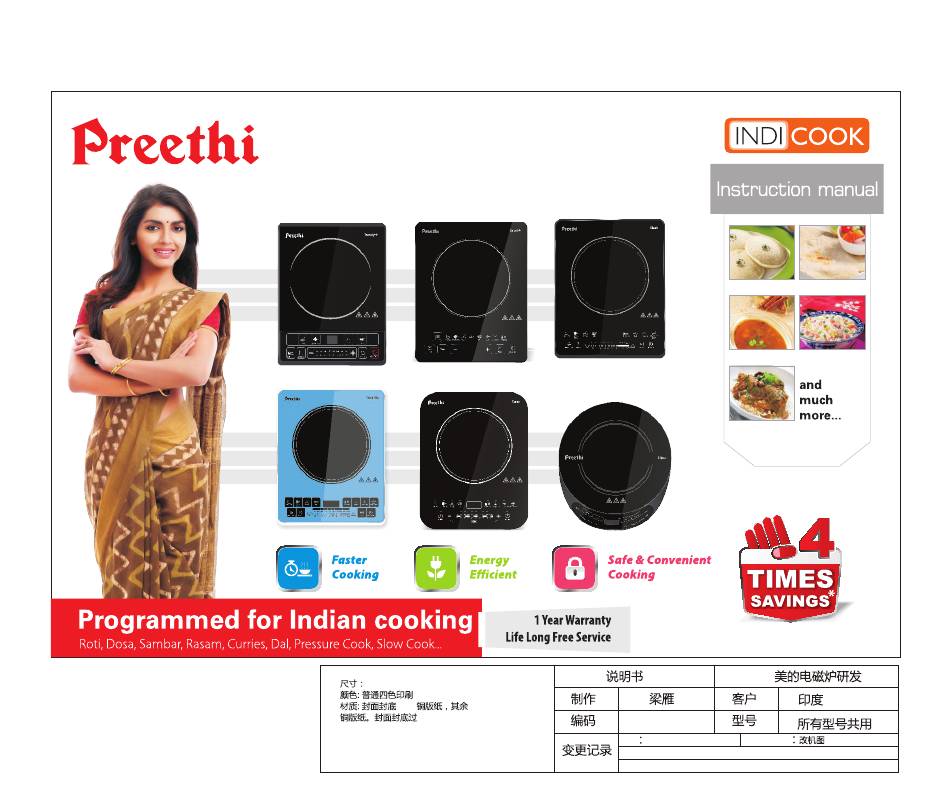

- Page 1 145x210mm PREETHI 200g 105g 532700100323 16161000A00489 A0 20140710 20140725 A2：更改P7 的锅具直径为14.5-22 20160324 A3：更改P9 控制面板丝印 20160728 A4：增加21页内容，调整页码和目录 20210204 A5：整版更新 张奇慧 20210706...
- Page 2 Induction Cooktop Instruction Manual Every product that bears the PREETHI brand name has to pass a series of stringent quality tests. Preethi, relies on its core values of Performance, Quality, Reliability & Safety. Our mission remains single-minded: to improve the family’s quality of life through the superior quality and e ciency of our home appliances.
- Page 3 Dear Customer, Thank you for choosing Preethi’s new Induc�on Cooktop. This inspired new design is another unique product. INDI COOK is programmed to specially suit Indian cooking needs. Anything you cook on a Gas Stove can be done with INDI COOK in a safer and more efficient manner.
-
Page 4: Table Of Contents
Table of contents How Induction Cooking works Contents Page No An Induction Coil produces a magnetic field that causes the electrons in the Vessel to vibrate and Benefits of INDI COOK produce heat. The Vessel heats up the contents in it, while the cooking zone itself does not heat up. - Page 5 Complete Safety with INDI COOK Antimagnetic Plate: The Glass Top heats only the Vessel, while keeping the sides of the cooking zone cool. Auto Detection : The INDI COOK beeps for 1 minute if there is no Vessel or non-magnetic Vessels or Vessels with base diameter less than 12 cm are used. Soft Touch: The easy-to-use soft Touch and Buttons also prevent entry of water and other foreign particles.
- Page 6 Trendy+ Excel+ Sleek Sleek Blu Curve Ellipse...
- Page 7 14.5...
-
Page 8: Quick Start
Before you switch on your INDI COOK Place the INDI COOK in a well ventilated area on a non-metal flat platform. Removing all metal, plastic and canned items near the INDI COOK is recommended. Clean the top zone of the Glass Top with a soft damp cloth to remove dust and spills if any. Make sure the ingredients are ready for cooking. -
Page 9: Operating Instructions
Operating Instruction ( Trendy+ and Excel+ ) Trendy + Idli IC 116 Excel + IC 117... - Page 10 Operating Instruction ( Sleek and Sleek Blu ) Sleek IC 118 Sleek Blu IC 119...
- Page 11 Operating Instruction ( Curve and Ellipse) Curve IC 120 Ellipse IC 121...
- Page 12 In the Trendy+ models the INDICOOK starts on “ Manual ” mode. ( Default ) In others Models Touch the “ON/OFF” Button once, The display shows “----” & “ON/OFF” indicator will glows with a single beep then select a particular mode. If there is no Vessel/unsuitable Vessel, than the INDI COOK will beep for 1 minute and switch OFF.
- Page 13 In this INDI COOK, use the Buttons to increase and decrease temperature. The temperature can be varied from 60 ºC/120W to 240ºC/1600W(Trendy+,Excel+), 240ºC/1900W (Sleek, Sleek Blu), 240ºC/2000W(Curve,Ellipse) in increments determined by the selected Cooking Mode. In this INDI COOK ,...
- Page 14 In this mode the INDI COOK will provide moderate Heat. You can raise or lower the temperature as required This mode is programmed to maintain the ideal temperature required for cooking Roti/Dosa etc., and will ensure that the food does not burn. In this mode the INDI COOK will provide moderate heat for 5 mins to allow your to prepare seasoning ( Thadka ) Thereafter it will switch to high heat to cook vegetables,...
- Page 15 Use this mode to boil milk. water etc., Quiccly, Ensure that the Water, Millk, Congee etc., volume being boiled is not less than 30% pg the Vessel and also ensure the cookware used Potato Fry , Banana Fry, cutlet fry use this mode to Half fry the dish with normal temperature.
- Page 16 upto 3 hrs...
- Page 17 upto 3 hrs 30 mins...
- Page 18 Sleek & Sleek Blu ºc upto 140 Deep Fry Pressure Cook 30 mins Manual upto 3 hrs upto 1 min Boil 30 mins...
- Page 19 Curve ºc upto 140 upto 200 ºc ºc upto 220 Deep Fry ºc upto 240 upto1min upto 45 mins Pressure Cook 30 mins ºc upto 200 Manual ºc upto 240 upto1min upto 3 hrs Boil 30 mins...
- Page 20 Ellipse upto 1000W upto 3 hrs upto 1600W upto 1800W Deep Fry upto1min upto 45 mins Pressure Cook 30 mins upto 1600W Manual...
-
Page 21: Safety Instructions
Important Safety Instructions 1. This appliance is for household use only. Do not use outdoors. 2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 22 Important Safety Instructions Don’t s Do’s Do not place the INDI COOK too close to the wall and other large Ensure that the power supply is 230 V 50 Hz. objects and on metal platforms & Do not Plug in 6 Amps Plug Socket. Ensure that the Power Cord is plugged firmly into the power Do not touch the cooking zone while cooking or immediately after socket and use16 Amps Plug Socket only.
- Page 23 Don’t s Do’s after cooking will cause the INDI COOK to overheat and Avoid keeping metallic objects such as knives, forks, malfunction. spoons and lid should not be placed on the hotplate since they can get hot. This appliances is not intended for use by persons (Including Children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
Page 24: Troubleshooting
Troubleshooting Symptom Reason Action No beep after power is switched on. The Power Cord is not Plug the Power Cord into the No display on the properly plugged. power socket properly. Display Panel. Ensure the Vessel is made of Vessel material or size is Steel or Iron or Aluminium with not suitable. -
Page 25: Technical Specifications
Troubleshooting Symptom Reason Action Displays failure code is E1, Internal failure. Contact Customer Care. E2, E4, E5, Eb If the Cooktop is not heating or the Buttons are non-responsive then contact our Customer Care Centre immediately for support. Technical Specifications Trendy+ Excel+ Sleek... - Page 26 Induction Cooktop IC 116/117/118/119/120/121 Induction Cooktop IC 116/117/118/119/120/121 Induction Cooktop IC 116/117/118/119/120/121...
- Page 27 Philips Domestic AppliancesIndia Ltd.
- Page 28 Preethi brand...
- Page 29 Preethi brand The Manager - Customer care (Preethi brand)
- Page 30 The Manager - Customer care (Preethi brand)
