Summary of Contents for Knight Ergoplan Cupboard 900H

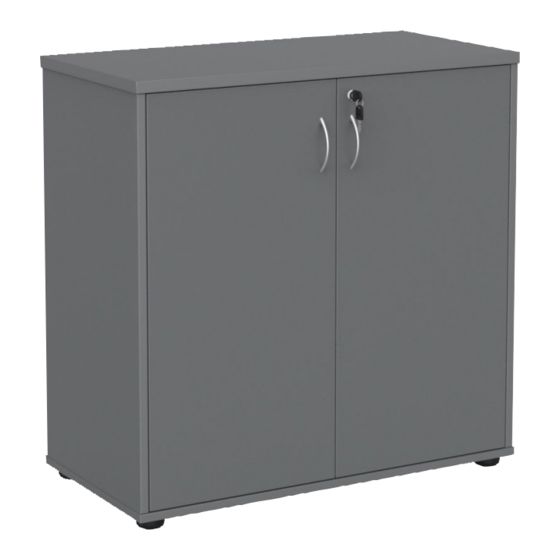

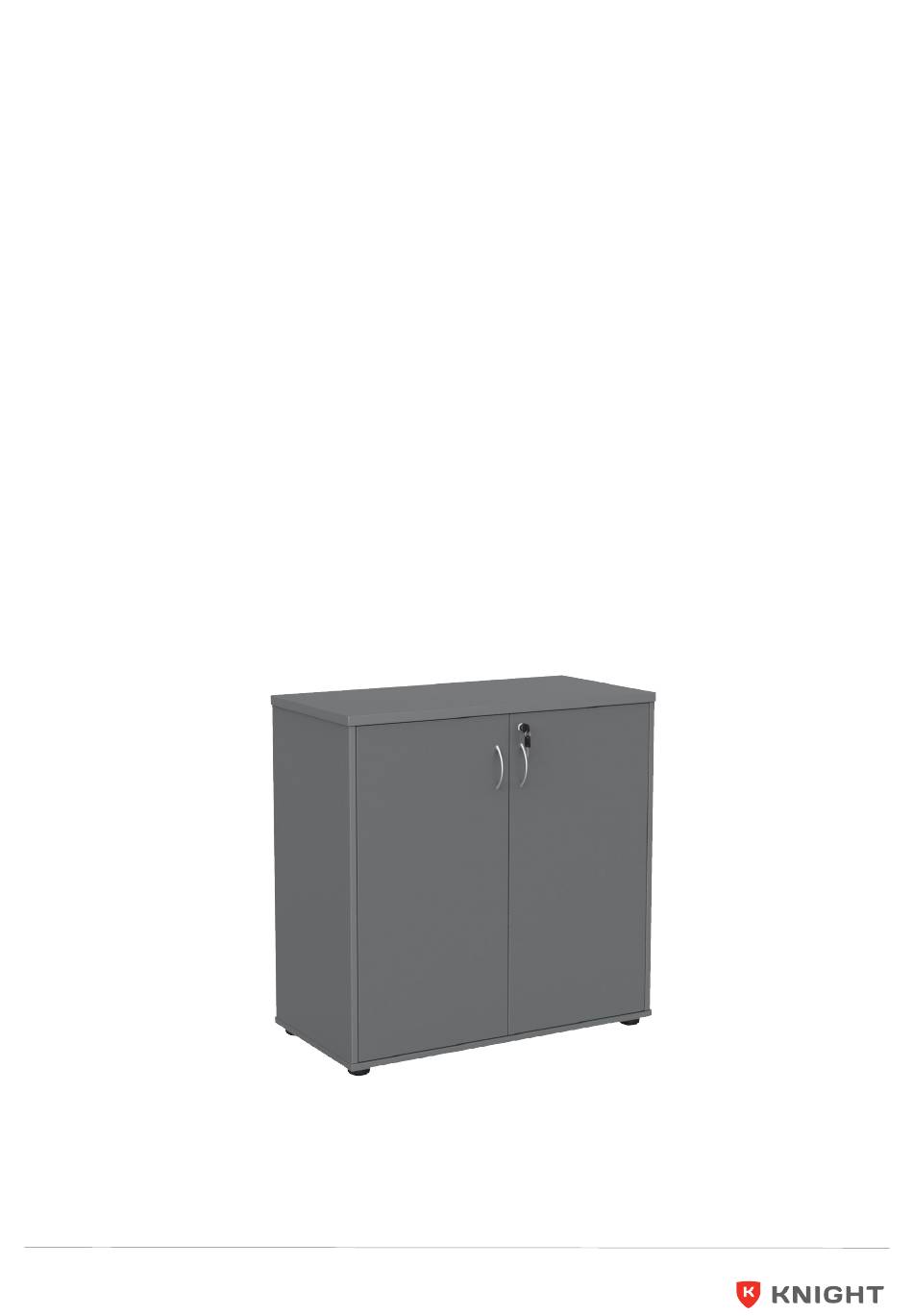

- Page 1 Ergoplan Cupboard 900H Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
-
Page 2: Setup And Installation
Ergoplan Cupboard 900H Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance. - Page 3 Ergoplan Cupboard 900H Assembly Instructions Parts Item Description Quantity Top Panel Left Side Panel Incorrect Correct Right Side Panel The turning direction of attaching Back Panel Bottom Panel Movable Shelf Door Panel Door Panel knightgroup.co.nz...
- Page 4 Ergoplan Cupboard 900H Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Handle Shelf Pin 4x16 Screw 4x22 Fix Bolt Hinge Body Lock Lock Catch Lock Catch Foot 3.5x35 Screw c1 6x35 Cam Bolt d1 8x30 Dowel Pin...
- Page 5 Ergoplan Cupboard 900H Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, bottom panel G, left side panel X, right side panel Z, door panel V1 and V2. Insert cams bolts (c1) and dowel pins (d1) into panels A, G, X and Z.
- Page 6 Ergoplan Cupboard 900H Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Top panel A, bottom panel G, back panel D, side panel X and Z assembly. Insert cam bolts (c1) on panel Z and X into cams on panel D and tighten in a clockwise direction.
- Page 7 Ergoplan Cupboard 900H Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Movable shelf E assembly. lnsert shelf pins (p1) into panels X and Z at desired shelf height. Place movable shelf E on top of the shelf pins (p1).
- Page 8 Ergoplan Cupboard 900H Page 4 Page 4 Assembly Instructions Assembly Instructions Step 4 Door panel V1 and door panel V2 assembly. Fix hinge bodies (g2) on door V1 to the inner of panel X with screws (s1). Fix hinge bodies (g2) on door V2 to the inner of panel Z with screws (s1).
- Page 9 Ergoplan Cupboard 900H Page 5 Page 5 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
