Summary of Contents for Stahl SolCineX Plug

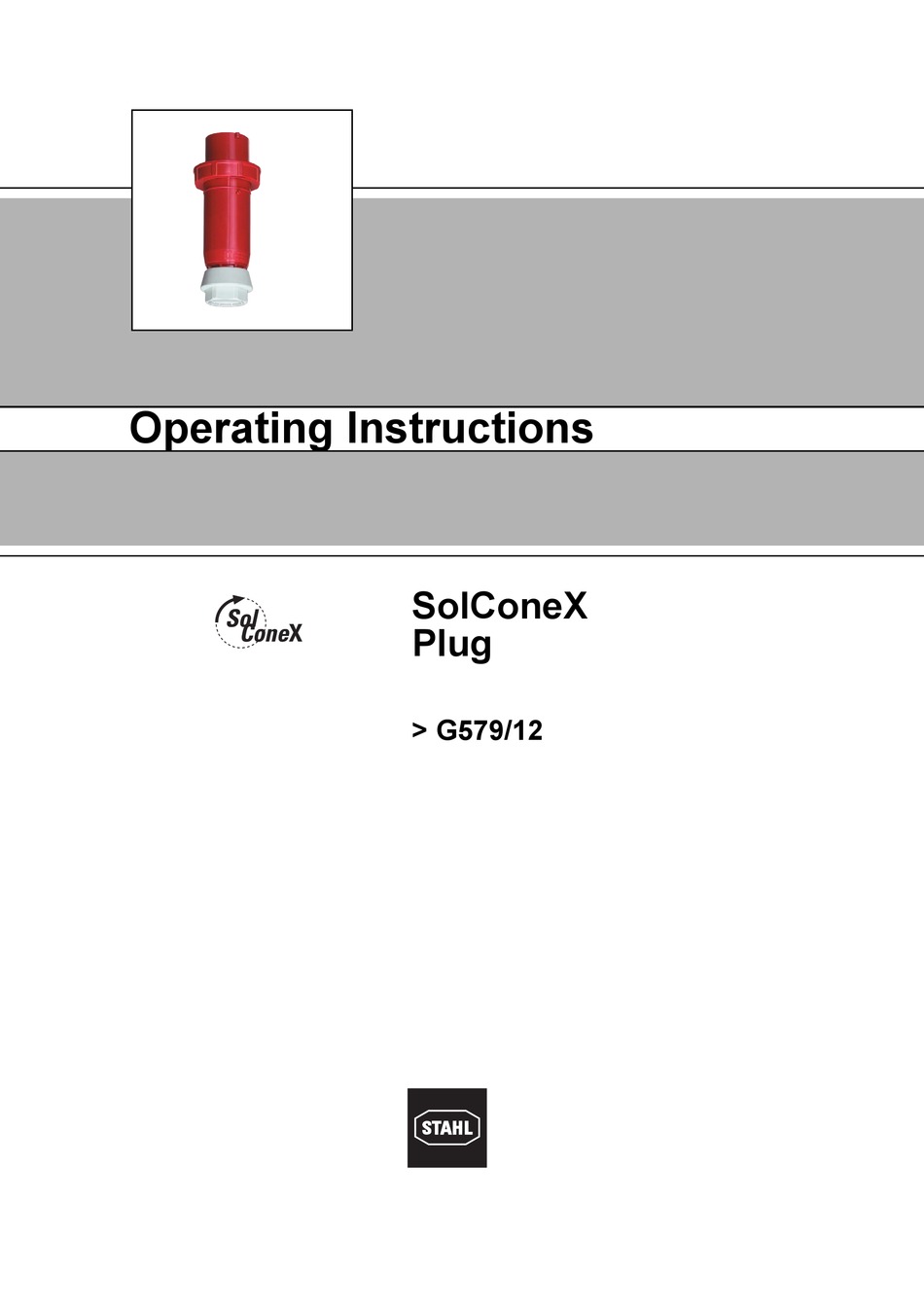

- Page 1 Operating Instructions SolConeX Plug > G579/12...
-
Page 2: Table Of Contents
Maintenance, Overhaul and Repair ...............8 Cleaning ........................8 Accessories and Spare Parts ................8 Disposal .........................8 EC Declaration Of Conformity ................9 General Information 2.1 Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com... -
Page 3: General Safety Instructions
General Safety Instructions General Safety Instructions The devices must be used only for the intended purpose. Incorrect or impermissible use or non-compliance with these instructions invalidates our warranty provision. No changes to the device are permitted. Use the device only if it is undamaged and clean. WARNING Installation, maintenance, overhaul and repair may only be carried out by appropriately authorised and trained personnel. -
Page 4: Technical Data
Technical Data Technical Data Version G579/12 plug Rated operational voltage max. 690 V Rated operational current 63 A )100 Hz, 50 A Rated insulation voltage max. 750 V Connection cross-section max. 16 mm Cable entries 24 ... 36 mm cable diameter Tightening torque max. -
Page 5: Arrangement Of Contact Pins And Terminal Marking
Arrangement of Contact Pins and Terminal Marking Arrangement of Contact Pins and Terminal Marking View of the contact pins from the front. The illustrations show the 6 h position. 09191E00 09196E00 3 P + PE 3P + N + PE Earth contact ... -
Page 6: Assembling And Dismantling
When unplugged, the plug should be suspended, with the contact pins pointing downward. To protect the contact pins against pollution, a suitable protective cap should be used (For R. STAHL order no. see "Spare parts and accessories"). 11 Installation Electrical connection ... -
Page 7: Putting Into Service
Putting into Service Strip the insulation from the cable (see figure). [mm] [mm] 09290T00 On the connection side, the contact pin carrier is marked with "Abisolation" (insulation stripped) next to the protective conductor connection symbol. The indentation below indicates the correct stripping length. Connect the cable to the plug insert. -
Page 8: Maintenance, Overhaul And Repair
It is not allowed to use lubricating greases based on mineral oils! 14 Cleaning The device may only be cleaned with a damp cloth. 15 Accessories and Spare Parts WARNING Use only original R. STAHL accessories and spare parts. Designation Illustration Description Art. no. Weight... -
Page 9: Ec Declaration Of Conformity
EC Declaration Of Conformity 17 EC Declaration Of Conformity 212485 / 7579615300 SolConeX Plug 2011-09-13·BA00·III·en·00 G579/12... - Page 12 212485 / 7579615300 2011-09-13·BA00·III·en·00...
