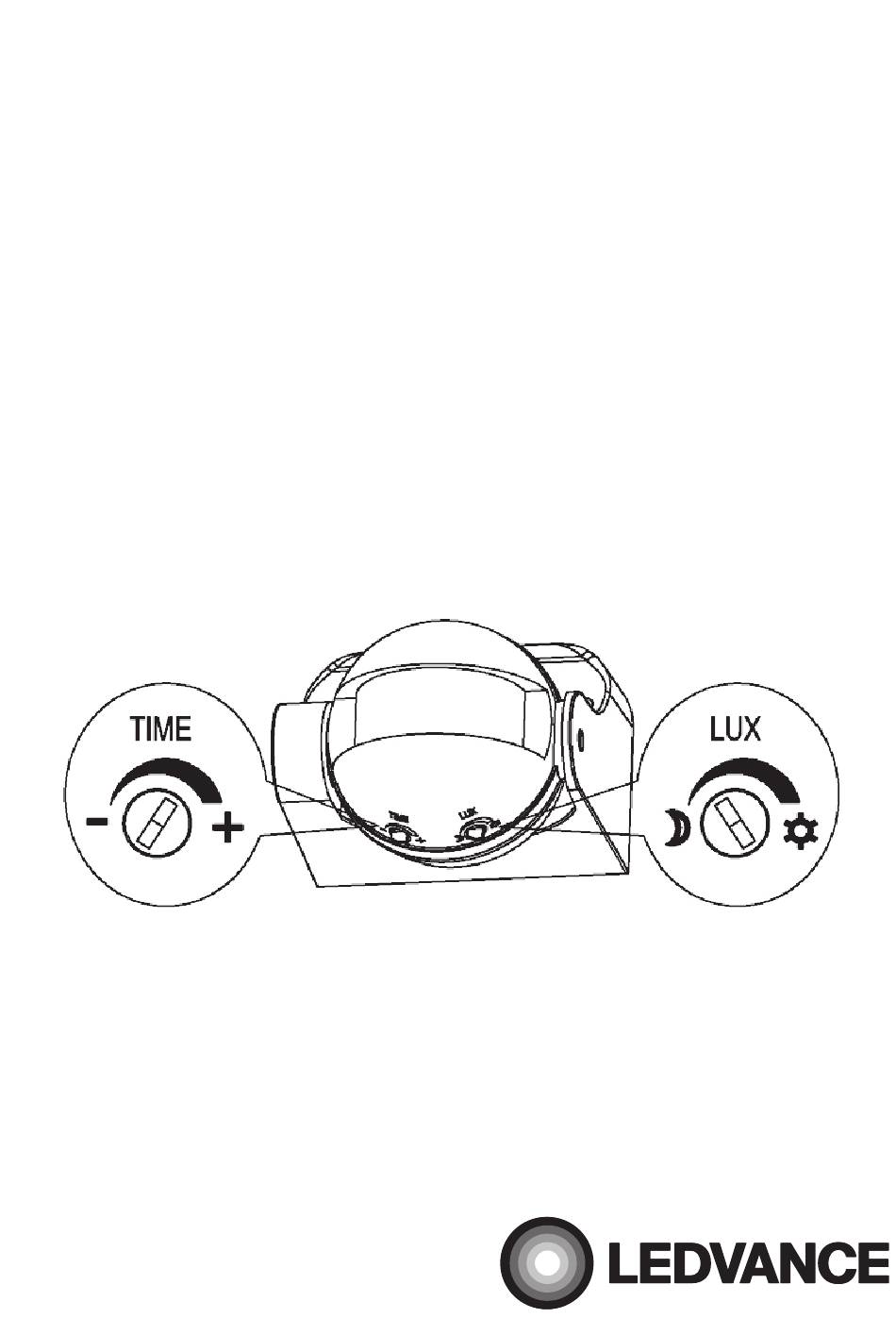

  • Page 1 LEDVANCE LMS Sensor Value Infrared MS-SV-INF-WS-AD-180-230V-IP44-A...
  • Page 2 LEDVANCE LMS Sensor Value Infrared Product Features: a. Infrared motion sensor with integrated photocell sensing function can help to save power consumption via turn on and turn off the power according to its setting; It detects human motion within its detection range.
  • Page 3 LEDVANCE LMS Sensor Value Infrared How to Install: a. Switch off the power. b. Loosen the screw in the back and unload the bottom (refer to figure 1). c. Find the wire hole in the bottom and pass the power wire through hole. Connect the power wire into connection- wire column according to the connection-wire diagram.
  • Page 4 Please do not put the sensor near the area which is having tremendous changes of temperature such as air conditioner or central heater. e. Please don’t open the case after installation.  LEDVANCE Pty Ltd ABN 34 050 103 181 Suite 2.1A...
