- Page 1 USER'S MANUAL HU10039 Bedside Table THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

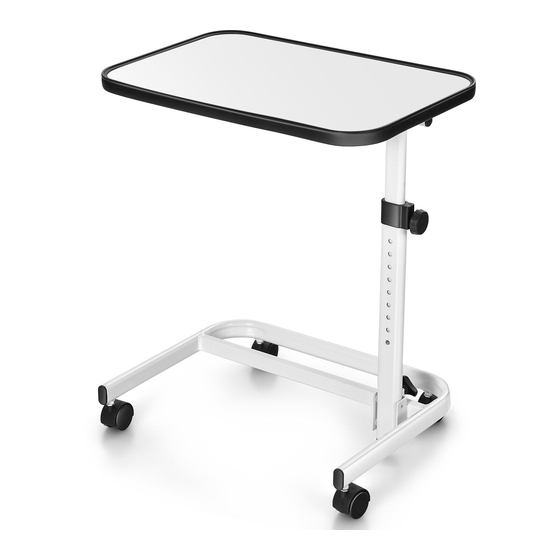

- Page 2 First of all, thank you very much for choosing our products. Please read the instructions carefully before assembling. Please refer to the certificate or packaging for the production date. Product Introduction: The frame tube of this bedside table trolley is made of steel pipe, the tabletop board is made of wood, and the height can be adjusted by the upper and lower holes.
- Page 3 Hardware： B1. M8 Torx knob B2. M6 Triangle knob B3. 10# Open-end wrench B4. Hexagon socket B5. φ6.2 Washer B6. M6 Self-locking nut head screw (M6*65) B7. 4# Allen key B8. φ10.2 Washer B9. Steel cover B11. Compression B12. 2''plastic castor B10.
- Page 4 Figure 3 Figure 4 Step 3: As shown in Figure 3, align the outer oval tube assembly with the corresponding holes of the chassis assembly, take out 1 hex socket head screw (M6*65) and 2 φ6.2 washers to connect them. Use a 4 # Allen key and a 10# open-end wrench to lock the M6 self-locking nut.
- Page 5 Figure 7 Figure 8 Figure 9 Step 7: As shown in Figure 7, the inner oval tube assembly is aligned with the outer oval tube assembly tube, and the marble is pressed to adjust it to a suitable height. Step 8: As shown in Figure 8 and Figure 9, the M8 Torx knob is aligned with the nut on the outer oval tube assembly to lock it.
- Page 6 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
