HomePro
RF Home Automation
Supplied with matching
decorative switch plate
Note: This module must be "Included in the
Network" only where it will be permanently
installed. The proper operation of this node in the
mesh network is dependent on it knowing its
location with respect to other nodes. You cannot
"test bench" configure this module.

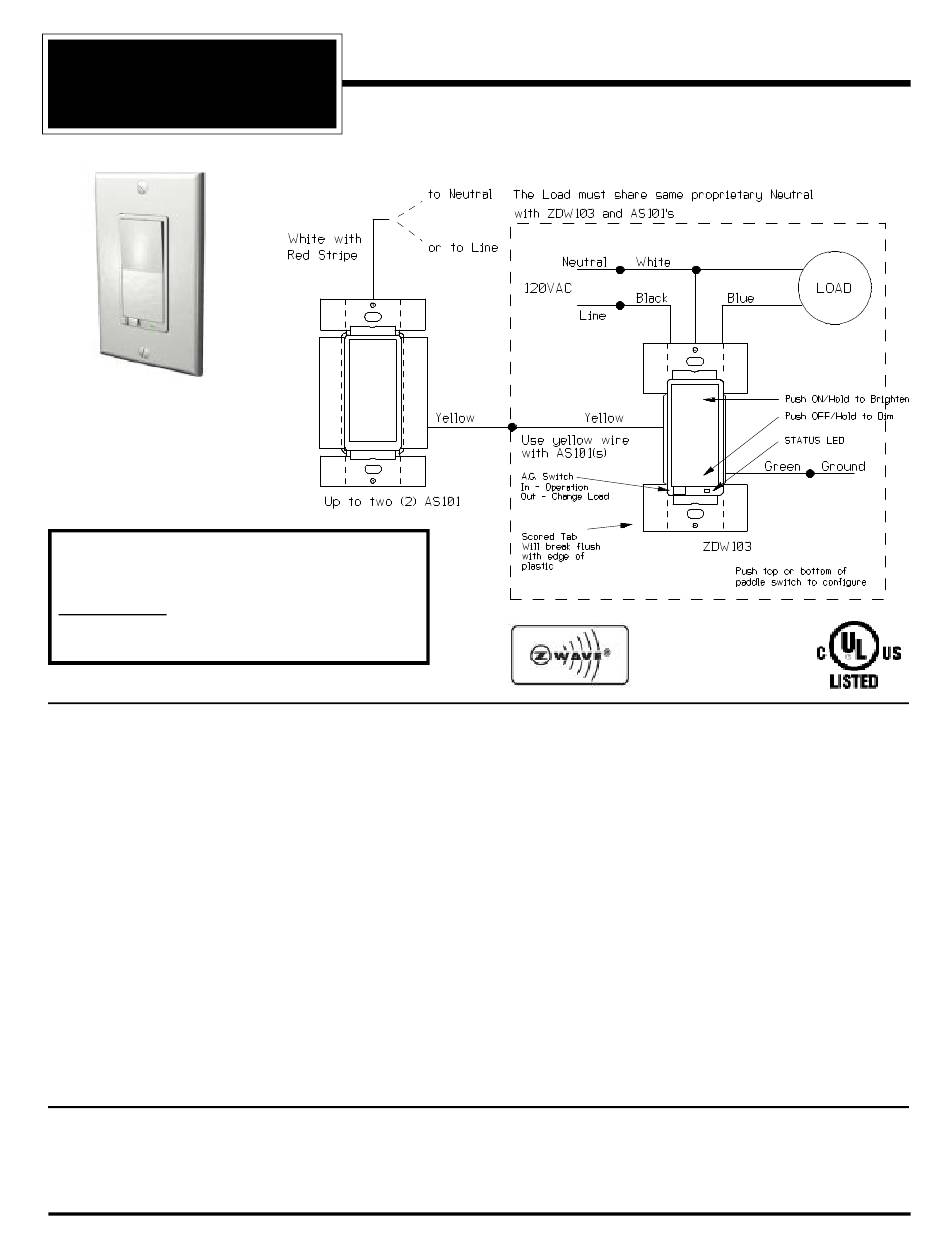

ZDW103 WALL MOUNTED DIMMER
The ZDW103 Wall Mounted Dimmer is a component of the HomePro lighting control system. Wire the Wall Mounted
Dimmer in place of the standard wall switch according to the diagram above and program from the Wireless Controller
to operate loads. Inclusion of the ZDW103 Wall Mounted Dimmer on the ZTH100 Wireless Controller menu allows
remote ON/OFF control and dimming of lights connected.
This Wall Mounted Dimmer is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types
can be Included in the network and will also act as repeaters to increase the range of the network.
This product supports 40Kbps data transmission. This product can also be used for networking support in
systems that stream metadata. An example might include transmission of information from audio devices such as
song title, artist, and album information to various displays around the home.
DANGER! SHOCK HAZARD. Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric code and local regulations in the United States, or the Canadian
Electrical Code and local regulations in Canada. It is recommended that a qualified electrician perform this installation.
There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where purchased.
CAUTION: To reduce the risk of overheating and possible damage to other equipment, do not install
to control a receptacle, a motor operated appliance, a fluorescent lighting fixture, or a transformer-supplied
appliance, but only permanently installed incandescent lamp fixtures. Make sure the lamp(s) to be controlled
directly from the dimmer receiver total no more than 500 watts. Retain instructions for future use.
INSTALLATION
STEP 1. With power off, wire this ZDW103 and AS101's according to the diagram show. Caution! Do not wire unit
"live" (with power on the circuit) and do not allow the yellow wire to contact line voltage, neutral or ground
or you will damage the device. AS101's are required to be wired to the same line (or neutral) which is also
wired to the master unit as well as the load being controlled, and not wired to any other neutral. If multiple
HomePro
by ADVANCED CONTROL TECHNOLOGIES, INC.
Z-Wave Radio Frequency (RF) Controlled, 500W, 120 VAC,
0760-01
1
ZDW103
Wall Mounted 3-Way Dimmer,
Series 200, Release 2.2
Z-Wave ZDW103 Series 200, Release 2.2 Instructions
P/D 020708
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Advanced Control Technologies HomePro ZDW103
- Page 1 AS101’s are required to be wired to the same line (or neutral) which is also wired to the master unit as well as the load being controlled, and not wired to any other neutral. If multiple HomePro 0760-01 Z-Wave ZDW103 Series 200, Release 2.2 Instructions P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
- Page 2 When OFF, pressing and holding the bottom of the switch will cause the load will go to the minimum dim level. Note: Upon restoration of power after a power loss, the ZDW103 returns to previous known state. Z-Wave ZDW103 Series 200, Release 2.2 Instructions 0760-01 HomePro P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
- Page 3 The ZDW103 can be configured to operate differently than how it works when you first install it. Using the Configuration command you can configure the following: HomePro 0760-01 Z-Wave ZDW103 Series 200, Release 2.2 Instructions P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
- Page 4 10 millisecond and 252.45 seconds (over 4.25 minutes). • Parameter 7-12 • Length: 1 Byte • Valid Values: (See next) Z-Wave ZDW103 Series 200, Release 2.2 Instructions 0760-01 HomePro P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
- Page 5 The “always listening” advantage of the Static Controller is that other nodes can transmit information frames to it whenever needed. HomePro 0760-01 Z-Wave ZDW103 Series 200, Release 2.2 Instructions P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
- Page 6 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Z-Wave ZDW103 Series 200, Release 2.2 Instructions 0760-01 HomePro P/D 020708 by ADVANCED CONTROL TECHNOLOGIES, INC.
