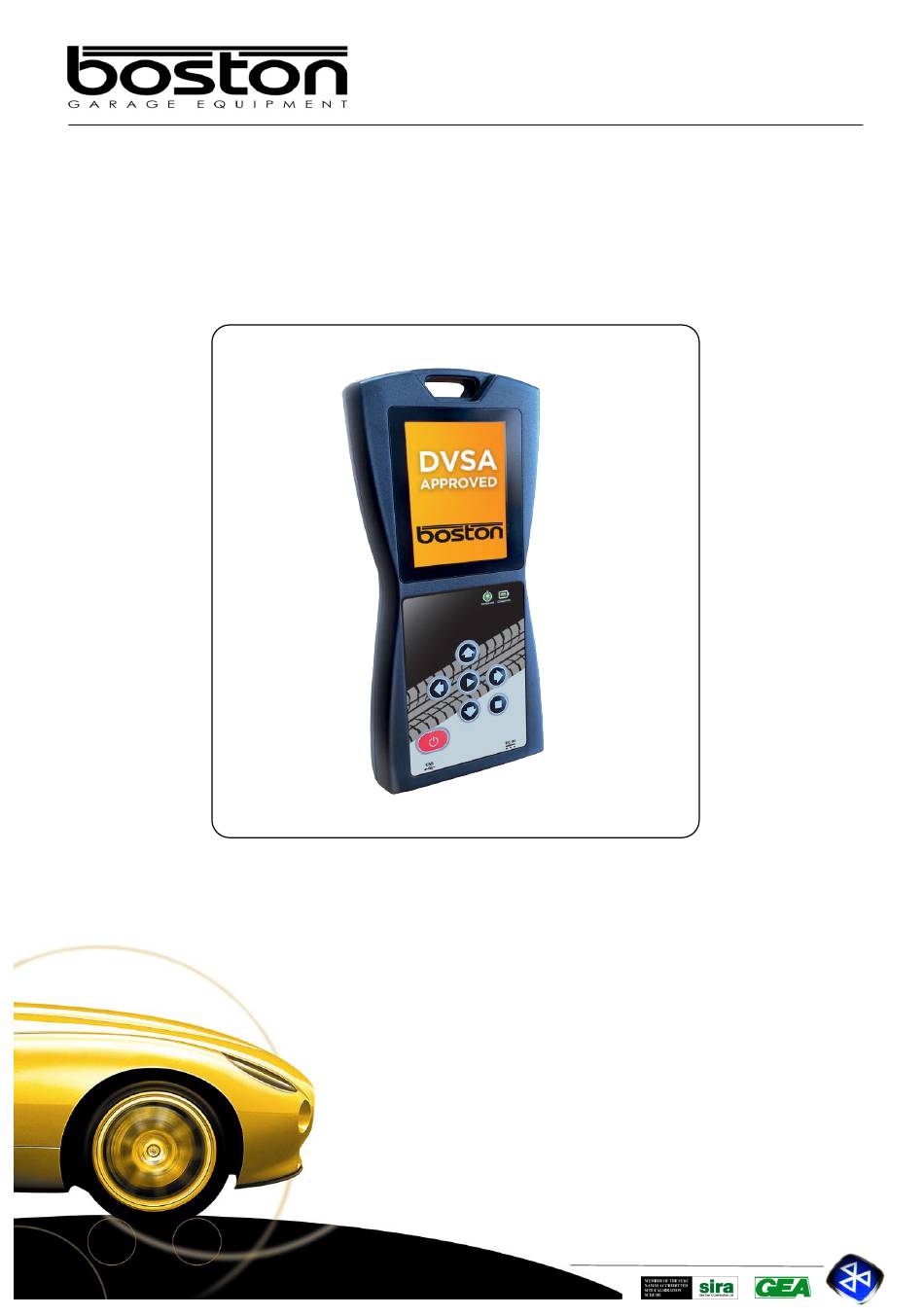

- Page 1 DC-7500 USER MA NUA L DC-7500 Wireless Decelerometer USER MANUAL DOC: BOS0608 1 / 17 ENGLISH Boston Garage Equipment, 199 New Road, Rainham, Essex, RM13 8SJ, United Kingdom T: +44 (0)1708 525585 F: +44 (0)1708 525408 info@bostonequipment.com www.bostonequipment.com Garage Equipment Association...
- Page 2 All information contained in this document and any drawings, pictures, images and technical descriptions which have been made available by Boston, remain the property of the company and may not, without written permission from the company be used (except for the operation of equipment), duplicated in any way or made available to third parties.
-
Page 3: Table Of Contents
DC-7500 USER MA NUA L Contents Chapter 1 Introduction Audience Scope Organisation Layout Conventions Related Documents Chapter 2 Safety General Safety Instructions Maintenance Safety Safety Features Misuse Chapter 3 Product Description DC-7500 Overview Chapter 4 Keypad Layout Keypad Layout Button Operation... -
Page 4: Chapter 1 Introduction
Layout conventions Related documents Audience This manual describes the functions and operations of the Boston DC-7500 Decelerometer and is intended for the end user. Boston Garage Equipment requires that the user: Has sufficient technical knowledge and experience to install the equipment ... -
Page 5: Organisation
DC-7500 USER MA NUA L Organisation This manual is organised in sections: Safety – Describes safety features of the system and safety precautions to follow when operating the system. Read this section before operation and maintenance. Product Description – Contains a functional description of the system. -
Page 6: Chapter 2 Safety
In order to comply with your responsibilities under the Health and Safety at Work Act 1974, it is essential that this equipment and any optional accessories are sited, installed, operated, and maintained by an Boston Garage Equipment or authorised / approved distributor. All persons installing, operating or maintaining the equipment and any optional accessories must be familiar with the layout of the equipment, the safety precautions and the emergency shutdown procedures. -
Page 7: Maintenance Safety
The DC-7500 is protected against reverse polarity voltage supply. The DC-7500 is provided with a protective storage case to enable safe storage when not in use. Misuse The DC-7500 is designed for use as a mobile Brake Tester for statutory vehicle testing stations. -
Page 8: Chapter 3 Product Description
In This Chapter DC-7500 Decelerometer Overview DC-7500 Overview The DC-7500 is a DVSA Connected Equipment approved MOT Decelerometer with wireless Bluetooth connectivity. It provides accurate brake test results for motorcycles, cars, trucks, and all other types of braked vehicles. When used as Connected Equipment for MOT testing, it can receive vehicle specific information (workorders) from the MOT Testing Service (MTS) and return test results back to the MTS against the given vehicle registration number. -
Page 9: Chapter 4 Keypad Layout
Chapter 4 In This Chapter Keypad Layout Button Operation Keypad Layout The DC-7500 has a membrane keypad that allows the operator to navigate the on-screen menus. See below: ‘CHARGING’ LED ‘POWER ON’ Key The LED illuminates when The LED illuminates... -
Page 10: Button Operation
DC-7500 USER MA NUA L Button Operation The following table shows the button presses and their default associated operation. BUTTON ASSOCIATED FUNCTION ARROW UP ARROW UP ARROW DOWN ARROW DOWN ARROW LEFT ARROW LEFT ARROW RIGHT ARROW RIGHT CENTRE ‘PLAY’ BUTTON... -
Page 11: Chapter 5 Operation
If the device fails to start ensure there is sufficient charge. Charge for a minimum of 30 minutes Manual Testing The DC-7500 can be used manually to test the brake performance of multiple axles. To carry out the test follow the procedure below: Using the windscreen suction cup, attach the device safely to the windscreen of the vehicle. -
Page 12: Official Testing
DC-7500 USER MA NUA L Official Testing When used for official testing, the DC-7500 receives vehicle information automatically (and wirelessly) from the MTS. The data received is known as a ‘workorder’. To carry out the test using the workorder from the MTS, follow the procedure below: •... -
Page 13: Chapter 6 Calibration
The calibration procedure should be carried out every 24 months to ensure accuracy and correct operation of device. Calibration can only be carried out by authorised personnel. Please contact the Boston Service Department or your local agent to arrange for this service. -
Page 14: Chapter 7 Troubleshooting And Maintenance
Re-pair the Bluetooth to the PC (see installation manual) If problems persist then contact the Boston service department for further assistance. Maintenance The DC-7500 requires no ongoing maintenance but it is recommended to be kept clean and stored in the protective case when not in use. •... -
Page 15: Chapter 8 Warranty / Guarantee
The Purchaser agrees and confirms that no statement or representation has been made by Boston relating to the goods to be supplied under the contract, or, if any has been made, has not relied on it. -
Page 16: Chapter 9 Product Specifications
DC-7500 USER MA NUA L Product Specifications Chapter 9 In This Chapter DC-7500 Decelerometer Specifications DC-7500 Decelerometer Specifications • Product Code: DC-7500 Power Supply: Rechargeable Internal Lion Battery • Operation Time: 8hrs • • Chassis: ABS Plastic • Clock: Real Time Clock (Internal) •... - Page 17 DC-7500 USER MA NUA L Boston Garage Equipment, 199 New Road, Rainham, Essex, RM13 8SJ, United Kingdom T: +44 (0)1708 525585 F: +44 (0)1708 525408 info@bostonequipment.com www.bostonequipment.com 17 / 17 DOC: BOS0608 ENGLISH...
