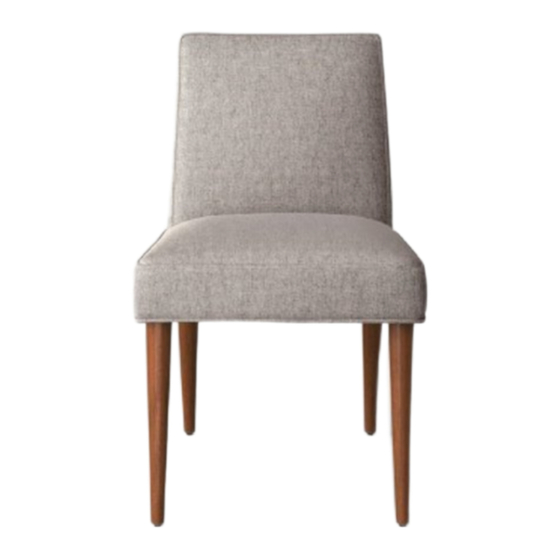

- Page 1 # UPVISDNC01 (rilla aluminum) dpci # 249-02-3320 tcin # 51958769 style # UPVISDNC02 (rilla cocoa) dpci # 249-02-3321 tcin # 51958770 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list assembly QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 1 (H2) x 4 (H3) x 4 (H4) x 9 (H5) x 9 (H6) x 1 M8 x 45mm bolt M8 x 55mm bolt M8 x 85mm bolt washer lock washer allen wrench...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY back seat front leg... -
Page 6: Step 1: Remove Hardware
step 1: remove hardware zippered pocket 1.1. Remove hardware from zippered pocket. - Page 7 step 2: attach seat to back (H1) x 1 (H3) x 4 M8 x 45mm M8 x 85mm bolt bolt (H1) (H4) x 5 (H5) x 5 washer lock washer 2.1. Align bolts with pre-drilled holes. 2.2. Hand tighten bolts.
- Page 8 step 3: attach front legs (H2) x 4 (H4) x 4 (H5) x 4 M8 x 55mm washer lock washer bolt 3.1. Align bolts with pre-drilled holes. 3.2. Hand tighten bolts.
- Page 9 step 4: leg adjustments (H6) x 1 allen wrench 4.1. Check to make sure all legs sit evenly on the floor. If not, loosen bolts and adjust. 4.2. Once adjusted, use provided allen wrench to finish tightening bolts, being careful to not over tighten...
- Page 10 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
