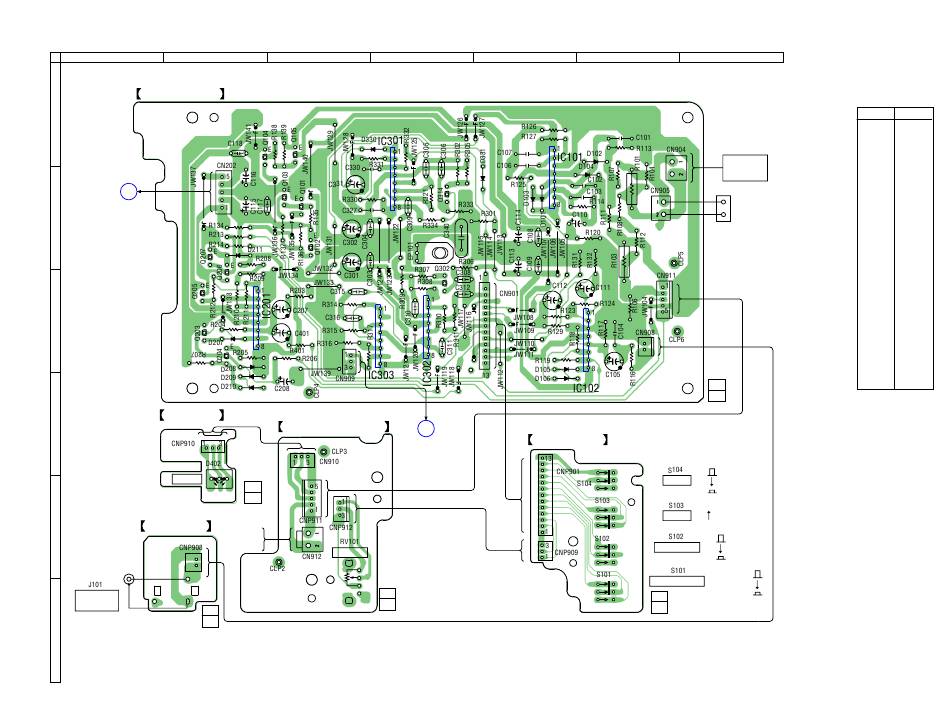

4-3. PRINTED WIRING BOARDS – CONTROL SECTION –
1 2
CONTROL BOARD
A
A
POWER
B BOARD
(Page 16)
C
LED BOARD
D
POWER
1-689-582-
JACK BOARD
E
SUB WOOFER
IN
11
1-689-581-
(11)
F
See page 9 for Circuit Boards Location.
z
3 4
VOL CONTROL BOARD B
POWER
BOARD
(Page 16)
11
(11)
R-CH
IN
SW LEVEL
11
(11)
1-689-584-
5 6
1-689-579-
SELECT BOARD
1-689-583-
11 11
7
L-CH
ATTENUATOR
L-CH
TERMINAL
11
(11)
OFF
BOOST
ON
REVERSE
PHASE
NORMAL
OFF
POWER SAVE
ON
SW OUT
INPUT SELECTOR
SPEAKER OUT
11
(11)
SA-VF700ED
Semiconductor
z
Location
Ref. No. Location
D101 B-5
D102 A-6
D103 B-5
D104 B-6
D105 C-5
D106 D-5
D207 C-2
D208 C-2
D209 D-2
D210 D-2
D211 B-2
D330 A-4
D331 B-5
D402 E-2
IC101 A-5
IC102 C-6
IC201 C-2
IC301 A-4
IC302 C-4
IC303 C-4
Q101 B-3
Q102 B-3
Q103 B-3
Q104 A-2
Q105 A-3
Q203 C-2
Q204 C-2
Q205 C-2
Q206 B-2
Q207 B-2
Q302 C-4
Q314 B-4
