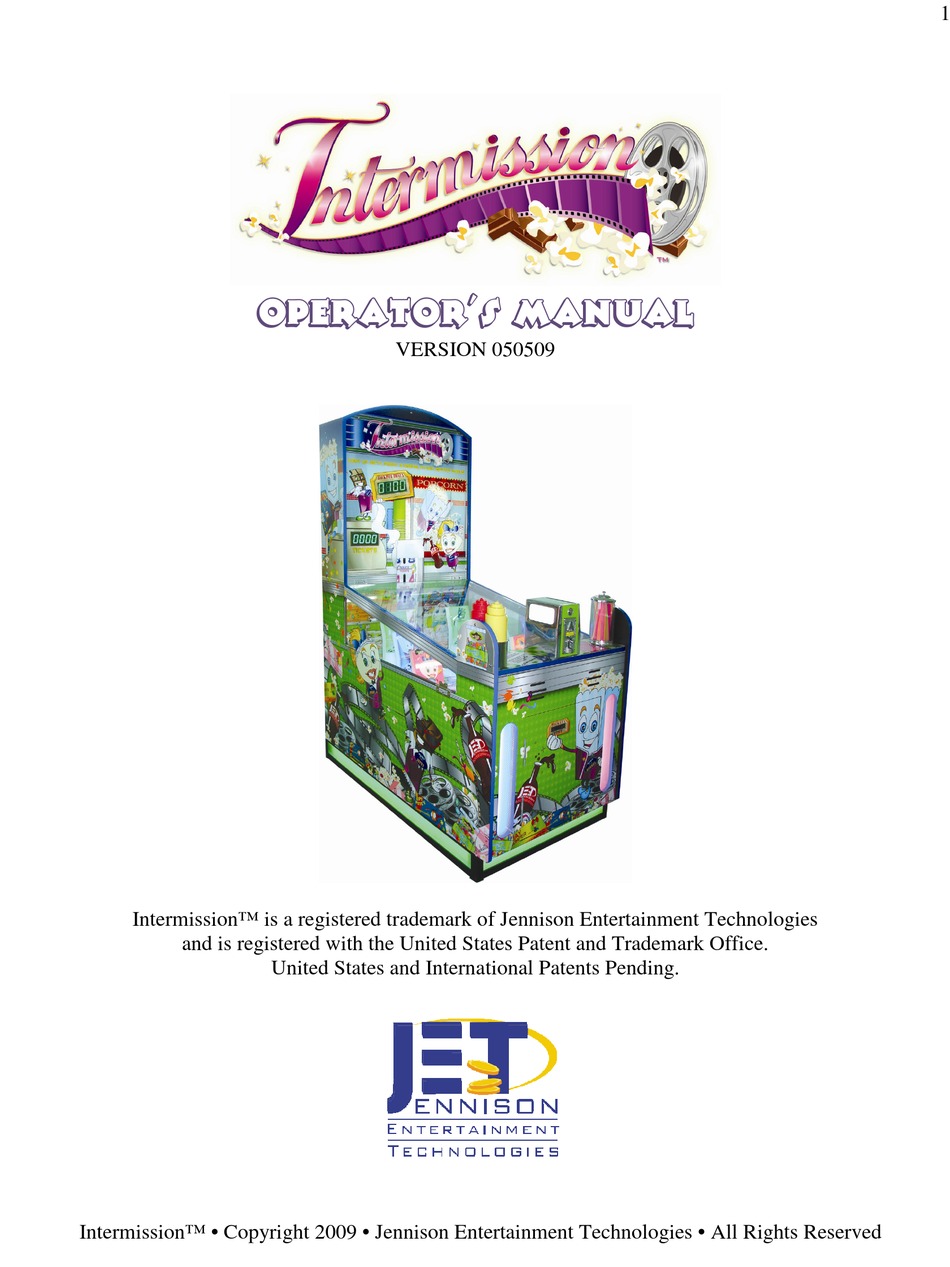

OPERATOR'S MANUAL

VERSION 050509

Intermission™ is a registered trademark of Jennison Entertainment Technologies

and is registered with the United States Patent and Trademark Office.

United States and International Patents Pending.

Table of Contents

Need help?

Do you have a question about the Intermission and is the answer not in the manual?

Questions and answers

Summary of Contents for Jennison Entertainment Technologies Intermission

Page 1 VERSION 050509 Intermission™ is a registered trademark of Jennison Entertainment Technologies and is registered with the United States Patent and Trademark Office. United States and International Patents Pending. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 2: Table Of Contents
Normal Program Settings Chart - Settings Definitions…………….…………………………………….22 Grand Jackpot Combo Bonus – Dip Switch Settings……………………………………………………24 Linking Units Together – Individual Unit Dip Switch Settings…………………………………………25 Returning to Factory Defaults……………………………………………………………………………26 Test Mode……………………………………………………………………………………………..…27 Input Values……………………………………………………………………………………...28 Output Values……………………………………………………………………………………29 Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 3 Quick Troubleshooting Guide…………………………………………………………………………...32 Suggested Preventive Maintenance Schedule………………………………………………………….. 37 Wiring Schematics Wiring Diagram………………………………………………………………………………………….38 Wiring Diagram (Header)……………………………………………………………………………….39 Technician Notes Technical notes…………………………………………………………………………………………..40 Warranty Information Warranty Information…………………………………………………………………………………... 41 Parts List Parts List………………………………………………………………………………………………TBD Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 4 CAUTION: Caution messages will be indicated in YELLOW boxes. These messages are to indicate that extreme caution should be exercised while following the appropriate action. NOTICE: Notices are given in GREEN boxes. These messages are provided for the operator’s convenience. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 5: Warnings, Cautions, & Notices
(or) damage to machine. Follow all instructions when removing the glass and always have two people present to lift. NEVER lift the glass by yourself. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 6: Fcc Compliance
Intermission complies with this requirement and the following statement is posted on all units. This equipment has been tested and found to comply with the limits for a Class “A”...
Page 7: Rohs Compliance
As of January 2009, Jennison Entertainment Technologies has tested all components used in the manufacturing of Intermission™. All components have been found to be within the standards set forth for RoHS compliance by the European Union. Test reports are available and will be provided upon request.
Page 8: Electrical Requirements
Please contact your distributor for the appropriate parts or for further instructions. Dimensions: Dimensions Length Width Height Weight Inches Inches Inches Pounds 1230 1920 Shipping Dimensions 1220 1829 Actual Cabinet Dimensions Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 9: Inspection
This includes the fluorescent light assembly. Check to make sure that all bulbs are secure and did not come out of their assembly. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 10: Application Of Playfield Character Ticket Value Stickers
Installing (or) Applying the Bonus Playfield Character Ticket Values Jennison Entertainment Technologies provides 1 set of stickers for the bonus playfield in all Intermission units. These stickers are designed so that the operator can easily change or modify the ticket values on all pop-up characters on the playfield.
Page 11: Coin Comparator Setup
Coin Comparator Setup Jennison Entertainment Technologies (J.E.T.) has elected to install a coin comparator into Intermission in order to facilitate ease of installation for different operators in different operations. Should you choose to use a mechanical coin mechanism instead – please contact (J.E.T.) for the correct part number and mounting plate.
Page 12 Ensure that dispenser by angling the back into the napkin the coin mechanism is assembly so that the groove dispenser. securely attached. fits into the unit as shown Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 13: Glass Removal (Or) Servicing
CAUTION: TWO PEOPLE SHOULD BE PRSENT TO LIFT THE GLASS OFF OF THE CABINET The Intermission cabinet was designed so that operators could access all internal components without much difficulty. When servicing the inside playfield area, access should be gained primarily through the side access panels.
Page 14: Changing Menu Options & Setup
Changing Menu Options & Program Setup Information Intermission™ features a setup menu that allows operators the ability to quickly change program features. Access to this menu allows the operator to quickly setup the machine to the locations requirements or to modify various machine functions.
Page 15 Any new context selected by the operator will be retained unless changed or unless the p Example: 0010 is the context in the picture to the right. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 16 Pushing the "TEST" button while in the SETUP mode only increases the menu option. 9) Test Mode - t01 (Input) Allows the operator to test all inputs. Please refer to the Input chart. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 17 Push the SERVICE button to EXIT the TEST MODE and return to game play. The software version will then be displayed on the back board and the machine will restart. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 18: Changing Ticket Values Of Jetty, Kernel, & Peggy In Software
Changing Ticket Values of Jetty, Kernel, & Peggy in the Software Intermission™ features a setup menu that allows operators the ability to quickly change the ticket values for Jetty, Kernel, and Peggy. After the operator has replaced the ticket value stickers on each character pop-up - Open the front access door.
Page 19 Continue scrolling to F10. Make sure that F10 is displayed in the Tickets Owed SEG display. The context that is currently programmed will be shown on the Jackpot Bonus SEG display. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 20 Push the SERVICE button one final time for 3 Seconds to EXIT TEST mode and return to normal game operation. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 21: Normal Program Settings Chart
(Displays how many times Jackpot Bonus has been won) − Unit # (Displays The Unit # In a Linked Set) (Displays The Unit # In a Linked Set) Coin Payout (Unit W/ Coin Recycling System) 1-10 Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 22: Normal Program Settings Chart - Settings Definitions
Intermission Program Menu Descriptions F01 – This function is not used on the Intermission program and should be ignored. Please proceed through the F01 setting directly to F02. F02 – Points Added to Jackpot Bonus: This function controls the number of points that are added to the Jackpot Bonus feature each time a coin is deposited into the unit.
Page 23 F19 – Unit #: This function displays the unit number of the machine when linked to other units. Intermission™ can be linked up to 8 units. Each unit within a group must have a different number set through dip switch settings.
Page 24: Grand Jackpot Combo Bonus - Dip Switch Settings
Header Value − − − − − − (Progressive − − − − − − Feature) Note: All Dip Switches should be set to OFF if not being used. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 25: Linking Units Together - Individual Unit Dip Switch Settings
Linking Units Together – Dip Switch Settings Intermission was designed so that up to 8 units could be linked together for increased game play and competition. Units can be easily linked together using the parts supplied in the header installation kit. Note: This feature only works with the Grand Jackpot Combo Bonus Header which is sold separately.
Page 26: Returning To Factory Defaults
4. Push the micro “TEST” and “SERVICE” buttons at the same time. 5. Values will be reset to the factory defaults. NOTICE: All game parameters will return to the default factory setting programmed by J.E.T. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 27: Test Mode
Test Mode Intermission™ features a test mode to verify that certain components are functioning correctly. This feature can be utilized to narrowing down certain technical problems or diagnosing a defective part or component. NOTICE: DO NOT CHANGE ANY VALUES IN TEST MODE WITHOUT A COMPLETE UNDERSTANDING OF THE TEST MODE ITSELF AND ITS VARIOUS OPTIONS.
Page 28: Input Values
NOTICE: DO NOT CHANGE ANY VALUES IN TEST MODE WITHOUT A COMPLETE UNDERSTANDING OF THE TEST MODE ITSELF AND ITS VARIOUS OPTIONS. CONTACT J.E.T. OR YOUR LOCAL DISTRIBUTOR FOR ASSITANCE WITH THIS MODE. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 29: Output Values
Kernel LED (Right # 2) Red OUT29 SEG2_5 Kernel LED (Right # 2) Blue OUT30 SEG2_6 Peggy LED (Right # 3) Red OUT31 SEG2_7 Peggy LED (Right # 3) Blue OUT32 SEG2_8 Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 30 NOTICE: DO NOT CHANGE ANY VALUES IN TEST MODE WITHOUT A COMPLETE UNDERSTANDING OF THE TEST MODE ITSELF AND ITS VARIOUS OPTIONS. CONTACT J.E.T. OR YOUR LOCAL DISTRIBUTOR FOR ASSITANCE WITH THIS MODE. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 31 For Parts or Service contact your local Distributor or: Betson Enterprises 303 Paterson Plank Road Carlstadt, New Jersey Main Phone: (201) 438-1300 Toll Free Phone: (800) 524-2343 Part Phone: (800) 828-2048 Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 32 3) Check to make sure sensor works - Run an INPUT Test - If sensor is faulty - Replace. 4) If sensor checks OKAY - Make sure that the motor is plugged in and receiving power. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 33 4) Check electrical connectors to motor and ensure motor is receiving power. Run an AUTO TEST to determine to the motor is working correctly. 5) Check (or) replace the motor driver board. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 34 4) Check electrical connectors to motor and ensure motor is receiving power. Run an AUTO TEST to determine to the motor is working correctly. 5) Check (or) replace the motor driver board. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 35 5) Make sure that the ticket dispenser is plugged in. 6) Run a system test on the appropriate ticket dispenser in the "TEST" mode. 7) Replace ticket dispenser Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 36 (or) the working correctly. up and down motor driver board 2) Replace the motor driver board connected to the needs to be replaced. affected pop-up structure. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 37 Every 90 Days 3) Tighten all nuts on film frames. 4) Inspect and check all electrical connections. 5) Inspect and check both coin comparators and verify correct operation. Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 40 _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ _______________ ___________________________________________________ Intermission™ • Copyright 2009 • Jennison Entertainment Technologies • All Rights Reserved...
Page 41 WARRANTY WARRANTY WARRANTY Jennison Entertainment Technologies warrants that its products will be free from defects in material and workmanship for 90 days from the date of purchase. When placing a warranty request, please be prepared to provide the following information:...
