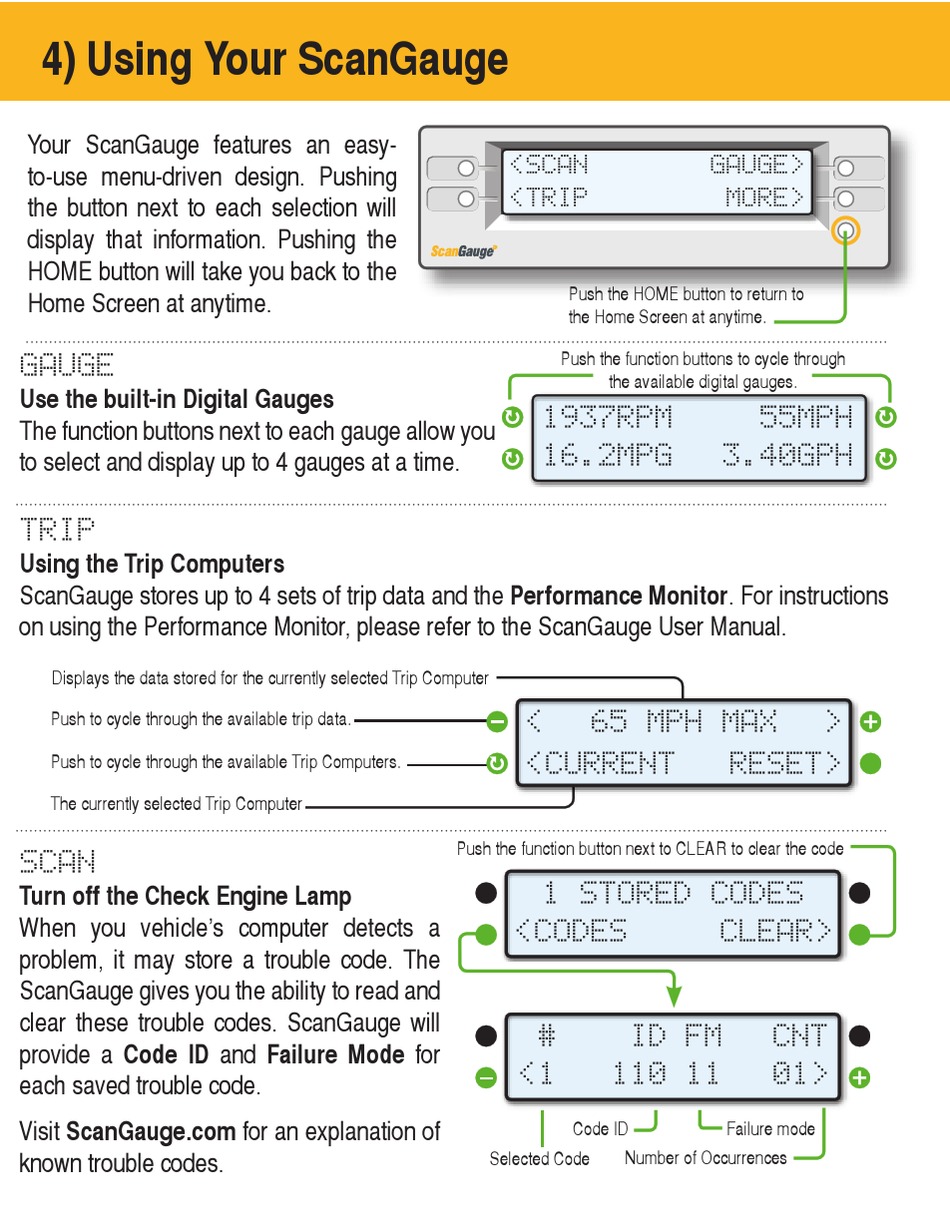

4) Using Your ScanGauge
Your ScanGauge features an easy-
to-use menu-driven design. Pushing
the button next to each selection will
display that information. Pushing the
HOME button will take you back to the
Home Screen at anytime.
GAUGE
Use the built-in Digital Gauges
The function buttons next to each gauge allow you
to select and display up to 4 gauges at a time.
TRIP
Using the Trip Computers
ScanGauge stores up to 4 sets of trip data and the Performance Monitor. For instructions
on using the Performance Monitor, please refer to the ScanGauge User Manual.
Displays the data stored for the currently selected Trip Computer
Push to cycle through the available trip data.
Push to cycle through the available Trip Computers.
The currently selected Trip Computer
SCAN
Turn off the Check Engine Lamp
When you vehicle's computer detects a
problem, it may store a trouble code. The
ScanGauge gives you the ability to read and
clear these trouble codes. ScanGauge will
provide a Code ID and Failure Mode for
each saved trouble code.
Visit ScanGauge.com for an explanation of
known trouble codes.
<SCAN
<TRIP
Push the HOME button to return to
the Home Screen at anytime.
Push the function buttons to cycle through
the available digital gauges.
1937RPM
16.2MPG
< 65 MPH MAX
<CURRENT
Push the function button next to CLEAR to clear the code
1 STORED CODES
<CODES
# ID
<1 110
Code ID
Number of Occurrences
Selected Code
GAUGE>
MORE>
55MPH
3.40GPH
>
RESET>
CLEAR>
FM CNT
11 01>
Failure mode
