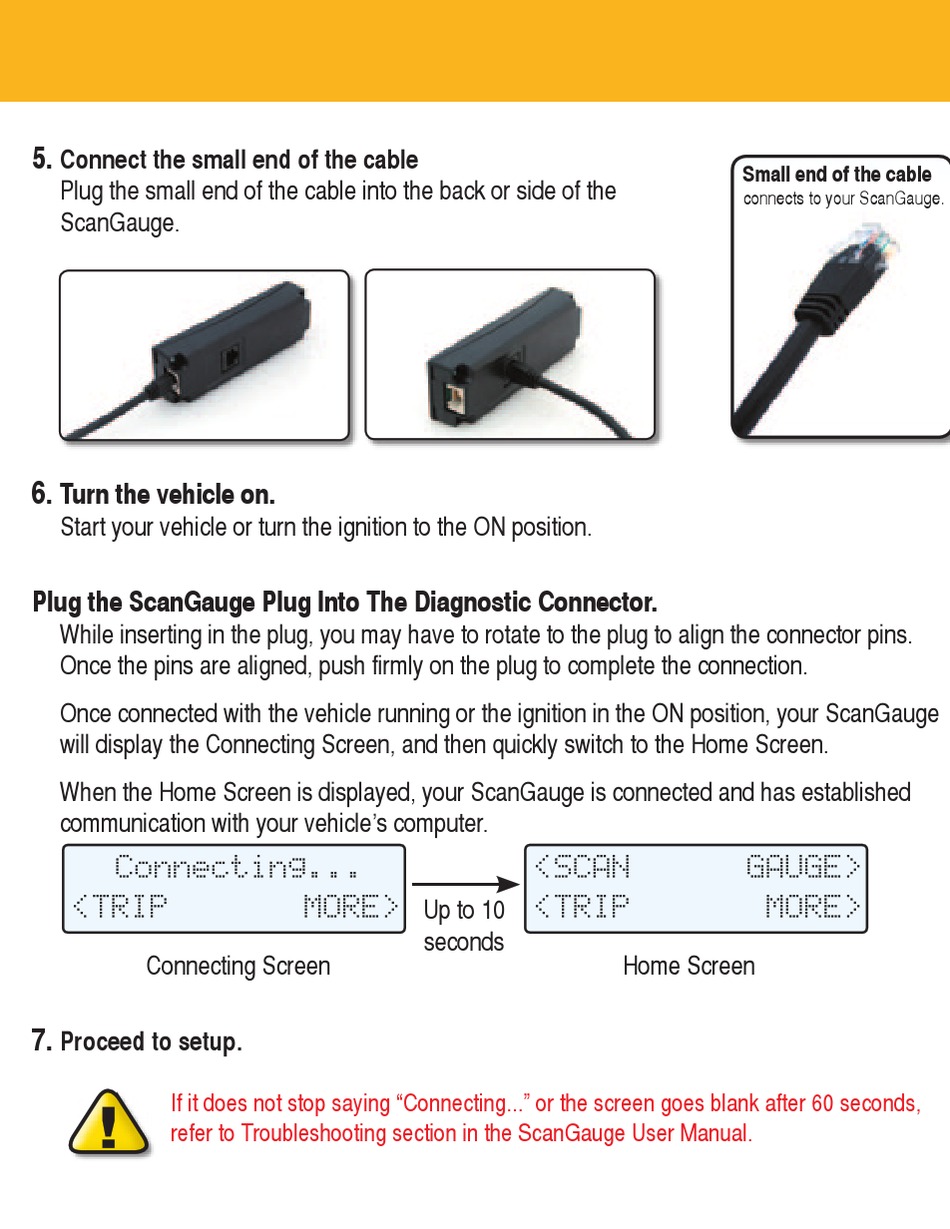

Linear Logic ScangaugeD Quick Start Manual page 3

5.
Connect the small end of the cable
Plug the small end of the cable into the back or side of the
ScanGauge.
6.
Turn the vehicle on.
Start your vehicle or turn the ignition to the ON position.
Plug the ScanGauge Plug Into The Diagnostic Connector.
While inserting in the plug, you may have to rotate to the plug to align the connector pins.
Once the pins are aligned, push firmly on the plug to complete the connection.
Once connected with the vehicle running or the ignition in the ON position, your ScanGauge
will display the Connecting Screen, and then quickly switch to the Home Screen.
When the Home Screen is displayed, your ScanGauge is connected and has established
communication with your vehicle's computer.
Connecting...
<TRIP
Connecting Screen
7.
Proceed to setup.
If it does not stop saying "Connecting..." or the screen goes blank after 60 seconds,
refer to Troubleshooting section in the ScanGauge User Manual.
MORE>
Up to 10
seconds
<SCAN
<TRIP
Home Screen
Small end of the cable
connects to your ScanGauge.
GAUGE>
MORE>
