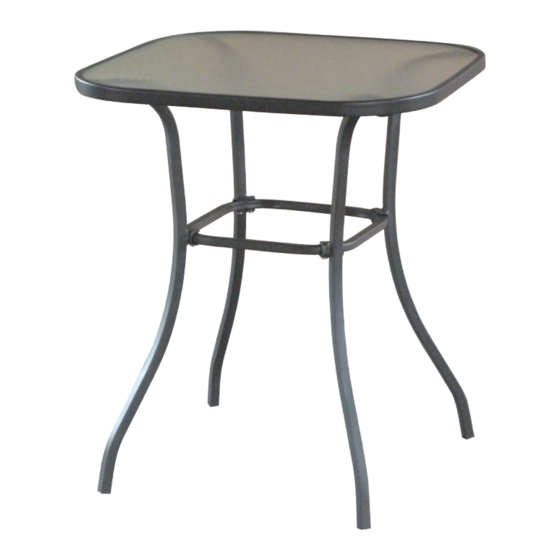

Courtyard Creations TGS23FG-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS23FG-CS01
2
TGS23FG-CS02
3
62TGS23FGY101
4
17C17A0403001Y4
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #8)
Step 1:
Place the table top (#1) onto a non-abrasive
surface, such as a carpet, with its underside facing
up. Insert the legs (#2) into the plastic holders on
the table top (#1) rim. Fasten them together by
using screws (#4). See Figure 1.
! Do not sit or stand on this table.
Do not discard any of the packaging until you have checked that you have all the parts and pack
!
of fittings.
Keep children away during assembly. This item contains small parts which can be swallowed by
!
children. Children should always be under direct adult supervision while using the product.
Retain the assembly instructions for future reference.
!
Please quote following FQC NO. when contacting service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS23FG
PART Q'TY
TABLE TOP
LEG
CENTER CONNECTOR
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
-WM
PART
MATERIAL CODE
NO.
1 5
17C01A0706002Y4
4 6
17FA05040301-Y4
1 7
1800337002
4 8
17KAA0201----Y4
FIGURE 1
2
PART
BOLT M6*16
WASHER d6.5*D13*1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
2
2
2
1
COURTYARD CREATIONS INC.
Q'TY
8
8
8
1
2
1
4
