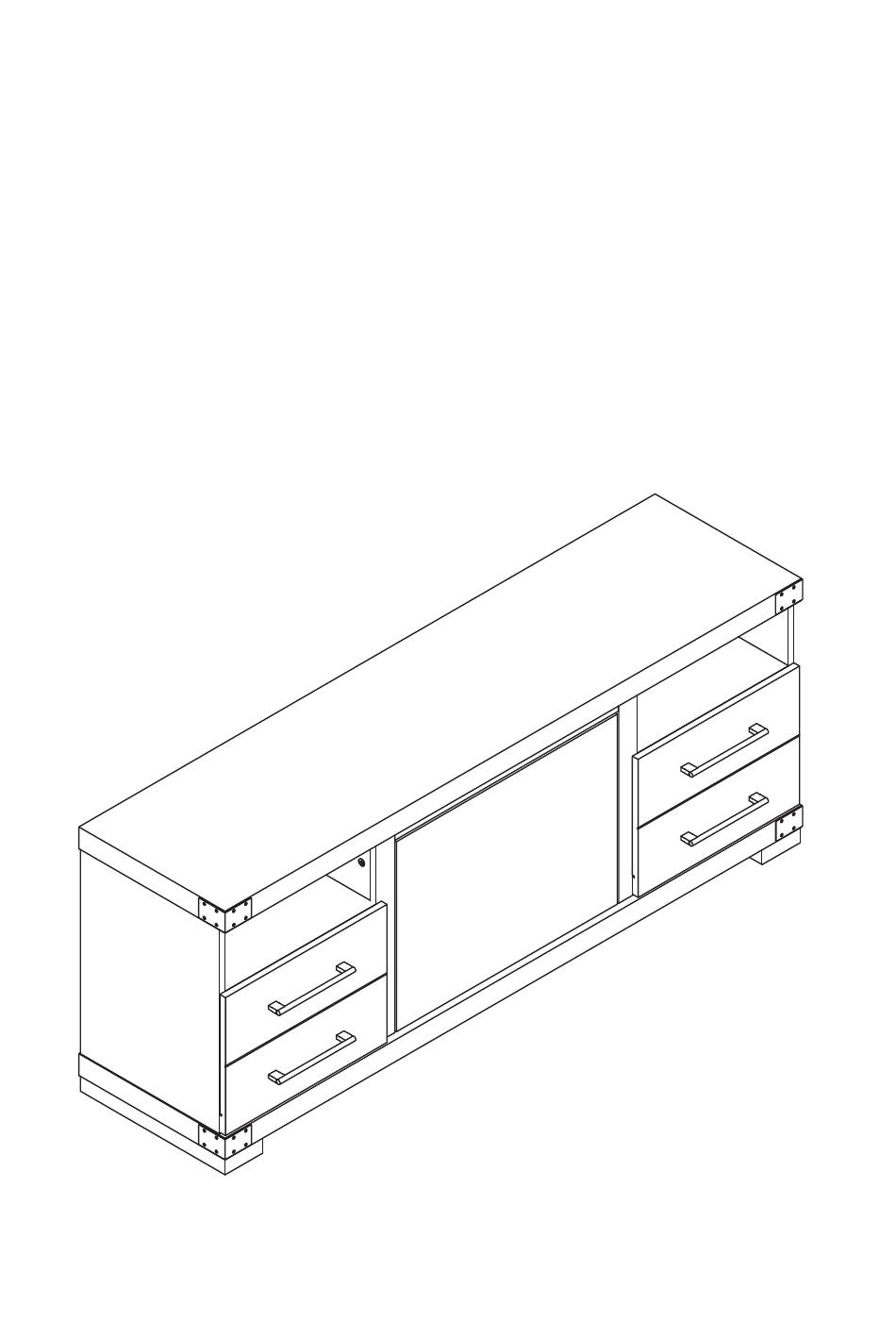

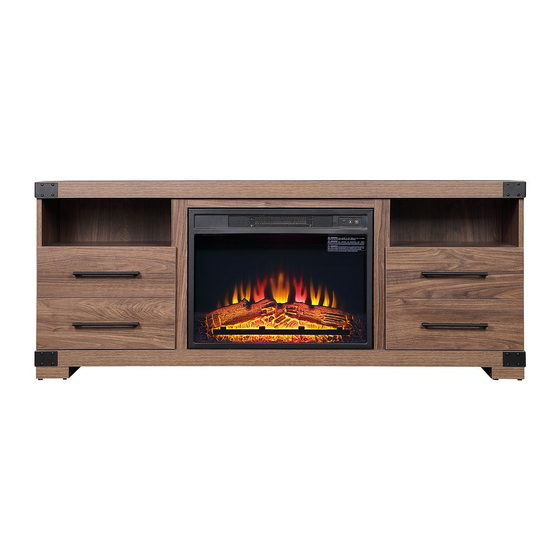

- Page 1 FIREPLACE TV STAND...
- Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-24 Hammer Not actual size Page 2...
-
Page 3: Part Identification
Now you know Part Identifi cation our ABCs. ◆ While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. TOP (1) LEFT MOLDING (1) BOTTOM (1) -
Page 4: Hardware Identification
Hardware Identifi cation ◆ Screws are shown actual size. You may receive extra hardware with your unit. EXTENSION RAIL- 4 EXTENSION SLIDE- 4 CAM SCREW -32 PULL - 4 WOOD DOWEL-8 HIDDEN CAM - 32 APPLIQUE CARD- 6 2-11/16" PAN HEAD SCREW-12 2"... - Page 5 HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or the surface of the part. Cam Screws Cam Dowel Push a HIDDEN CAM into the part.
- Page 6 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the floor. Turn thirty-two CAM SCREWS (3) into the TOP (A), ENDS (C and D), UPRIGHTS (E and F), MOLDINGS ◆...
- Page 7 Step 2 Push sixteen HIDDEN CAMS (4) into the ENDS (C and D), ◆ UPRIGHTS (E and F), BACKS (G). Arrow Arrow Arrow Arrow Hole The arrow in the HIDDEN CAM must point toward the Page 7...
- Page 8 Step 3 Push sixteen HIDDEN CAMS (4) into the DRAWER LEFT ◆ (O), DRAWER RIGHT (P) and SHELVES (H). Arrow Arrow Arrow Page 8...
- Page 9 Step 4 Fasten the MOLDINGS (K and L) to the UPRIGHTS (E ◆ and F). Tighten four HIDDEN CAMS. Page 9...
- Page 10 Step 5 Separate the WIDE EXTENSION SLIDES (2) from the WIDE EXTENSION RAILS (1) as shown in the upper diagram ◆ below. Be prepared, the parts are greasy. Fasten the WIDE EXTENSION RAILS (1) to the UPRIGHTS (E and F) and ENDS (C and D). Use four 1/2" FLAT ◆...
- Page 11 Step 6 Fasten the SHELVES (H) to the UPRIGHTS (E ◆ and F) and ENDS (C and D). Tighten eight HIDDEN CAMS. Page 11...
- Page 12 Step 7 Fasten the TOP MOLDING (J) to the TOP (A). Use three BLACK 2'' PAN HEAD SCREWS through ◆ the MOLDING and align to the holes in the top before you fasten. 2" PAN HEAD SCREW (3 used in this step) Page 12...
- Page 13 Step 8 Push the WOOD DOWELS (6) into the exact hole shown in ◆ the TOP (A). Fasten the ENDS (C and D) and the UPRIGHTS (E and F) to the ◆ TOP (A). Tighten eight HIDDEN CAMS. WOOD DOWEL (4 used in this step) Page 13...
- Page 14 Step 9 ◆ Fasten the BACKS (G) to the TOP (A). Tighten four HIDDEN CAMS. Page 14...
- Page 15 Step 10 Push the WOOD DOWELS (6) into the exact hole shown in ◆ the ENDS (C and D) and the UPRIGHTS (E and F). Fasten the BOTTOM (B) to the ENDS (C and D), UPRIGHTS (E and F) and the BACKS(G). ◆...
- Page 16 Step 11 Fasten the FOOT (S) to the BOTTOMS (B). Use eight BLACK 2'' PAN HEAD SCREWS through ◆ the FOOT and align to the holes in the bottom before you fasten. 2" PAN HEAD SCREW (8 used in this step) Page 16...
- Page 17 Step 12 Fasten the DRAWER SIDES (O and P) to the DRAWER BACK (Q). Use four 1-3/16'' PAN HEAD SCREWS through the DRAWER SIDES ◆ and please align to the holes in the DRAWER BACK before you fasten. Repeat this step for the other drawer. ◆...
- Page 18 Step 13 Slide the DRAWER BOTTOM (R) into the grooves in the DRAWER SIDES (O and P) and ◆ DRAWER BACK (Q). Repeat this step for the other drawer. ◆ Peel APPLIQUES from the APPLIQUE CARDS (11) and stick them onto each visible HIDDEN CAM. ◆...
- Page 19 Step 14 Fasten the DRAWER FRONT (N) to the DRAWER ◆ SIDES (O and P). Tighten four HIDDEN CAMS. Fasten the PULLS (5) to the DRAWER FRONT (N). ◆ Use four 3/4" MACHINE SCREWS (11). Repeat this step for the other drawer. ◆...
- Page 20 Step 15 Fasten the WIDE EXTENSION SLIDES (2) to the DRAWER SIDES (O and P). Use four 1/2" FLAT HEAD ◆ SCREWS (9). Repeat this step for the other drawer. ◆ 1/2" FIAT HEAD SCREW (8 used in this step) Page 20...
- Page 21 Step 16 To insert the FILE DRAWER into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION ◆ RAILS on the unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier. ◆...
- Page 22 Step 17 Please go to step 18 if you want to put the middle shelf (Z) as show in ◆ diagram #1 or go to step 20 if you want to put the insert as show in diagram #2. Ｄiagram #1 Ｄiagram #2 Page 22...
- Page 23 Step 18 Insert the METAL PINS (13) into the hole locations of your ◆ choice in the UPRIGHTS (F and E). Set the ADJUSTABLE SHELF (Z) onto the METAL PINS. ◆ METAL PIN (4 used in this step) Page 23...
- Page 24 Step 19 Peel APPLIQUES from the APPLIQUE CARDS (7) and stick them onto each visible HIDDEN CAM. ◆ This completes assembly. Clean with a damp cloth. Wipe dry. Apply the WARNING LABEL (14) to the TOP (A). You should be able to read the label when the TV is removed from the ◆...
- Page 25 Step 20 Fasten the BRACKETS (X and Y) to the FIREPLACE (W). Use four 3/8" FLAT HEAD ◆ SCREWS (9). WARNING CAUTION!! Please read all FIREPLACE instructions prior to installing or removing it from your unit. Do not plug the FIREPLACE into the power supply until it is installed and your unit is in its 3/8"...
- Page 26 Step 21 Insert the FIREPLACE (W) in through the opening in the ◆ back of your unit. Fasten the FIREPLACE (W) to the MOLDINGS (J, K and L). ◆ Use two BLACK 3/8" PAN HEAD SCREWS (ZZ) through the BRACKETS on the FIREPLACE and ◆...
- Page 27 Step 22 Peel APPLIQUES from the APPLIQUE CARDS (7) and stick them onto each visible HIDDEN CAM. ◆ This completes assembly. Clean with a damp cloth. Wipe dry. Apply the WARNING LABEL (14) to the TOP (A). You should be able to read the label when the TV is removed from the ◆...
